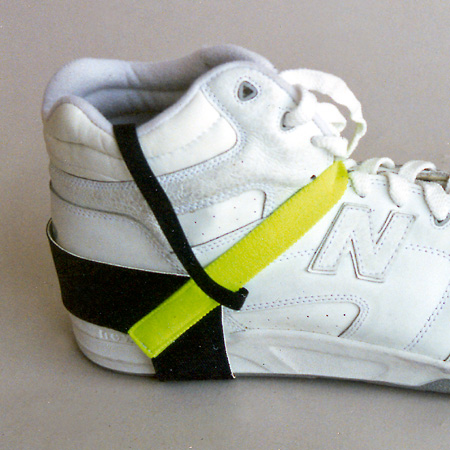

Elastic Hook and Loop Enclosure Heel Grounder

FG-7020
Elastic Hook and Loop Enclosure Heel Grounder

Data Sheet Page 1
Data Sheet Page 2
Heel grounders are specially designed to provide a continuous ground path between the user and a properly grounded ESD safe floor. Our heel grounders are designed to drain the static charge of a user that is built up during normal activity. They offer instant static dissipation for rapid protection.

Job functions which require worker mobility should use heel grounders. Failure to wear a heel grounder risks potential damage to the equipment which the user operates and the component parts they contact.

All Ohm-Stat heel grounders can be adjusted to fit the user. The Ohm-Stat Heel Grounder line has four unique styles to fit a wide variety of men's and women's shoes, boots, safety shoes, loafers, tennis shoes, and running shoes. They are easy cleaned with mild detergent and water.

To assure that a continuous path to ground is maintained, the user should wear heel grounders on both feet. A heel grounder should be used on a floor surface with a resistivity of less than 1010 Ohms/sq.

Heel Grounders can be custom ordered with the following:

  • Larger cup sizes to fit "cross trainer" style shoes
  • Longer length tabbing for boot styles (cowboy, etc.)
  • Customized colors
  • Private label and design

Features:

  • ECONOMY Heel Grounder
  • Elastic Hook and loop, 2 layer with 1 megohm resistor
  • Price Sensitive
  • Reliable

Specifications:

  • Heel Cup: .060" (1.5mm) thick 1-3/8" wide dual elastomer with non-smudging interior and black (non smudging where noted) exterior
  • Heel Cup Resistivity: 103-105 Ohms/sq.
  • Resistor: One megohm value ¼ watt (+/-10%) carbon film resistor
  • Tab: Blue (or customized) 3/8" wide fray resistant polyester tab with conductive carbon stuffed fibers
  • Tab to Cup Resistance: 1x106 ohms - 1x107
  |  Print page



Order Now Part Number Description Price
USD
FG-7020 FOOTGROUNDER, elastic velcro fastening, 1 meg, 2 layer cup
Qty1 +
Price$6.25
