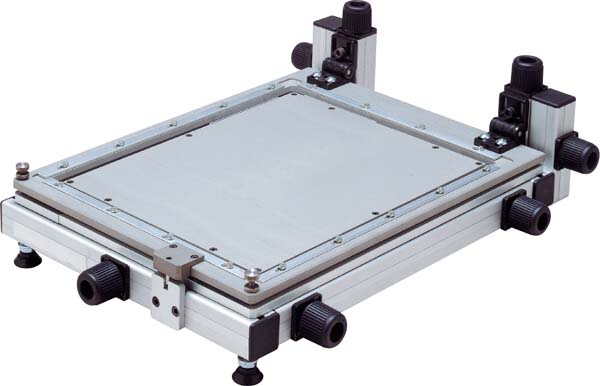

X-PRINT305 Stencil Printer
This manual stencil printer is the low-cost solution for manual solder-paste deposition during assembly process. Solid and sturdy construction assures stability during paste printing. Alignment knobs are large and easy to operate.
Features
- HIGH QUALITY AND PRECISION PRINTING
- The user can align the position of pads on a PCB and corresponding pattern on the stencil easily and with high accuracy.
- SOLID ALUMINUM BODY
- Solid aluminum body assures long-term use and protects against frame deformation caused by mechanical shock.
- QUICK AND EASY STENCIL CHANGE
- The stencil can be changed quickly when replacement is needed for paste application on another PCB.
- MANAGEMENT
- Spare frames are easy to store and allow quick set-up of production run.
Note: Stencil itself is frameless (stencil is not supplied with the printer). To make a frameless stencil please contact local stencil manufacturer. The manufacturer will need the stencil's mounting holes dimensions and overall size (see X-PRINT manual) and the gerber file of your board(s) to make your stencil.
 (Certificate for free stencil included) |
|
Technical Specifications
| Base adjustment (x, y axis) | 5 mm ( .2”) |
| Base adjustment (z axis) | 5 mm ( .2”) |
| Theta base adjustment | 2° |
| Adjustments Accuracy | 0,03 mm (.001”) |
| Dimensions |
23” x 19” x 7.8” (584x483x200 mm) |
| Max working area | 305x381 mm (12” x 15”) |
| Weight | 28 kg (63 lbs.) |
| Shipping package weight | 35 kg (77 lbs.) |
| Stencil itself is frameless (stencil is not supplied with the printer) | |
Optional Accessories
- XPR305FR Spare frame with stencil mounting hardware
- X-RAK305 Replacement squeegee
- XS-StencilCleaner Stencil cleaner
 |
Part Number | Description | Price USD |
||||
|---|---|---|---|---|---|---|---|
| Stencil Printer | |||||||
| X-PRINT305 | Frameless Stencil Printer 12" x 15". Highest quality. German materials and American workmanship. Purchase for life. |
|
|||||
| Optional Equipment | |||||||
| XPR-305 FR | Spare Frame for X-PRINT305 |
|
|||||
| X-RAK305 | Squeegee, 305 mm (12 inch) Durometer 80 <...more info |
|
|||||
| XS-StencilCleaner | Semi Aqueous Cleaner for Rosin, No Clean and Water Soluble Pastes (1/2 quart) |
|
|||||
| XS-StencilCleaner-500ml | Semi Aqueous Cleaner for Rosin, No Clean and Water Soluble Pastes <...more info |
|
|||||
