Antistatic Wheels

Zero Charge™ Adjustable Wrist Straps
Adjustable Elastic Wrist Straps With Quality Ground Cords

Fully adjustable, wrist bands are popular for their proven reliability. Crocheted cloth strap construction with conductive monofilaments on top of non-conductive inner surface, providing significantly improved skin contact. It is a comfortable way to prevent static built-up on personnel.

Standard 4mm snap with a 1 megohm resistor in coil cord. Made and tested to IEC 61340-5 and ANSI/ESD S20.20 standards. Color: Blue. Includes 6 foot (1,8 m) or 12 foot (3,6 m) coil cord with a rotating banana jack to prevent cord twisting and an alligator clip or 10mm snap.Model AML-100H/10 has 10mm snap in place of banana plug

  • 4mm solid stainless steel wrist band stud
  • Standard 4mm snap with a 1 megohm resistor in coil cord.
  • 6 foot (1,8 m) or 12 foot (3,6 m) coil cord with a rotating banana jack to prevent cord twisting and an alligator clip or 10mm snap.
  • Made and tested to IEC 61340-5 and ANSI/ESD S20.20 standards.
  • One-year warranty.

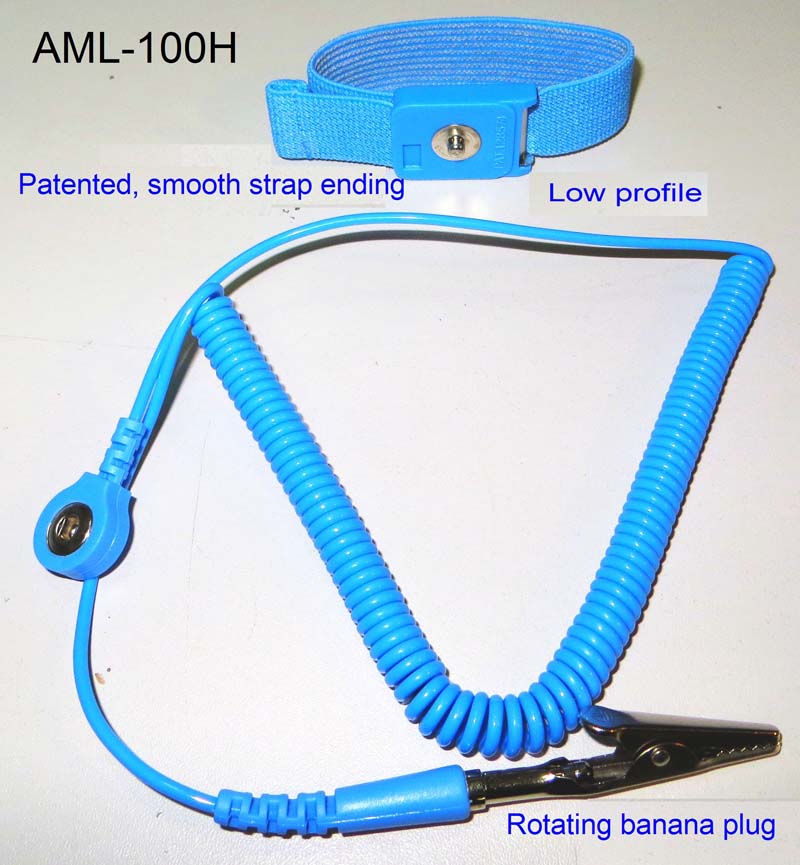

AML-100H
AML-100H
Part Number Description
AML-100H Adjustable wrist strap (4mm stud, color blue) with coil cord (length 6ft, color blue, 4mm snap - rotating banana jack to prevent cord twisting and an alligator clip)
AML-100H-12 Adjustable wrist strap (4mm stud, color blue) with coil cord (length 12ft, color blue, 4mm snap - rotating banana jack to prevent cord twisting and an alligator clip)
AML-100H/10 Adjustable wrist strap (4mm stud, color blue) with coil cord (length 6ft, color blue, 4mm snap - 10 mm snap)
AML-100H/10-12 Adjustable wrist strap (4mm stud, color blue) with coil cord (length 12ft, color blue, 4mm snap - 10 mm snap)
AML-101

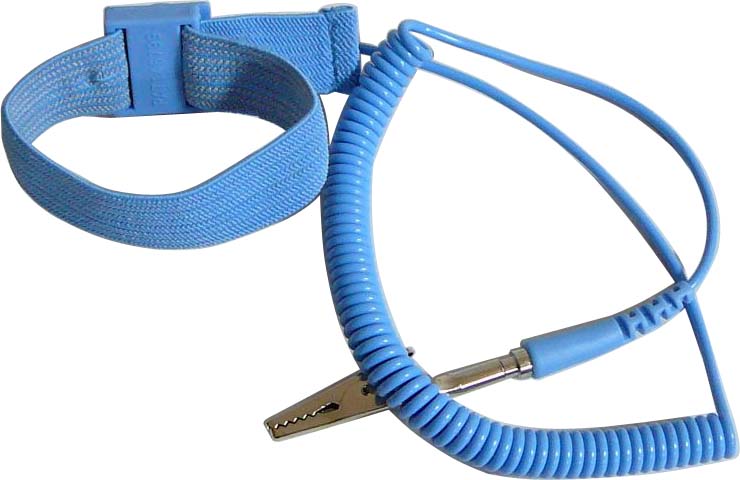

AML-101A
Part Number Description
AML-101A Adjustable wrist strap, 4mm snap, blue, 6' coil cord, alligator clip. No metal backing - Anti-allergic

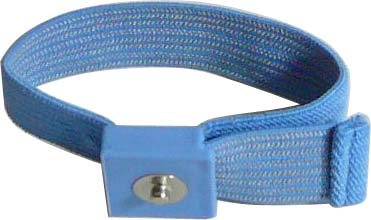

AML-101B
Part Number Description
AML-101B Anti-allergic wrist strap, 4mm snap, blue. Band only (without coil cord)
A1COM-B
A1COM-B
Part Number Description
A1COM-B Adjustable wrist strap (4mm stud, color maroon) with coil cord (length 6ft, color black, 4mm snap - rotating banana jack to prevent cord twisting and an alligator clip)

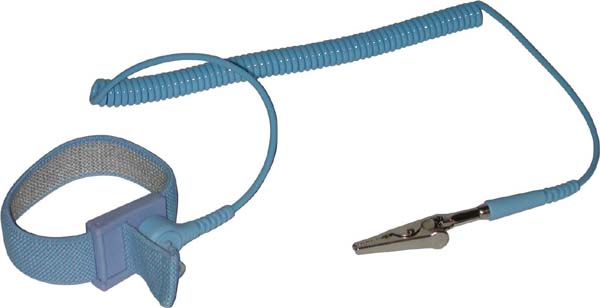

ASI-10
ASI-10
Part Number Description
ASI-10 Adjustable wrist strap (4mm stud, color blue) with coil cord (length 6ft, color blue, 4mm snap - rotating banana jack to prevent cord twisting and an alligator clip)
ASI-10-12 Adjustable wrist strap (4mm stud, color blue) with coil cord (length 12ft, color blue, 4mm snap - rotating banana jack to prevent cord twisting and an alligator clip)
ASI-10/10 Adjustable wrist strap (4mm stud, color blue) with coil cord (length 6ft, color blue, 4mm snap - 10 mm snap)
ASI-10/10-12 Adjustable wrist strap (4mm stud, color blue) with coil cord (length 12ft, color blue, 4mm snap - 10 mm snap)

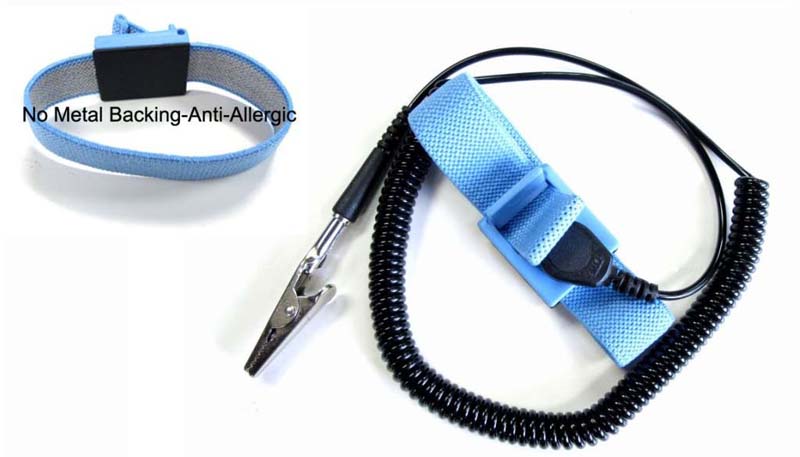

ASI-20A
ASI-20A

Adjustable wrist strap, 4mm snap, blue, 6' black coil cord, alligator clip. No metal backing - Anti-allergic

SPECIFICATIONS:

Material Elastic Nylon with conductive plated threads
Width 19mm
Decay Time Resistivity Less than 0.05 sec <1.0x106 +/- 5%
Elasticity Expansion ratio 1.5:1
Snap/Size 4 mm post snap for ground cord
Color Light Blue
Meets or exceeds DOD-HDBK-263, DOD-STD-1686, EOS/ESD Std. No. 1-1987, EN10015/1
Coil Cord
Resistor One meg ohm (±10%) resistor molded into snap connection
Ground Connection Rotating banana plug
Warranty Warranted for One Year against mechanical and electrical defects.
Cord Extension Full extension greater than 13 feet; Working Length greater than 10 feet.

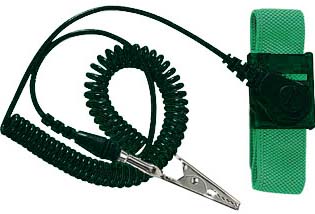

ASI-1G
ASI-1G Adjustable Wrist Strap with 4mm snap, Green, with 6' (1m80cm) coiled cord black - 4mm to banana plug.

Standard 4mm snap with a 1 megohm resistor in coil cord. Made and tested to IEC 61340-5 and ANSI/ESD S20.20 standards. Includes 10 foot (3 m) coil cord with a rotating banana jack to prevent cord twisting, and an alligator clip.

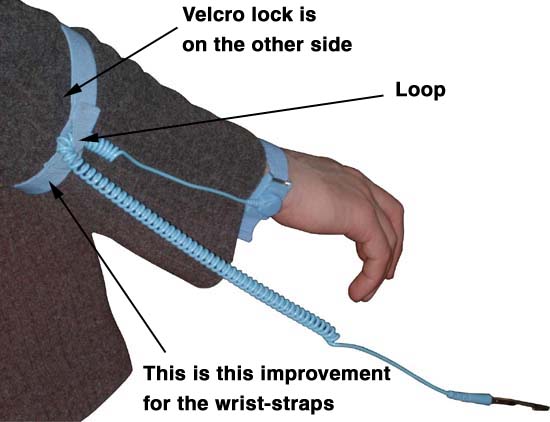

Adjustable wrist strap with cord support band
Patent pending
AML-Smart - AML Smart and Comfortable Wrist Strap Set.
AML-Smart - Smart and Comfortable Wrist Strap Set

Benefits and features of the elastic support band:

  • Increased comfort when wearing wrist straps
  • Ease of reaching over the work bench without worry that the coil cord will touch, move or flip-over objects on the bench
  • Lower resistance of the employees to wearing wrist straps due to improved mobility

The set Includes:

  • AML-100H - Adjustable wrist strap (4mm stud, color blue) with coil cord (length 6ft, color blue, 4mm snap - rotating banana jack to prevent cord twisting and an alligator clip)
  • AML-B - Elastic ESD safe support band
Adjustable Metal Wrist Bands

Expansion Links Provide Custom Fit

Metal wrist bands' patented linking system allows easy strap adjustment to fit any wrist size. Unique band comes in 130mm length and is easily enlarged using one or more of the five included 10mm nylon expansion links. Metal parts are made of jewelry-quality stainless steel. Super-durable bands are coated with polyurethane-baked epoxy.

Extremely comfortable custom fit eliminates the need to stock bands of various sizes. Each wrist strap includes 6' coil wire cord.

ABB-AM6
Adjustable slim metal wrist strap, 4mm snap, black, coil cord 6ft
AMS-AM6 AMS-AM6
Adjustable wrist strap, deluxe, 4mm snap, blue, coil cord 6ft

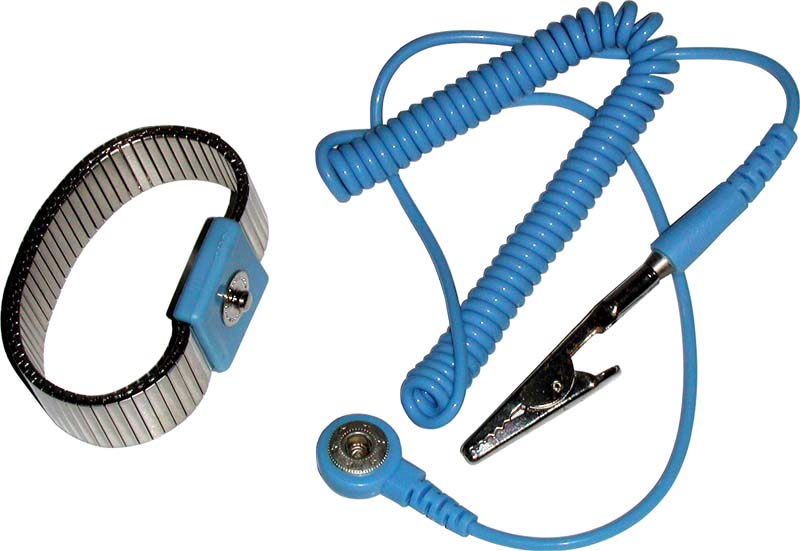

AM-201 AM-201
Metal wrist strap, 4mm snap, black, coil cord 6ft

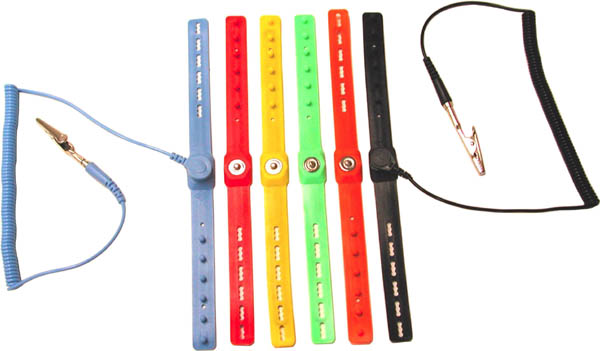

Low Cost Silicon Wrist Straps
Low Cost Silicon Wrist Straps AMS Series

Features:

  • Conforms to EN 100015 and other EOS/ESD Standards
  • Small
  • Lightweight and comfortable
  • Good body contact and non allergic
  • 4mm snap, 1 Mohm resistor
  • Supplied complete with a 6' coil cord (with a rotating banana jack to prevent cord twisting) and an alligator clip or 10 mm snap
  • Low cost solution to ESD problems
Part Number Snap size Strap Color Wire Color Coil Cord
AMS-1 4mm Black Black 4mm snap - banana jack
AMS-1/10 4mm Black Black 4mm snap - 10mm snap
AMS-2 4mm Orange Black 4mm snap - banana jack
AMS-2/10 4mm Orange Black 4mm snap - 10mm snap
AMS-3 4mm Red Black 4mm snap - banana jack
AMS-3/10 4mm Red Black 4mm snap - 10mm snap
AMS-4 4mm Yellow Black 4mm snap - banana jack
AMS-4/10 4mm Yellow Black 4mm snap - 10mm snap
AMS-5 4mm Green Black 4mm snap - banana jack
AMS-5/10 4mm Green Black 4mm snap - 10mm snap
AMS-6 4mm Blue Blue 4mm snap - banana jack
AMS-6/10 4mm Blue Blue 4mm snap - 10mm snap
  |  Print page



Order Now Part Number Description Price
USD
Metal Wrist Bands
ABB-AM6 Adjustable slim metal wrist strap, 4 mm snap, black, 6ft cord
Qty1 +
Price$14.90
AM-201 Adjustable metal wrist strap, 4 mm snap, Blue, coil cord 6ft, bannana plug
Qty1 - 4950 +
Price$8.90$7.95
AMS-AM6 De-Lux, Metal adjustable 4 mm snap, blue, 6' coil cord, banana + clip
Qty1 +
Price$14.90
CHW 09085 Adjustable Expansion Wrist Strap
Qty1 +
Price$15.90
CHW 09085 _Sale Adjustable Expansion Wrist Strap
Qty1 +
Price$15.90
WS-1037 WRISTSTRAP,metal expan., plastic encapsulated,4-10mm, 10' cord,
Qty1 +
Price$22.84
Silicon Wrist Straps
AMS-1 Black Wrist Straps, 4mm snap, coil cord 6ft, black with banana jack
Qty1 +
Price$3.19
AMS-1/10 Black Wrist Strap, 4mm snap, coil cord 6ft, black, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.39
AMS-2 Orange Wrist Strap, 4mm snap, coil cord 6ft, black with banana jack
Qty1 +
Price$3.19
AMS-2/10 Orange Wrist Strap, 4mm snap, coil cord 6ft, black, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.39
AMS-2/10-2.4 Orange Wrist Strap, 4mm snap, coil cord 8ft, black, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.99
AMS-3 Red Wrist Strap, 4mm snap, coil cord 6ft, black with banana jack
Qty1 +
Price$3.19
AMS-3/10 Red Wrist Strap, 4mm snap, coil cord 6ft, black, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.39
AMS-4 Yellow Wrist Strap, 4mm snap, coil cord 6ft, black with banana jack
Qty1 +
Price$3.19
AMS-4/10 Yellow Wrist Strap, 4mm snap, coil cord 6ft, black, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.39
AMS-5 Green Wrist Strap, 4mm snap, coil cord 6ft, black with banana jack
Qty1 +
Price$3.19
AMS-5/10 Green Wrist Strap, 4mm snap, coil cord 6ft, black, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.39
AMS-6 Blue Wrist Strap, 4mm snap, coil cord 6ft, blue with banana jack
Qty1 +
Price$3.19
AMS-6/10 Blue Wrist Strap, 4mm snap, coil cord 6ft, blue, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.39
AMS-6/10-2.4 Blue Wrist Strap, 4mm snap, coil cord 8ft, black, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.69
AMS-6/10-2.4Bl Blue Wrist Strap, 4mm snap, coil cord 8ft, blue, with 10 mm snap connection to the ESD Ground
Qty1 +
Price$3.79
