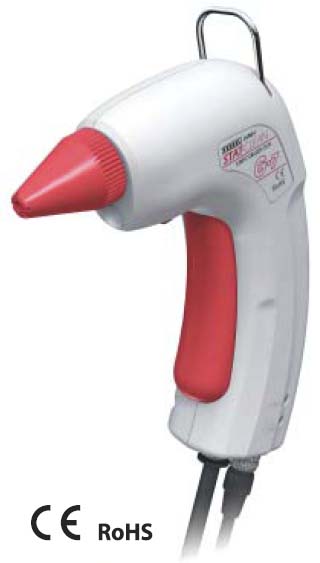

STATIC ERASER, Gun type
STAT·CLEAN G7
STATIC ELIMINATION ION / BEAM GUN
LIGHT WEIGHT
with LIGHT BEAM
with LIGHT BEAM
High Power Ion Blow !
Unique Extra Advantage
Simultaneous Brushing / Blowing in most efficiency
Check the small points with LED Beam Light.
To connect with the Tube for Nallow and Limited Ion Blowing.
Easy Handling Design for Better Solution!
- Ergonomic Handle(Grip Angle and Hand Glove Fitting.)
- Could see the dust with the light LED Beam.
- Resin Made Main Body, compact and Light weight.
- Quick Connecting with 6mm dia Tube Air Inlet.
- 150,000 cycle tested Robotic Cable adopted.
Exclusive Design for the Safety and Easy Maintenance !
- Safe Design with Power Transformer built-in.
- Quick Change of Discharge Needle for Easy Cleaning.
- Warning Lamp lighted when Irregularity happened.
- Low Noise disturbance won't affect any other electronic devices with surge function installed.
- High Voltage Output area has the function of anti Short Break immediate after overloaded.
Technical Specification
| INPUT VOLTAGE | DC24V ± 5% |
| POWER CONSUMPTION | 74mA (typ.) (Lighting up state) |
| PERFORMANCE | Refer to the following |
| ION BALANCE | Within ±10V (Test value : at 0.3MPa and 150mm) |
| AIR PRESSURE | 0.1~0.6MPa |
| DIMENSIONS | W105×H150×D36mm (Standard Nozzle Mounted) |
| WEIGHT | 198g |
| POWER LED | Green Ø3×2 |
| H.V. ALARM LED | Red Ø3×2 |
| LIGHT | LED Ø5 |
| MATERIAL | Casing,Trigger,Light Switch: ABS (Heat-resistant) Needle Pole: Tungsten Nozzle, Support Material: ABS (with glass fiber) |
| WORKING TEMPERATURE RANGE | 5 ~ +35 °C / 35~65%RH (NO DEWING) |
| WORKING HUMIDITY RANGE | 0 ~ +60 °C / 35~85%RH (NO DEWING) |
| TRANSFORMER | RATED INPUT VOLTAGE (AC100~240V (50~60Hz) 0.4V RATED OUTPUT VOLTAGE: DC24V 0.75A |
| ROBOTIC CABLE | (AC Adapter): DC INPUT CABLE： 2.5m AD24-ITC : AC OUTPUT CABLE： 1.8m |
Spare parts
| Part Number | Description | |
|---|---|---|
 |

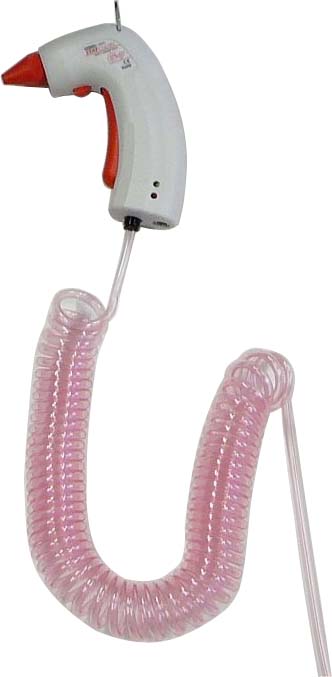

AL-15-G7 | Compressed Air Flex Line, 6mm OD / 4mm ID, Working lenghts 15' (~4.5m) |
 |
XMF-110 | Micro Filter, 90-130 microns/120psi |
 |
Part Number | Description | Price USD |
||||
|---|---|---|---|---|---|---|---|
| G7R-E | Static Elimination Ion / Beam Gun. Made in Japan. |
|
|||||
| AL-15-G7 | Compressed Air Flex Line, 6mm OD / 4mm ID, Working lenghts 15' (~4.5m) |
|
|||||
| XMF-110 | Micro Filter, 90-130 microns/120psi |
|
|||||
| XMF-110 /5 | Micro Filter, 90-130 microns/120psi (pack 5 pcs) |
|
