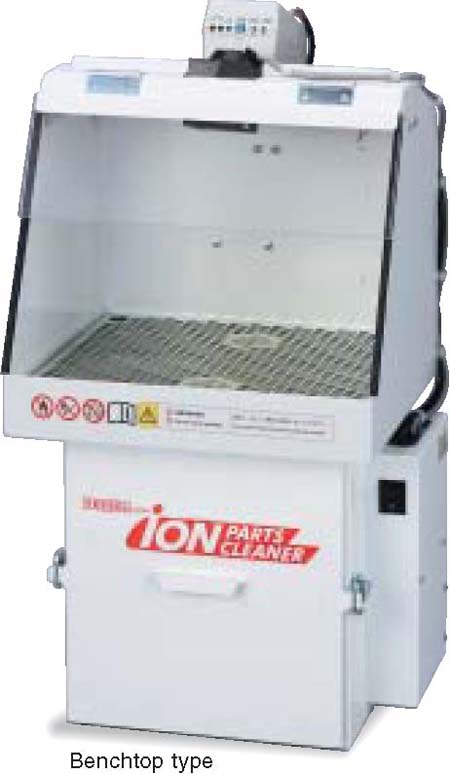

STAT·CLEAN IPC20-E
Small desktop type for cell-production units
New-Compact
Cleans work pieces with ions and collects dust forcibly by using the dust collector.


In normal air blow, static electricity is generated between air and the tray because of friction. This static electricity prevents dust removal. The charged foreign matter adheres to other parts, which may lead to re-contamination or secondary contamination.

Features

  • The compact integral unit is ideal for cell production or cramped places.
  • A photoelectric sensor controls the air blower making it possible to operate with one hand, whereby boosting efficiency.
  • The air blow time can be adjusted between 0.5 and 5 seconds. (Initial setting is 3 seconds.)
  • Hood opening: W330×H150mm (W330×H240mm: when the sectional acrylic window is open)
  • Installed with a small powerful ionizer (static electricity eraser) with mini fan type, SDJ-08.

The IPC20-E exhausts foreign matter through a pin spot nozzle in the static electricity removal space. The exhausted foreign matter is collected by a small dust collector so that you can keep your workplace clean.

Enforce and complete procedure for perfect static elimination and dust-off by absorbing air and ion blowing in the system of this Ion Purifying Control Equipment.

Applications

Ion-cleansing of products (removing static electricity and dust), Removal of static electricity and dust before silk-screening, Cleansing of circuit boards, Removal/attachment of liquid crystal film, Removal of static electricity and dust from resin-made products, The final ionizing and dusting off before the packing process.

Technical Specification

INPUT VOLTAGE Single-phase AC100V (50/60Hz)
POWER CONSUMPTION 70 W (50Hz) / 75 W (60Hz)
CURRENT CONSUMPTION 0.42 A (50Hz) / 0.4 A (60Hz)
DUST COLLECTION METHOD Cylindrical Cartridge Filter
DUST COLLECTION AIRFLOW 1.6m3/min (50Hz) / 2.0 m3/min (60Hz)
STATIC PRESSURE 0.35kPa (50Hz) / 0.50kPa (60Hz)
TABLE SURFACE
CONTROLLED AIR SPEED
0.8m/sec (50Hz) / 1.0m/sec (60Hz)
DUST COLLECTION CAPACITY 0.5 L
DUST COLLECTOR OUTPUT 50 W
AIR PRESSURE 0.4~0.7MPa (Use clean air)
AIR HOSE Ø6 × Ø4mm
WORKING TEMPERATURE RANGE 0 ~ +40 °C
WORKING HUMIDITY RANGE 20 ~ 80%RH
NOISE 56dB (A) (50Hz) / 58dB (A) (60Hz)

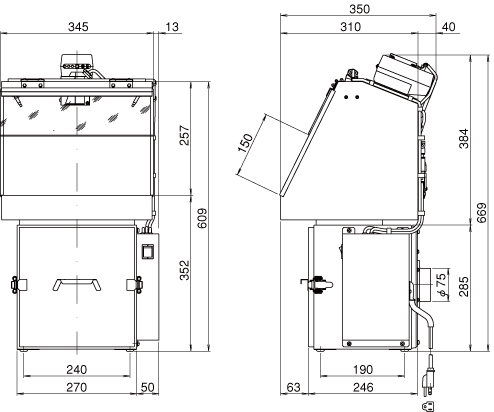

DIMENSIONS H669×W345×D350mm
WEIGHT 21kg
ACCESSORIES SDJ-08 × 1, AD24-IT-EX ADAPTER Adjuster × 1

* Domestic model also available as IPC-20 with an input power supply of 100 VAC. Please inquire at time of order.
