STATIC ERASER, Fan type

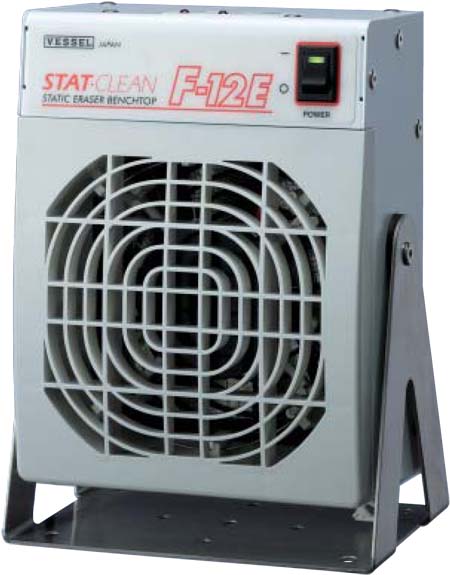

STAT·CLEAN F12E
Standard Powerful Ionizer
New Standard
Powerful static eraser blower that has both powerful static erasing capability and easy maintenance.


Features

  • A New concept round electrical discharge unit provides a highly accurate ion balance of ±5 V or less.
  • Highly reliable piezo alternating current will generate very little deterioration of the ion balance.
  • Compact design is perfectly suitable for cell production machines.
  • Adjustment dial provides step-less adjustment of the fan speed. Quiet 52 dB (At maximum fan speed)

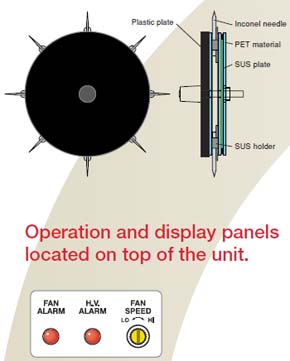

  • Power lamp and warning LED lamp are located on top of the unit making it easy to see at a glance during operation.

Pursuing safety and easy maintenance

  • Uses 24V low-voltage wiring to avoid current leaks or negative impact on peripheral components.
  • First in the industry. Electric discharge plate removal/attachment mechanism makes maintenance easier.
  • Front guard can be opened and closed with one touch. Comes with a limiter switch that turns off the power when opened.
  • Electric discharge design provides highly efficient ion generation with little ozone generation (0.05 ppm or less).
  • Comes with a fan rotation stoppage and high voltage abnormal warning LED.

Technical Specification

Ion generation method High voltage DC corona discharge
Output voltage AC3.5kV
Input voltage DC24V ± 5% 400mmA (TYP.)
Dimensions H180×W142×D87 (H200×W151.5×D95 Includding stand) mm
Weight 1.4kg
Fan speed 2.9m3/min (Max. Fan Speed)
Noise emission 52dB (A) Max. fan speed (Measured at 1m)
Ozone generation 0.05ppm or less (Measured at 50mm)
Working ambient Temperature/humidity 0 - 60 °C / 35 - 65%RH (No dewing)
Distance from target area 150 - 900mm (Installation location: Non-dangerous indoor location)

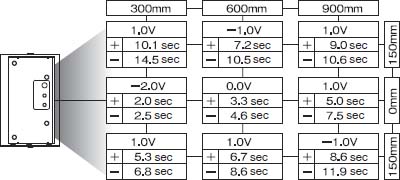

Static electricity removal time Reter to the items in the capabilities chart.
Ion balance Within ±5V (At 300mm)
Accessories Adapter No.AD24-IT-EX
Consumables Wire plate : F-12EH Filter : F-12EF
Static removal function
Static removal function
