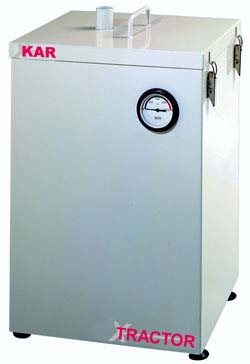

Xtractor XF-15 System 15 - Tip Extraction Units
Features
  • High Vacuum (Tip) Extraction Units
  • Maximum number of Soldering Irons EC: 15 US: 18
  • Designed specifically for portability and extremely low noise levels.
  • These high vacuum unit is designed to extract and filter fumes and debris through small bore hoses and attachments. Ideally suited for soldering iron tip extraction, vac pens, flexi fume arms and any application requiring close proximity, micro extraction.
Unit Specifications
Dimensions
mm
HxDxW
Weigh
Kg
Flow Rate
4.5mm I/D
Hose
Power
Unit
Rated
Output
kW
Voltage Noise
Level
dBA
Duct
Size
mm
Duct
Run
mtrs
Filter
Efficiency %
@ 0.3µm
560x330x330 28. 5 22-30 L/M Side Channel Blower 0.37 230 V AC <50 50 200 99.997
  |  Print page



Order Now Part Number Description Price
USD
XF-15 System 15 - Tip Extraction Unit
Qty1 +
Price$2,209.00
