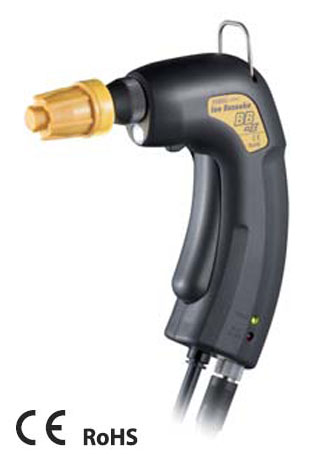

STAT·CLEAN BBZ-E
Gun-type Ionizers
Newly developed
Enormous power over big plastic products




PAC-8 Pulse Air Controller
Saving up to 60% of the air volume for the same ionizing effect.



Instruction Manual

Ideal for neutralization and dust elimination of big plastic products made, for example, by standing up.

  • Ionizing method:Piezoelectric high-frequency AC corona discharge.
  • Electrode needles:Tungsten.
  • Silent Straight Nozzle with outstanding silencing effect is mounted, reducing the wind roar noise.
  • Compact and lightweight model with an ergonomically designed grip that fits the hand comfortably. (Casing is made of resin.)
  • Super luminosity LED light below the nozzle illuminates dust particles.
  • Safe design with a high-frequency voltage transformer built-in. Applied for low voltage 24VDC, supplied with the dedicated AC adaptor.
  • "ON" lamp and High Voltage Alarm lamp on both sides of the grip, enabling operators to check the operational state at a glance.
  • The AC adaptor is with a long cable, enabling to use the BBZ-E in a widespread area.

Technical Specification

Ion generation method Piezoelectric high-frequency AC corona discharge
Applied voltage 2.0 kVAC
Power supply DC24V ± 5%
Current consumption 100 mA (max. when using LED light)
Ion balance within ±10V (Test value: at 0.6MPa and 150mm)
Decay time within 0.5 sec (Test value: at 0.6MPa and 150mm)
Neutralization area 50 mm ~ 600 mm
Dimensions (H × W × D) 152x26x132mm
Weight 198g
Air supply pressure 0.1 ~ 0.6 MPa
Air supply hose diameter Ø6 mm x Ø4 mm
Airflow 194 L/min (at 0.3 MPa) / 344L/min (at 0.6 MPa)
Noise level (measured at 1 m) 77.3dBA(at 0.3 MPa) / 85.5dBA(at 0.6 MPa)
Ozone production (measured at 50mm) 0.05 ppm or less (at 0.3 Mpa)
Operating temperature 5 - 40 °C
Humidity 35 - 85%RH (non-condesing, non-freezing)
Material Casing,Trigger,Light Switch: ABS (Heat-resistant)
Needle Pole: Tungsten
Nozzle, Support Material: ABS (with glass fiber)
Accessoires AC Adapter AD24-ITB-E
Instruction manual

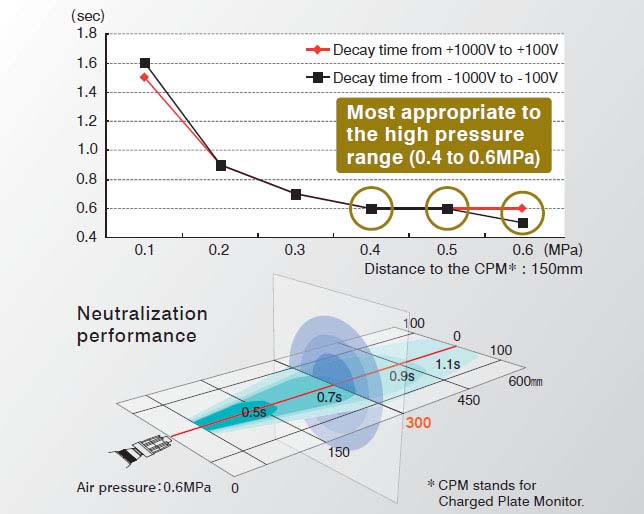

Unique performance by high pressure blow-off for such big products

  |  Print page



Order Now Part Number Description Price
USD
AL-15-G7 Compressed Air Flex Line, 6mm OD / 4mm ID, Working lenghts 15' (~4.5m)
Qty1 +
Price$24.90
BBZ-E Ionizing Gun. Best Performing for de-ionizing larger objects. Made in Japan.
Qty1 +
Price$599.90
