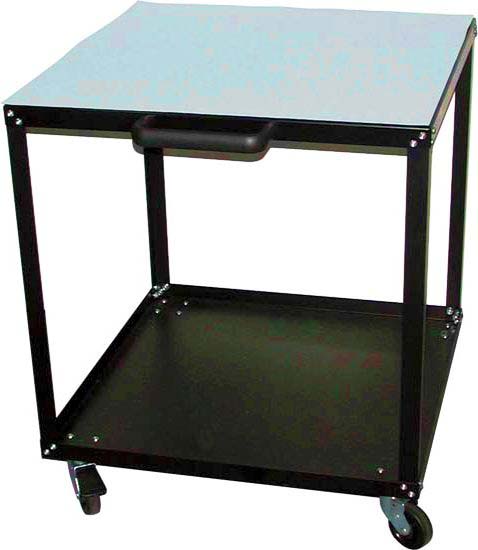

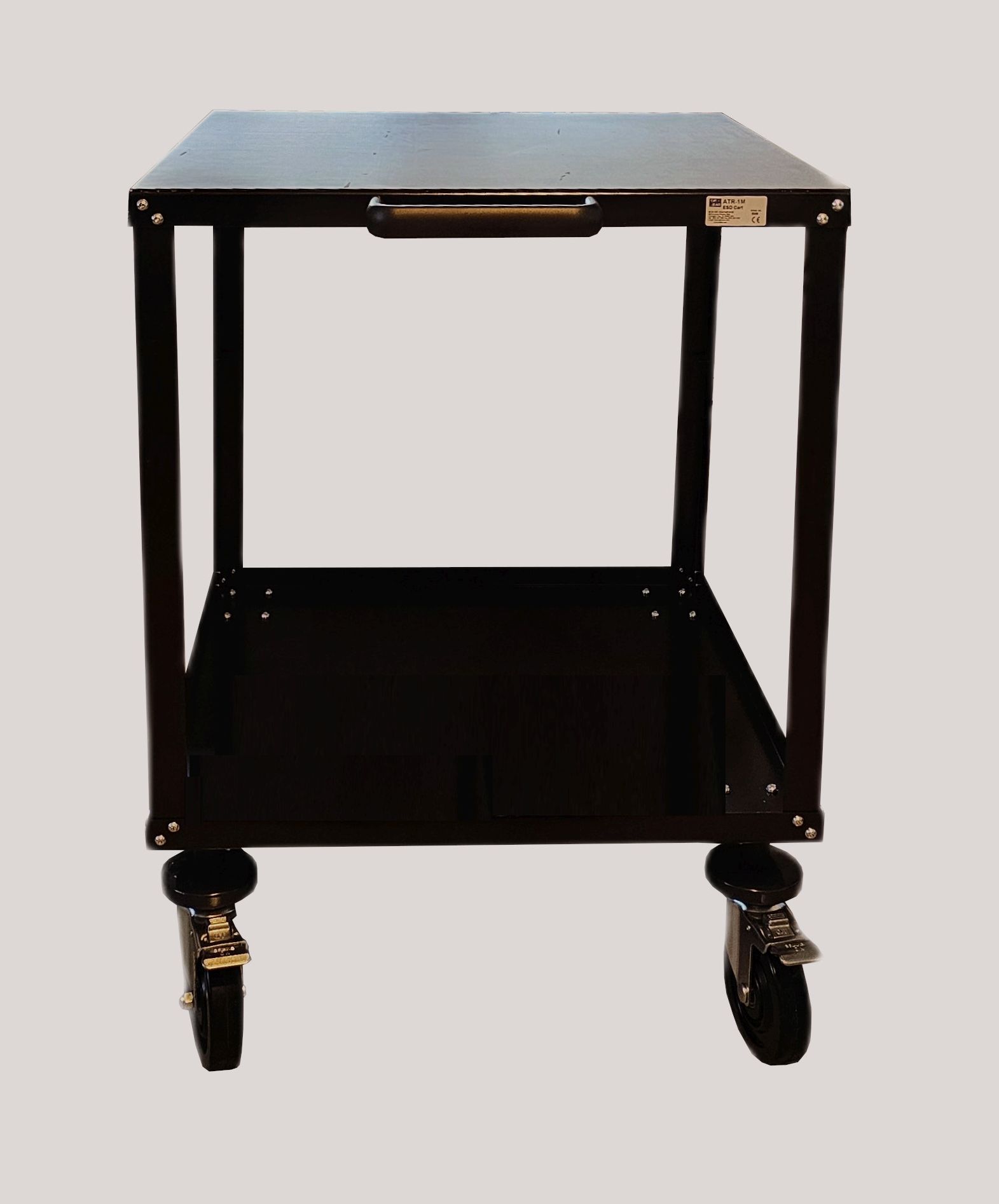

Zero Charge™ ESD Utility Cart ATR-1

Utility Cart ATR-1 Trolley is designed to prepare and transport equipment, parts etc. to the assembly area.
Makes a convenient mobile work surface for folding, sorting or repairs.

Features
  • large, non-marking ESD casters.
  • Convenient handle to pull or push
  • ESD non-burn rubber mat surface
Construction
  • Epoxy powder coated steel.
  • ESD Safe.
  • Top covered with ESD, two layer rubber mat.
  • Two shelves.
  • Convenient handle for pushing or pulling.
 more info

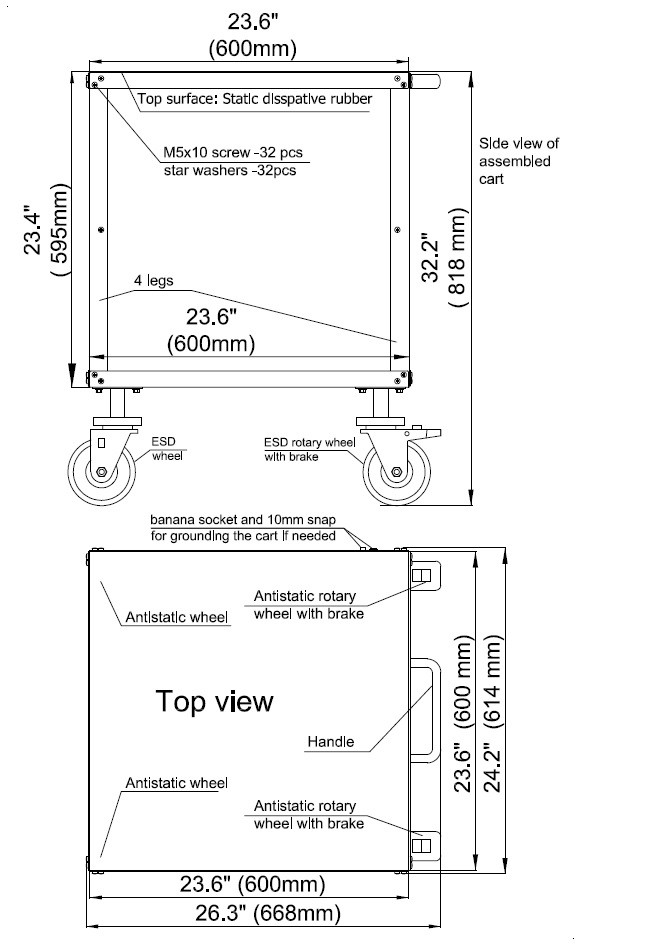

Technical specifications
Dimensions 24.4" L x 24.4" W x 27.6" H
(600 L x 600 W x 700 H mm)
Load capacity 400 lb.
(150 Kg).



ATR-1 Series ESD Carts                                                              www.ESDcarts.net



                                Catalog Number:   ATR-1                                              ATR-MS – Optional middle shelf for  ATR-1

ESD Cart on no marking ESD wheels. Top shelf covered with no-burn ESD rubber mat.

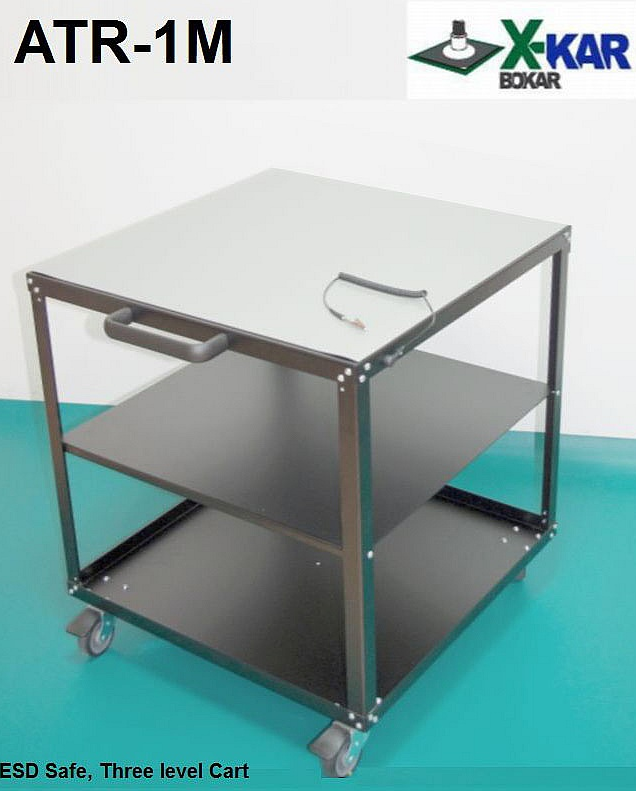

Catalog Number for three level cart:    ATR-1M

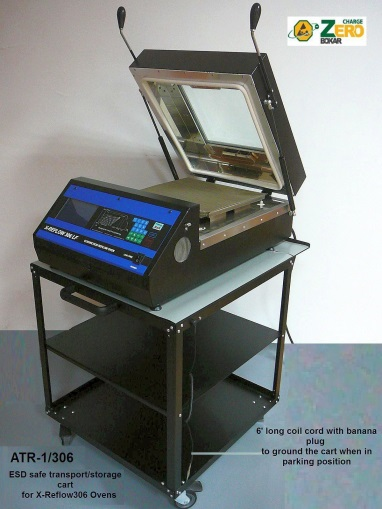

There is also custom version of this cart with the top shelf extended by 12 cm (~ 5”) to accommodate our X-Reflow306 Series ovens.


Catalog Number for the extended top shelf cart:   ATR-1/306

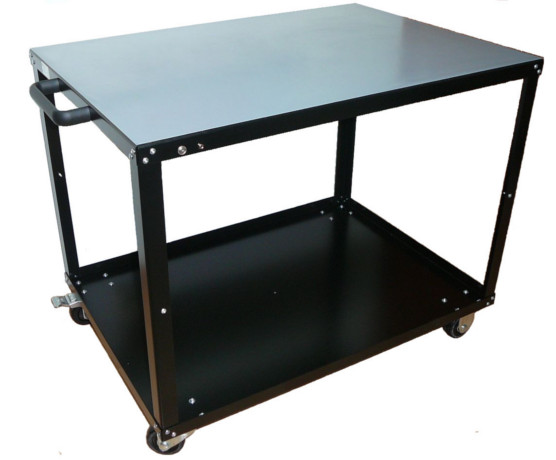

ATR-1R ESD Safe Utility Cart


Technical specifications:

Dimensions: 850mm x 600mm x 700mm (Length x Width x Height)

Load Capacity:  400Lbs (185Kgs)

  |  Print page



Order Now Part Number Description Price
USD
ATR-1 ESD Utility Cart. Conductive, no marking wheels. Top shelf finish: ESD, two layer non burn rubber mat. Static discharge to the ESD floor through the wheels is guaranteed for each unit. All metal. Can't be damaged by molten solder or high temperatures.
<...more info
Qty1 - 1920 +
Price$589.90$569.90
ATR-1M ESD Utility Cart. Conductive, no marking wheels. Top shelf finish: ESD, two layer non burn rubber mat. Model ATR-1M has an extra middle shelf. Otherwise, same performance as ATR-1.
<...more info
Qty1 - 1920 +
Price$659.90$639.90
ATR-1R ESD Safe Utility Cart. The largest available from the ZeroCharge brand. Top shelf finish: Anti-static two layer non burn rubber mat. Same performance as ATR-1
<...more info
Qty1 - 1920 +
Price$649.90$619.90
ATR-MS Middle shelf for ATR/306 and ATR-1 Carts
<...more info
Qty1 +
Price$79.90
