QFP Plastic Quad Flat Pack

Quad Flat Pack (QFP) components have four sides with leads extending from the component body on all four sides. QFP components come packaged in trays or on tape and reel to protect the component leads that can be easily damaged. An important measurement for QFPs is coplanarity. When the first lead from the component is placed on the PCB board coplanarity is established. Coplanarity ensures the last lead can be placed on the board. The standard for QFP coplanarity is ±4 mils. Lead-free versions of QFPs are now available. Please call for additional information. Lead-Free Parts Available

Also see ...
Amkor QFP PowerQuad
Drawing Part Number Number
of Pins
Body
Sze
Body
Thickness
Lead
Pitch
Footprint Quantity
Per Tray
Tape
Width
Tape
Pitch
Quantity
13" Reel

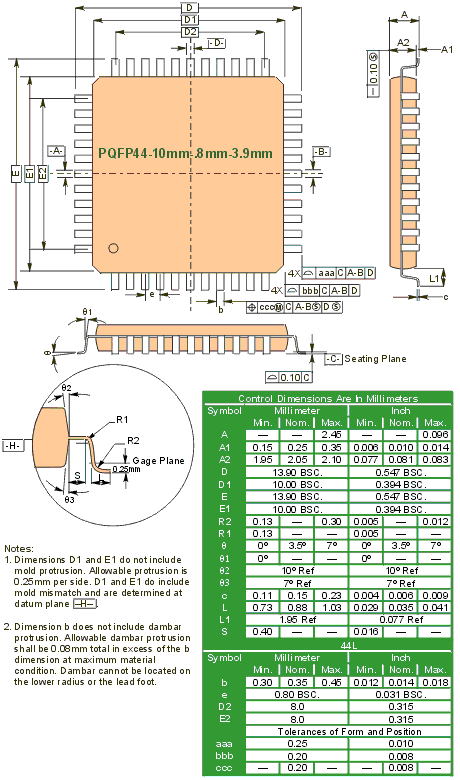

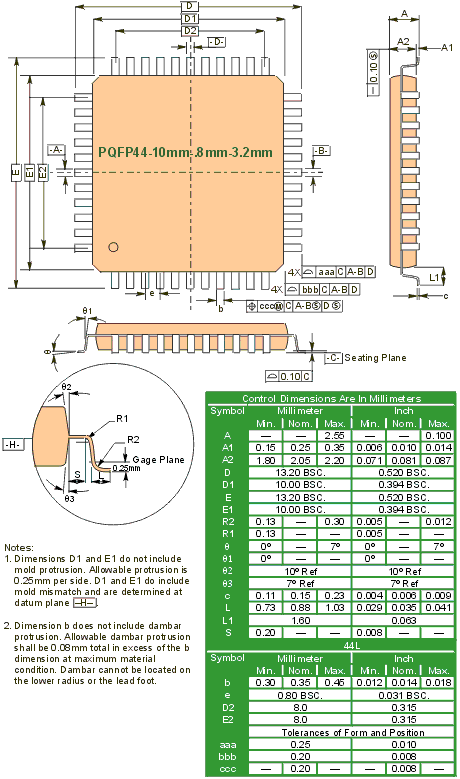

Drawing QFP44-10mm-.8mm-3.2 44 10mm sq 2.0mm .80mm 3.2mm 96 24 24 500
Drawing QFP44-10mm-.8mm-3.9 44 10mm sq 2.0mm .80mm 3.9mm 96 24 24 500
  QFP52-10mm-.65mm-3.2 52 10mm sq 2.0mm .65mm 3.2mm 96 24 24 500
  QFP52-10mm-.65mm-3.9 52 10mm sq 2.0mm .65mm 3.9mm 96 24 24 500
  QFP52-14mm-1.0mm-3.2 52 14mm sq 2.0/2.67mm 1.00mm 3.2mm 84 32 24 350
  QFP52-14mm-1.0mm-3.9 52 14mm sq 2.67mm 1.00mm 3.9mm 84 32 24 350
  QFP64-10mm-.50mm-3.2 64 10mm sq 2.0mm .50mm 3.2mm 96 24 24 500
  QFP64-10mm-.50mm-3.9 64 10mm sq 2.0mm .50mm 3.9mm 96 24 24 500
  QFP64-14mm-.8mm-3.2 64 14mm sq 2.0/2.67mm .80mm 3.2mm 84 32 24 350
  QFP64-14mm-.8mm-3.9 64 14mm sq 2.67mm .80mm 3.9mm 84 32 24 350

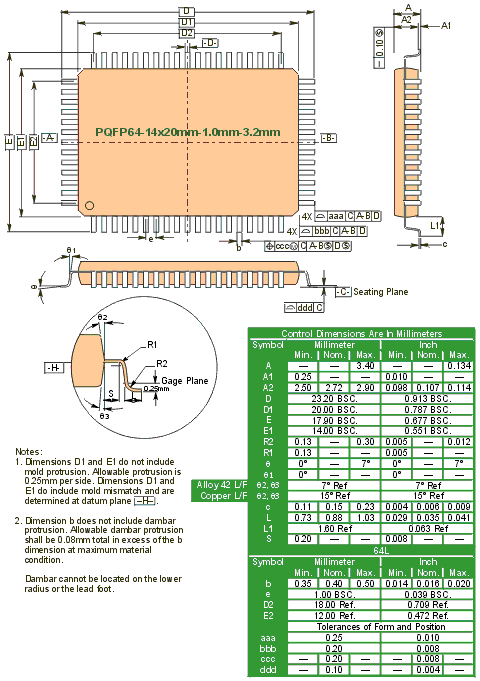

Drawing QFP64-14x20mm-1.0mm-3.2 64 14 x 20mm 2.71mm 1.00mm 3.2mm 66 44 32 200

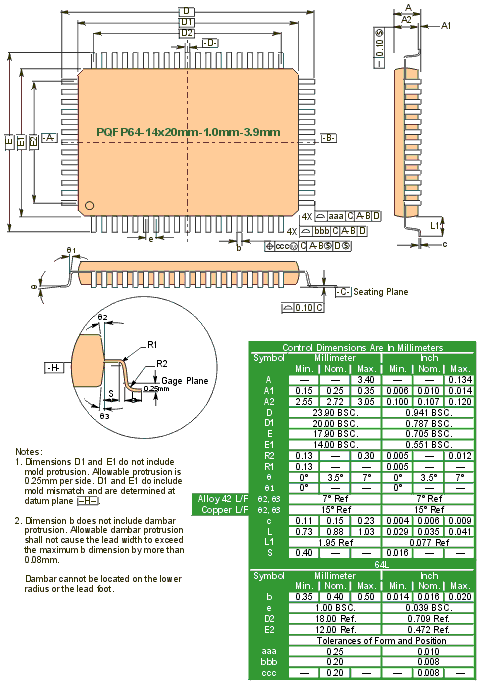

Drawing QFP64-14x20mm-1.0mm-3.9 64 14 x 20mm 2.71mm 1.00mm 3.9mm 66 44 32 200
  QFP80-14mm-.65mm-3.2 80 14mm sq 2.0/2.67mm .65mm 3.2mm 84 32 24 350
  QFP80-14mm-.65mm-3.9 80 14mm sq 2.67mm .65mm 3.9mm 84 32 24 350

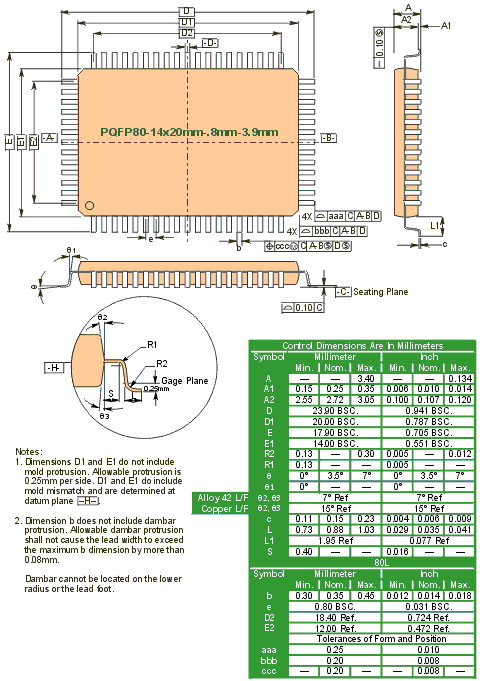

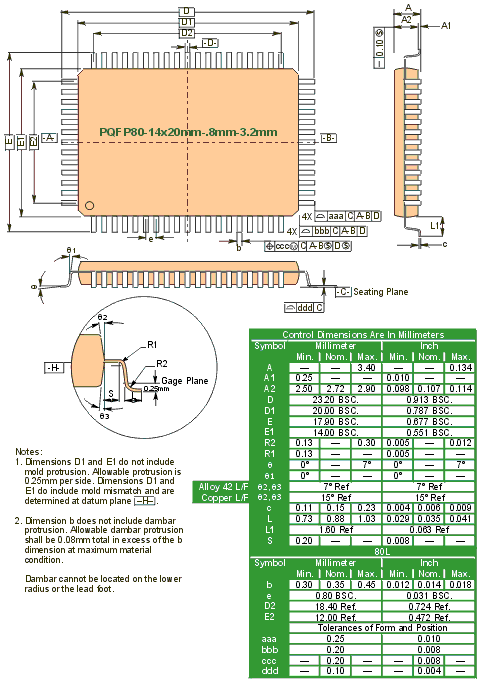

Drawing QFP80-14x20mm-.8mm-3.2 80 14 x 20mm 2.71mm .80mm 3.2mm 66 44 32 200
Drawing QFP80-14x20mm-.8mm-3.9 80 14 x 20mm 2.71mm .80mm 3.9mm 66 44 32 200
  QFP100-14mm-.5mm-3.2 100 14mm sq 2.0/2.67mm .50mm 3.2mm 84 32 24 350
  QFP100-14mm-.5mm-3.9 100 14mm sq 2.67mm .50mm 3.9mm 84 32 24 350

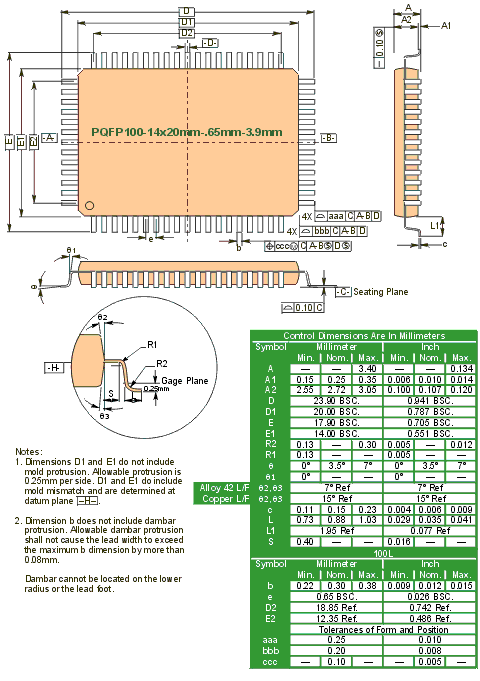

Drawing QFP100-14x20mm-.65mm-3.2 100 14 x 20mm 2.71mm .65mm 3.2mm 66 44 32 200
Drawing QFP100-14x20mm-.65mm-3.9 100 14 x 20mm 2.71mm .65mm 3.9mm 66 44 32 200
  QFP120-28mm-.8mm-2.6 120 28mm sq 3.37mm .80mm 2.6mm 24 44 40 200

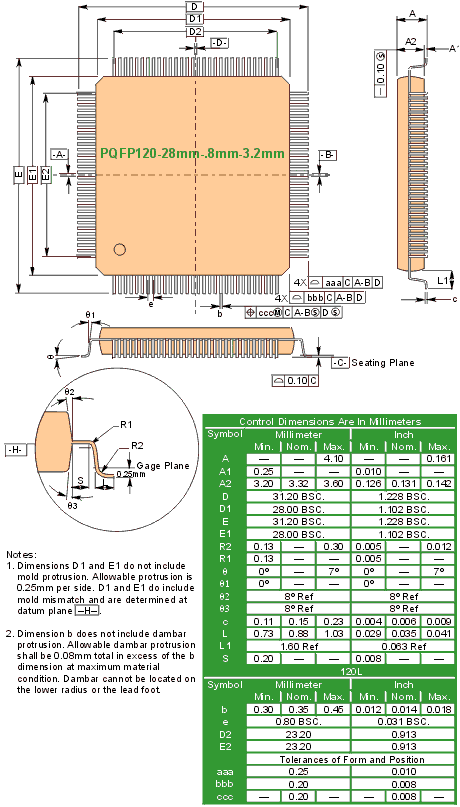

Drawing QFP120-28mm-.8mm-3.2 120 28mm sq 3.37mm .80mm 3.2mm 24 44 40 200
  QFP128-14x20mm-.5mm-3.2 128 14 x 20mm 2.71mm .50mm 3.2mm 66 44 32 200
  QFP128-14x20mm-.5mm-3.9 128 14 x 20mm 2.71mm .50mm 3.9mm 66 44 32 200
  QFP128-28mm-.8mm-2.6 128 28mm sq 3.37mm .80mm 2.6mm 24 44 40 200
  QFP128-28mm-.8mm-3.2 128 28mm sq 3.37mm .80mm 3.2mm 24 44 40 200
  QFP144-28mm-.65mm-2.6 144 28mm sq 3.37mm .65mm 2.6mm 24 44 40 200
  QFP144-28mm-.65mm-3.2 144 28mm sq 3.37mm .65mm 3.2mm 24 44 40 200
  QFP160-28mm-.65mm-2.6 160 28mm sq 3.37mm .65mm 2.6mm 24 44 40 200

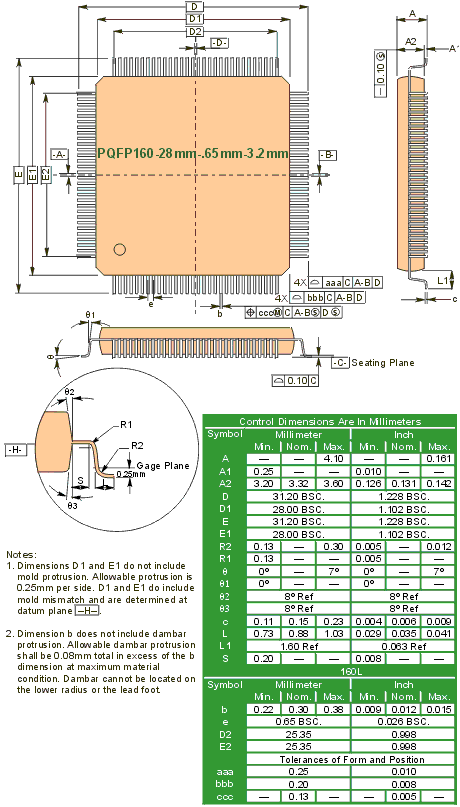

Drawing QFP160-28mm-.65mm-3.2 160 28mm sq 3.37mm .65mm 3.2mm 24 44 40 200
  QFP160-28mm-.65mm-3.9 160 28mm sq 3.37mm .65mm 3.9mm 24 44 40 200

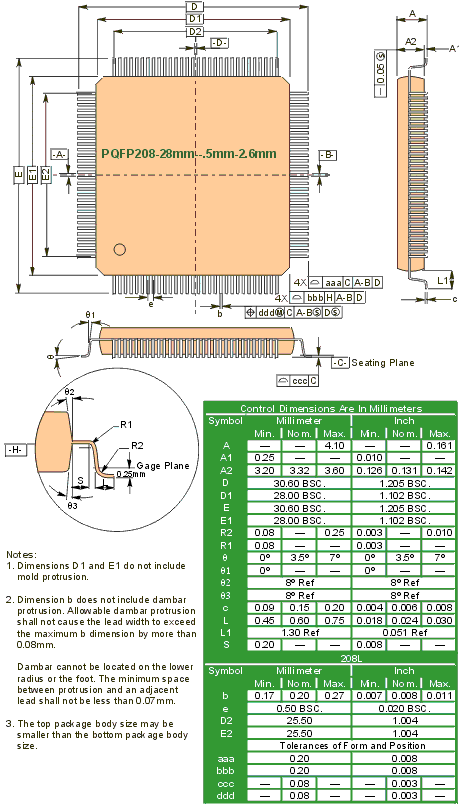

Drawing QFP208-28mm-.5mm-2.6 208 28mm sq 3.37mm .50mm 2.6mm 24 44 40 200
  QFP208-28mm-.5mm-3.2 208 28mm sq 3.37mm .50mm 3.2mm 24 44 40 200

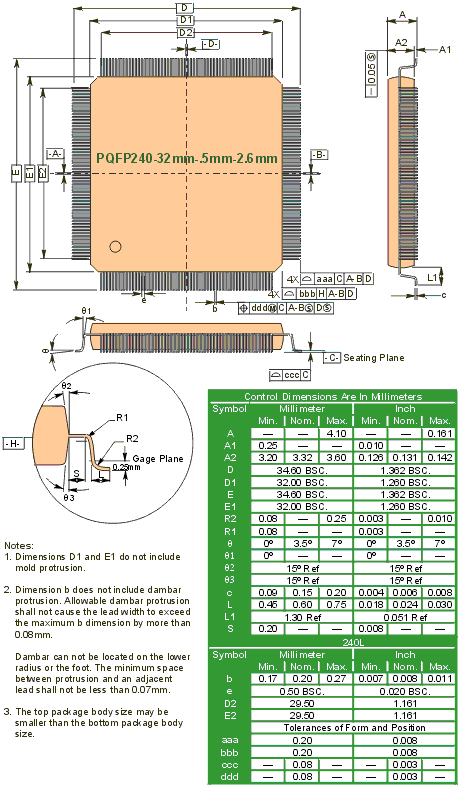

Drawing QFP240-32mm-.5mm-2.6 240 32mm sq 3.4mm .50mm 2.6mm 24 n/a n/a
Drawing QFP256-28mm-.4mm-2.6 256 28mm sq 3.37mm .40mm 2.6mm 24 44 40 200

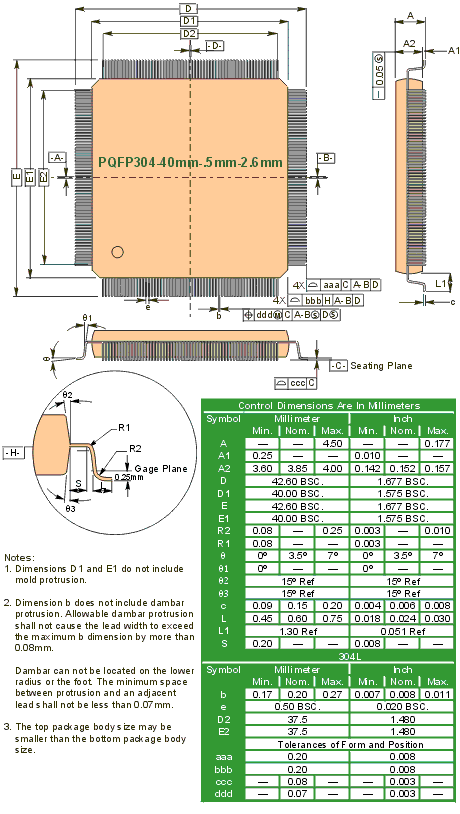

Drawing QFP304-40mm-.5mm-2.6 304 40mm sq 3.8mm .50mm 2.6mm 12 n/a n/a
  • All QFPs are standard in JEDEC trays.
  • Tray quantities may vary.
  • Carrier tape is plastic.
  • Lead-Free parts are available.
