XUT-1 Universal Tripod

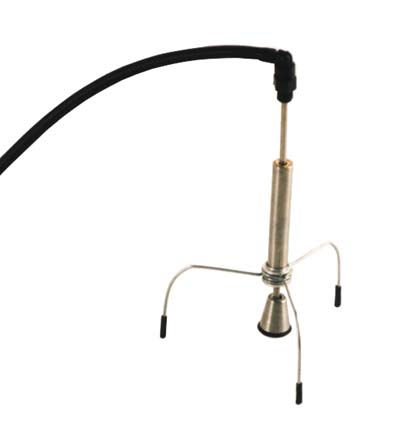

Click to enlarge image
XUT-1

XUT-1 is a convenient accessory for removal of SMD components. It needs a vacuum source (such as XVP-200) to operate. It can be connected to many other X-KAR vacuum sources or systems (SMT-ServiCE, XVB-1, XVP-200, XVP-100)

OPERATION:

  • Connect XUT-1 to a vacuum source

  • Place XUT-1 on a PCB above a component to be removed

  • Turn-on vacuum source

  • Press on top of XUT-1 unit until vacuum cup attaches to the component to be removed

  • Desolder the component using hot air tool (XmR-Micro, XHP-300, XHP-N2 or any other tool from FOCUS Family)

  • Upon reflow of solder the XUT-1 will lift the component

  |  Print page



Order Now Part Number Description Price
USD
XUT-1
XUT-1 Universal Tripod (Includes Vacuum Cup, Cup Shield and Vacuum line)
Qty1 +
Price$34.90
