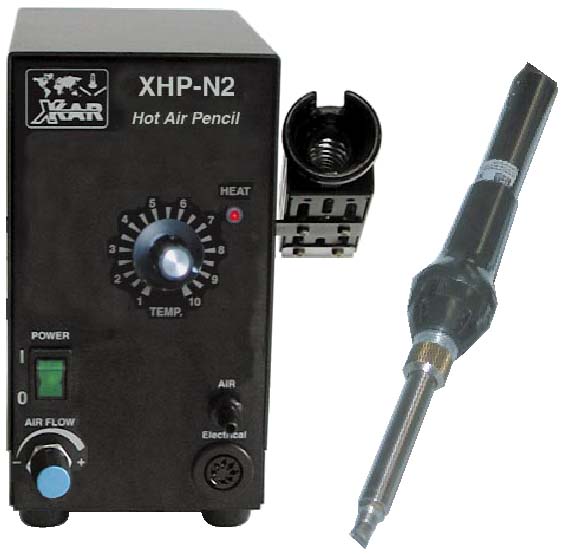

XHP-N₂ Hot Air Pencil (Nitrogen)

XHP-N₂

Microprocessor controlled for accuracy, ESD safe and ergonomic. XHP-N2 is supplied with air or N2 from external pressurized source.

Designed to outperform hot air pencils presently available from other supplies. XHP-N2 has PID control of the heater and maintains steady temperature with high accuracy. It features a standby mode to speed-up time to readiness.

The unit, when used with optional XSI-10 hand piece, is a precise Soldering Station. Both Hot Air Pencil and Iron can be used interchangeably and microprocessor controller will adjust automatically for best control of either hand piece.

System includes

XHP-N₂ Base Unit
XHP-10S Hot Air Pencil
XHP-NS1 Nozzle set (containing 3 nozzles: XN-2, XN-3, XN-6)
XWR-1 Nozzle wrench
ASL-1 Anti-seize Lubricant
XDL-1 Compressed Air Connecting Hose
XST-77 Tool Holder for XHP-10 Hot Air Pencil

Technical Specifications

Input Voltage	110-120, 220-240V AC
Power consumption	Max. 90VA
Hand piece Voltage	24V AC
Temperature Range	200^°- 420^°C (392^° - 788^°F)
Air Source	External. Min pressure 4 bar
Input pressure range	Min 4 bar - Max 10 bar
Air Flow	0.5 to 4.5 l/min
Hand piece weight	50g (.11 lbs.) w/o cord
Air Nozzle kit XHP-NS1	3 Nozzles: XN-2, XN-3 and XN-6
Weight	3.6kg (8 lbs.)
System dimensions	225 x 166 x 88 mm 8.9" x 6.5" x 3.5"
Packaged weight	3,6kg (8 lbs.)

Optional Equipment:

XH Nozzles - Nozzles for XHP-10S Hot Air/Nitrogen Pencils


XN-1	XN-2	XN-3

XN-4	XN-5	XN-6

XN-7	XN-8	XN-9

Nozzles contain in XHP-NS1 Nozzle Set

XSI-10S - Soldering Iron for XHP-300 and XHP-N2

XPX Series Tips - Tips for XSI-10S Soldering Iron

Available Tip Shapes for XSI-10

ST-77 - Tool Holder for XSI-10S Soldering Iron

Previous page | Print page

Part Number

Description

Price
USD

XHP-N2 Hot Air Pencil (Nitrogen)

XHP-N2 -115V

Hot Air Pencil (Nitrogen) , 110-120V AC

Qty	1 +
Price	$699.00

XHP-N2 -230V

Hot Air Pencil (Nitrogen) , 220-240V AC

Qty	1 +
Price	$799.00

Optional Equipment

ST-77

High quality soldering iron stand
<...more info

Qty	1 +
Price	$18.90

XHP-10S

Hot Air Pencil for XHP-300 and XmR

Qty	1 +
Price	$149.90

XSI-10S

Soldering Iron for XHP-300 and XHP-N2

Qty	1 +
Price	$89.90

XWR-1

Nozzle wrench for XHP nozzles

Qty	1 +
Price	$3.99

XH Nozzles

XHP-NS1

Hot Air Pencil Nozzle Set (Includes nozzles: XN-2, XN-3, XN-6)

Qty	1 +
Price	$29.90

XN-1

Hot Air Pencil Nozzle #1

Qty	1 +
Price	$9.90

XN-2

Hot Air Pencil Nozzle #2

Qty	1 +
Price	$9.90

XN-3

Hot Air Pencil Nozzle #3

Qty	1 +
Price	$9.90

XN-4

Hot Air Pencil Nozzle #4

Qty	1 +
Price	$9.90

XN-5

Hot Air Pencil Nozzle #5

Qty	1 +
Price	$9.90

XN-6

Hot Air Pencil Nozzle #6

Qty	1 +
Price	$10.90

XN-7

Hot Air Pencil Nozzle #7

Qty	1 +
Price	$12.90

XN-8

Hot Air Pencil Nozzle #8

Qty	1 +
Price	$13.90

XN-9

Hot Air Pencil Nozzle #9

Qty	1 +
Price	$14.90

XPX-60RT Tips

XPX-60RT-1.6D

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-1C

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-2.4D

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-2C

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-3.2D

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-3C

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-4C

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-5K

Tip for XSI-10

Qty	1 +
Price	$8.49

XPX-60RT-B

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-LB

Tip for XSI-10

Qty	1 +
Price	$5.90

XPX-60RT-SB

Tip for XSI-10

Qty	1 +
Price	$5.90

XRX-60LB

Long, Fine Tip

Qty	1 +
Price	$3.89

XRX-CUP

Cup Tip

Qty	1 +
Price	$6.45
