Instruction Manual                           logo XTRACTOR.jpg

AF-100 Series

Desktop Personal Fume Extractors

bomir AF.jpg

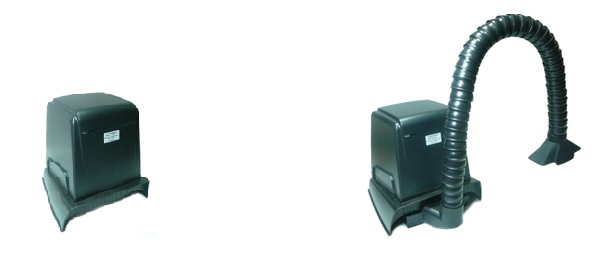

           AF-100 Horizontal Suction Fume extractor                                       AF-101 Vertical Suction Fume extractor

Thank you for purchasing our Desktop Personal Fume Extractor.

Please read this manual carefully and retain it for your future reference.

Product Overview

Our Fume Extractors are CE certified and the air purifying effect has been confirmed by the independent professional testing agency.

Applications

AF-100Series Desktop Personal Fume Extractor is used to filter and purify the harmful fumesand dusts generated during soldering, glue dispensing, laser cutting and marking and other industrial processes.

Our Fume Extractorsare designed to protect the health of the workers employed to work with or assist with listed above processes. They are lightweight, compact and portable.

The desktop fume extractor effectively eliminates smoke, odor, dust, hazardous gases and other pollutants.  With multiple filtration layers, its filtration efficiency can achieve up to 99.97%. The purified air can be discharged indoors.

Inspection of the unit upon arrival:

Please check if all the parts of the system are included and are not damaged. In case of any loss or damage of the partscontact our local distributor or customer service.

What is included

Qty

P/N

                     Remarks

AF-100

AF-101

Main Unit

1

32887

Main unit has a pre-filter P/N AF-PF and HEPA filter P/N AF-HF installed inside

    Yes

    Yes

Power Cord

1

32892

 1.5m, 5A/ 250V

    Yes

    Yes

Spare Pre-Filter Pack

5

32888

One piece is already Installed inside the unit

    Yes

    Yes

Flexible Stay Put Arm

1

32890

Ø50mm, 750mm long without the nozzle

     No

    Yes

Arm  Adapter

1

32889

Arm attachment mounted on the lower part of the main unit

     No

    Yes

Nozzle

1

32891

Rectangular. As shown above

     No

    Yes

Manual

1

32893

Please retain for future reference

    Yes

    Yes

Warranty Card

1

30326



    Yes

    Yes

Optional Accessory: AF-100fs   P/N 32894 Footswitch for AF-100 Series Fume Extractors

AF-100 Series Personal Fume Extractors are for a single operator. The operator can choose the following two ways to extract the fumes:


AF-100 BOMIR.jpg

Figure A:

AF-101 M BOMIR.jpg

Figure B:

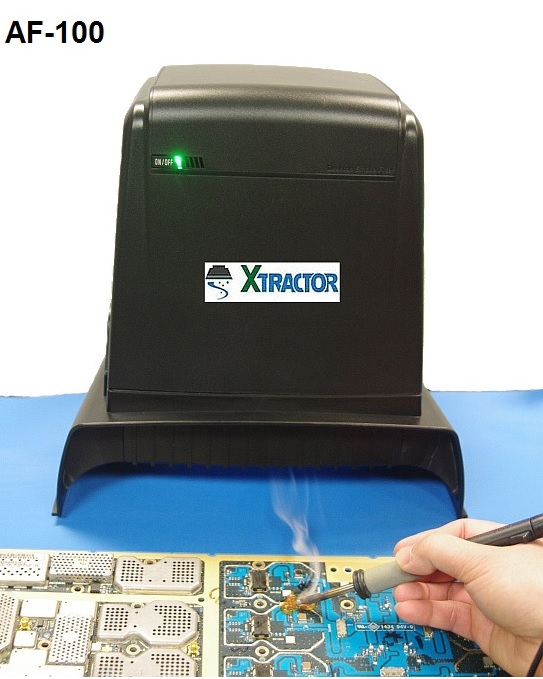

  1. Figure A: Fume Extracting with AF-100 Horizontal suction unit

It is suitable for soldering work on the PCB in multiple locations. The suction power can vary depending on the distance from the suction slot. To optimize the suction the PCB can be moved along the suction slot to reach the two ends of the PCB.

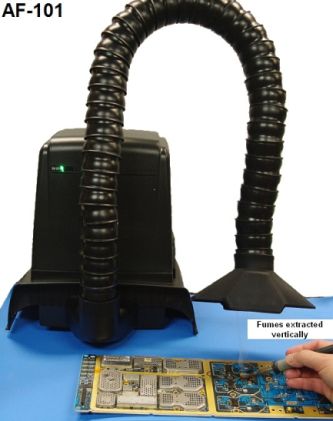

  1. Figure B:     Fume Extracting with AF-101Vertical suction unit

With AF-101 it is possible to place the nozzle closer to the soldering joint.  The nozzle shall be placed above the position where soldering fumesare generated.

Please check before operating the unit:

  1. If the housing of the main unit is not damaged
  2. If the main filter assembly is properly installed inside the machine.
  3. If the top housing is properly attached to the base

Safety Precautions:

Please take note of the following safety precautions to avoid fire or personal Injuries.

  1. Do not operate the unit in high temperature (above 80°C), explosive or greasy environments.
  2. The power outlet to which the unit is connected must be properly grounded.
  3. Maintenance shell be performed by professional qualified personnel.
  4. Do not replace filters when the machine is connected to the power outlet.

Working Principle:

The machine absorbs the fumes through the air slot or the suction arm.  The air will then flow upwards through 3 layers of filters where fumes, dust and odors will be absorbed and neutralized.  The purified air will be pulled by the centrifugal blower and discharged from the outlet which is on the back of the machine.

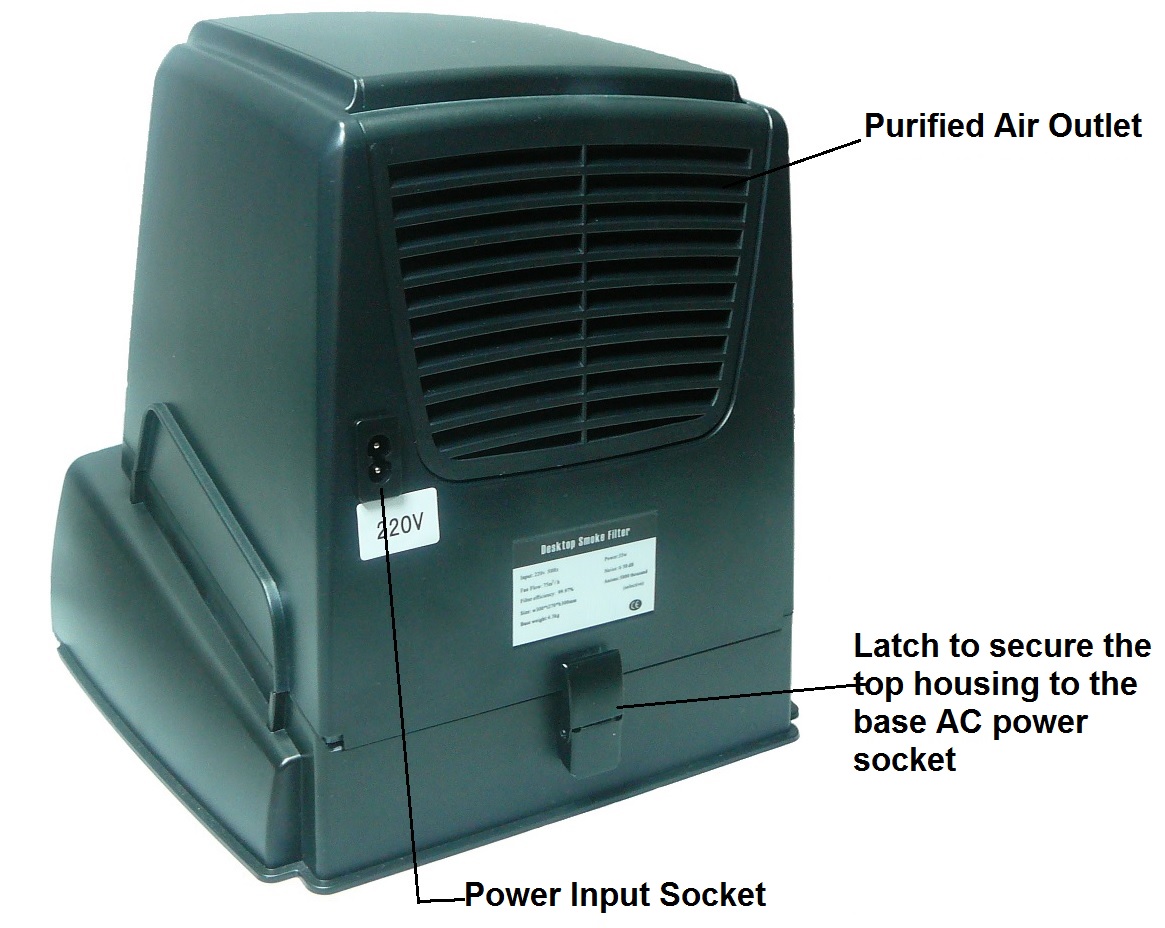

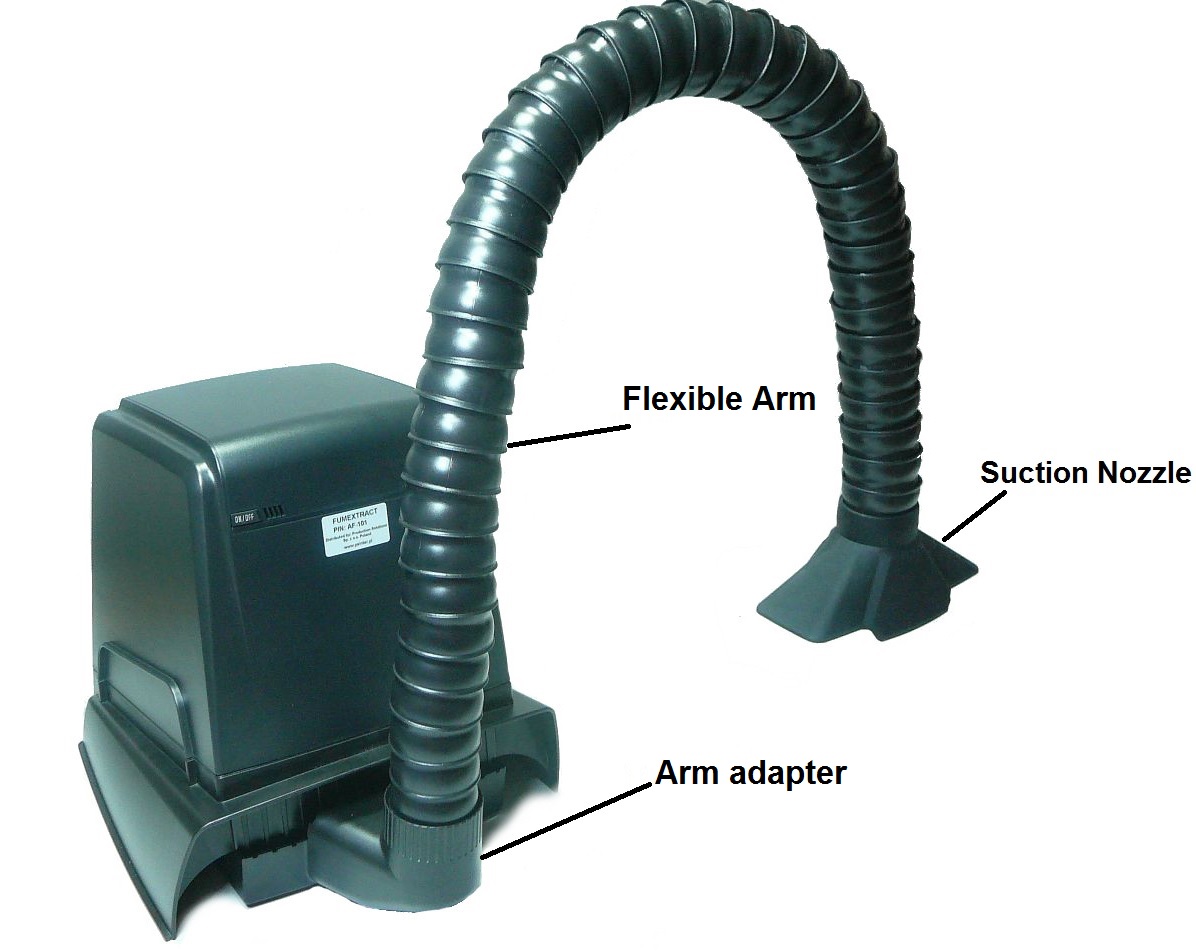

AF-101 opis.jpg AF-100 tyl opis.jpg

Attention: When the machine is working, do not cover the Purified Air Outlet with any object.Otherwise it will cause the machine to overheat and cause the damage of thethe motor and the control PCB inside the unit.

Technical Specifications

ITEM

SPECIFICATIONS

Input Voltage

AC110V / 220V

Maximum Power

35W

Systemic Flow

75m³/h

Filtering Efficiency

0.3um99.97%

Noise Level

<50 dB

Diameter and length of the extraction arm:

Ø=50mm, l =80cm

Dimensions of Main Unit

W300 x T270 x H300mm

3.      Operation Instructions

3.1   Fume Extracting without the Arm

  1. Place the machine on a flat surface (e.g. desktop or work-bench)

*Attention: The surface must be flat to make sure the base unit seats tightly on the top of the surface to prevent the leakage of the air.

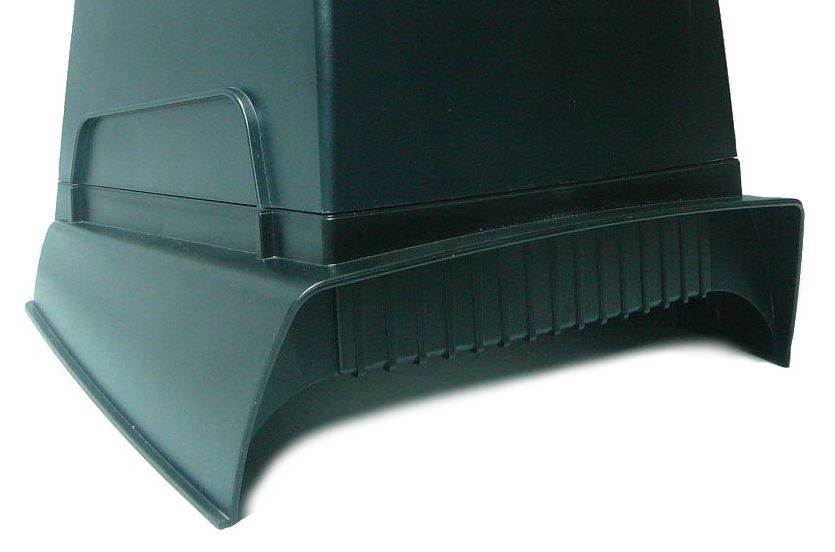

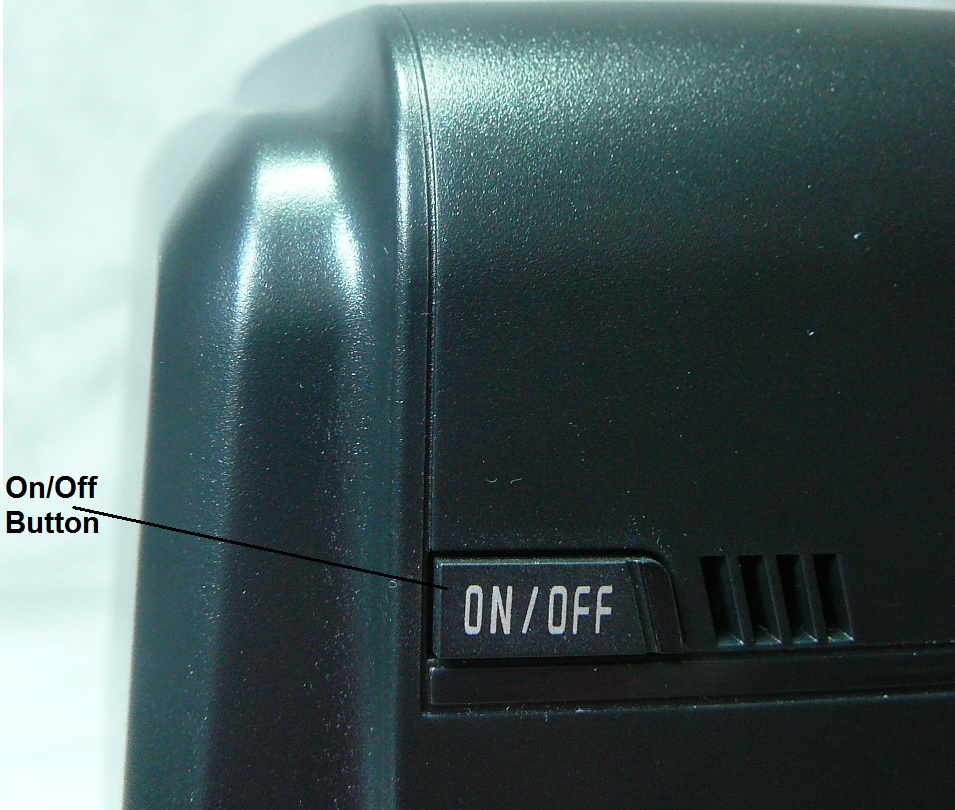

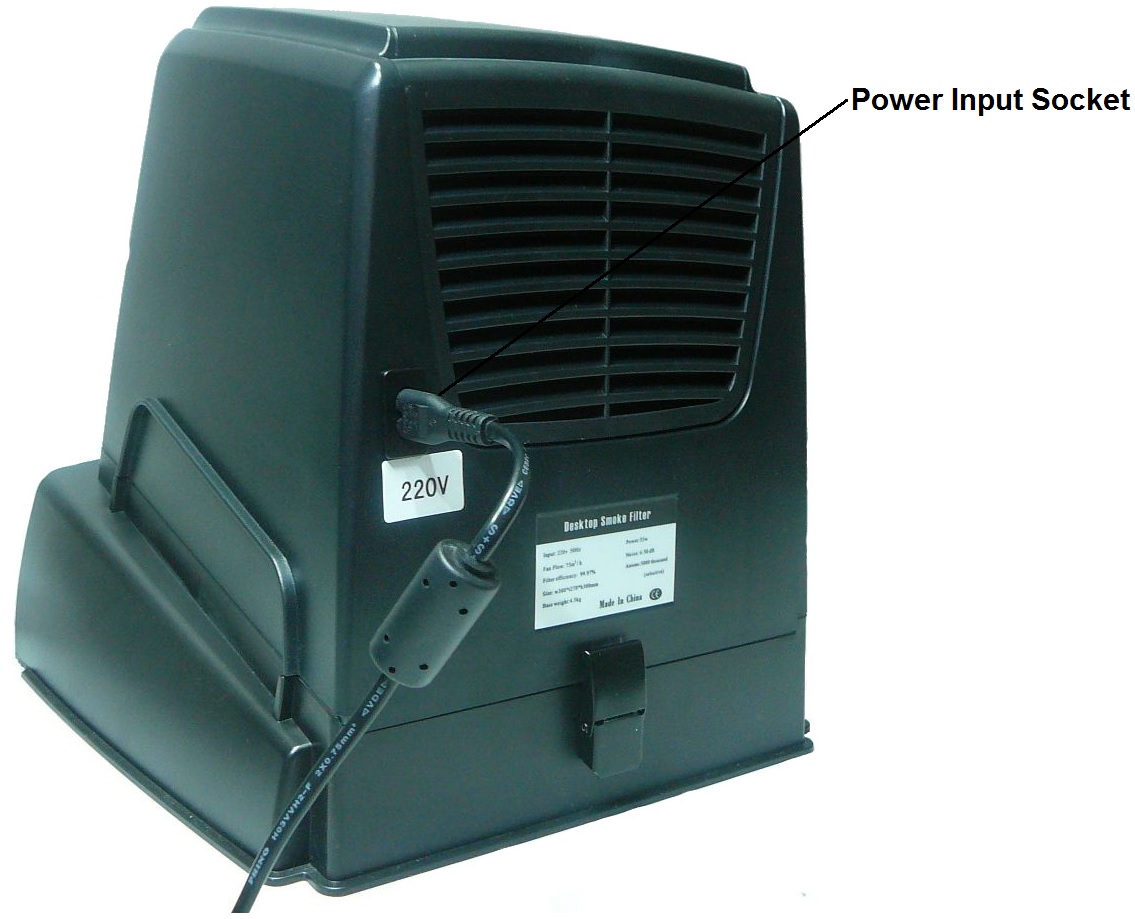

AF-100_1 see figure 1.jpg AF-100 TYL KABEL OPIS.jpg on off figure 5 6.jpg

       2.  Connect the power cord and press ON/OFF switch.  The green light will indicate that the machine is working

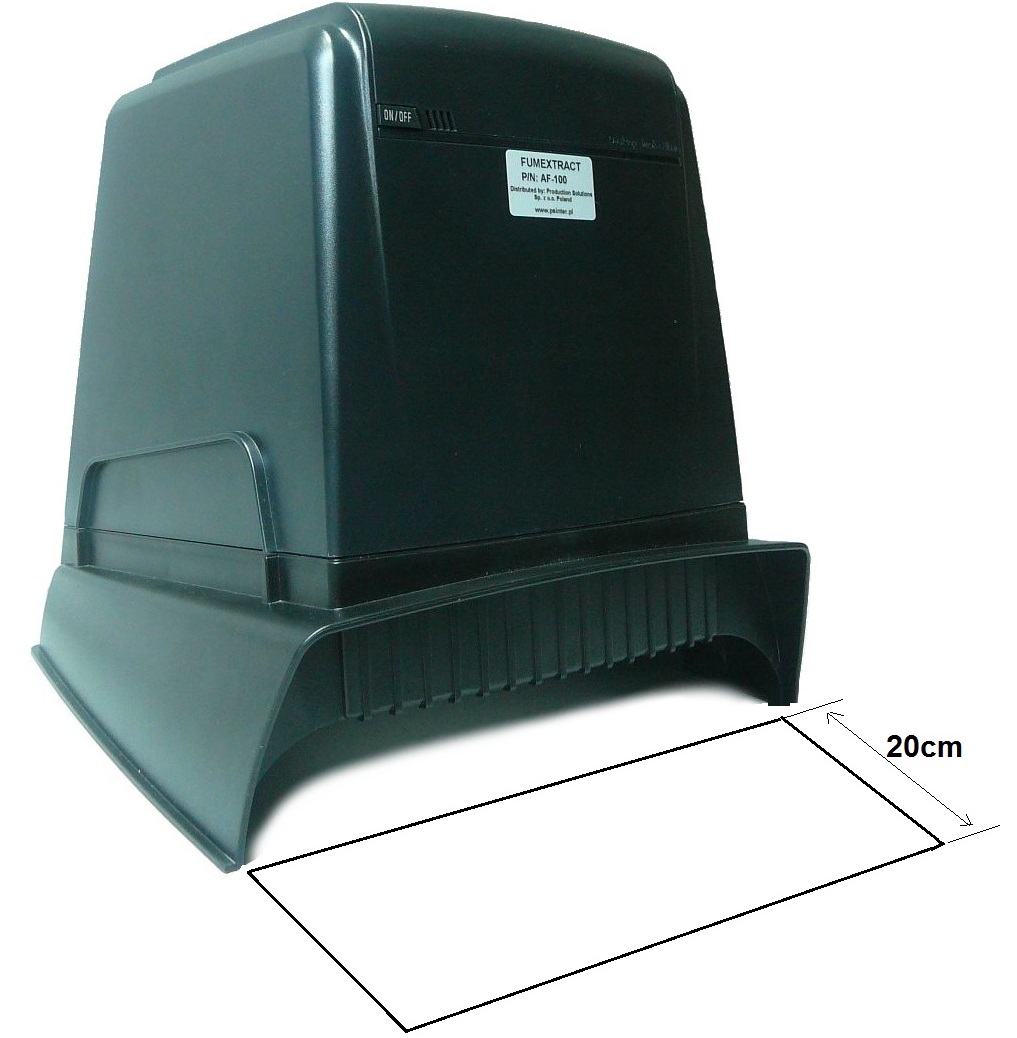

       3.  When the soldering joint is within 20cm from the air inlet, the suction is at optimal point

AF-100 FIGURE 2_2.jpg

3.2.   Fume Extracting with the fume extraction arm.

  1. Place the machine on a flat surface (e.g. desktop or work-bench).  An uneven surface will result in vibration during machine operation.
  2.  Insert the duct adapter onto the bottom of the machine.  Then, install the arminto the duct adapter.
  3. Adjust the arm to make sure that the nozzle is close enough to the smoke-generating area.  Connect the power cord and press ON/OFF button.  The green indicator is on and the machine is extracting the fumes.

*Attention: When adjusting the direction of the arm, the arm body shall be kept straight or bent gently.  Otherwise the suction power may be affected.  The nozzle shall face the work areas.  The distance from the fume generation point shall be kept within 150mm.

*Attention: The machine shall not be used at places with strong  drafts which may cause the reduction of the suction power.

4.     Troubleshooting

*Attention: Please make sure to turn off the power before checking and repairing the machine.

Problem 1: the machine still works but the air flow is very weak and the suction power

has been greatly reduced

Cause:Air inlet is blocked or foreign object exists inside the arm. The filter issaturated and clogged.

Solution: Turn off the power and turn the main unit upside down.  Check if there

is any foreign object covering the Pre-filter.  In there are no foreign objects,

replace the Pre-filter with a new one.  If the problem still exists, take out the Main Filter and

check the suction power without it. If the suction power is normal, it means that the Main Filter

needs to be replaced

Problem 2: The green indicator flashes on and off, and the buzzer is ringing

Cause:The Air inlet is blocked or foreign object exists inside the arm.  The alarm sounds when the filter

issaturated and clogged.

Solution: Turn off the power and turn the main unit upside down.Check if there is

a foreign object covering the Pre-filter.  In there are no foreign objects,

replace the Pre-filter with a new one.  If the problem still exists, take out the Main Filter

and check if the alarm still sounds.  If yes, replace the Main Filter.



Filters and Maintenance

AF-100 Series units use replaceable filters.   When the filters are saturated, they need to be replaced in order to ensure the effective filtration and purification. P/N to order are listed above.

1)     Pre-filter

The Pre-filteris installed inside the Main Filter. The rough and fluffy side must face downwards.

When the Pre-filter is saturated and its color have changed  (See Figure 7) replace it. Also, when the indicator (Normal Working / Alarm) flashes on and off, and the buzzer rings, the Pre-filter needs to be replaced.

2)     Main Filter

Must be installed in the base properly.

When the Main Filter is saturated and cannot eliminate effectively the odors or the fumes, replace it.

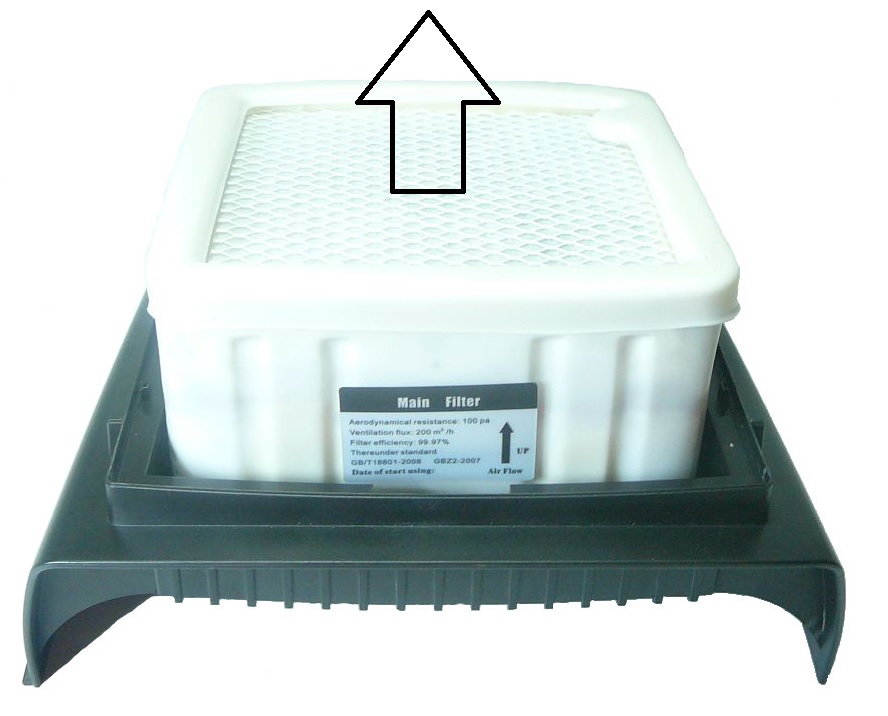

Main Filter strzalka.jpg
