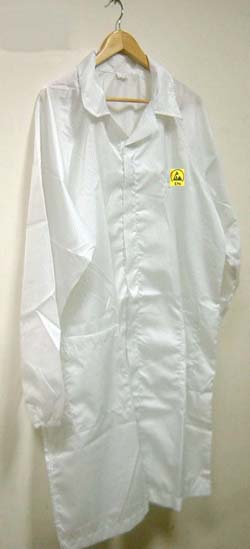

No-Stat CL Series ZeroCharge Clean Room Lab Coats

No-Stat Lab CL Series Coats Sizes and Dimensions

Size S M L XL 2XL 3XL 4XL
Labcoat length 101cm 103cm 104cm 105cm 107cm 108cm 109cm
Chest 112cm 117cm 122cm 127cm 132cm 137cm 142cm
Outside sleeve 75cm 76cm 79cm 81cm 84cm 86cm 89cm
Suitable height 160cm 165cm 170cm 175cm 180cm 185cm 190cm

Select part number from the following table:

Part Number Description
A-NoStat-CLSZ-xx Fabric Strip Type, slide fastener, x = size: S, M, L, XL, 2XL, 3XL, or 4XL
A-NoStat-CLSB-xx Fabric Strip Type, snap fastener, x = size: S, M, L, XL, 2XL, 3XL, or 4XL
A-NoStat-CLGZ-xx Fabric Grid Type, slide fastener, x = size: S, M, L, XL, 2XL, 3XL, or 4XL
A-NoStat-CLGB-xx Fabric Grid Type, snap fastener, x = size: S, M, L, XL, 2XL, 3XL, or 4XL

Static Dissipative Fabrics

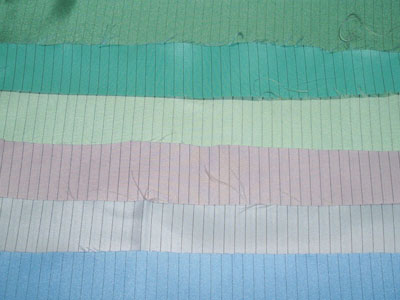

CLS Fabric: WF-5605A [ Strip type]

Item Specification Test Method
Composition Polyester filament yarn with
Carbon compound filament yarn
ASTM-D-629
Weave 2/1 twill, 5mm strip
Weight 95g/m²
Width 60 inch
Density Warp – 150 ends/inch
Weft – 109 ends/inch

Yarn Type Warp – Polyester 75 denier/36F; conductive 70 dinier/25F
Weft – Polyester 75 dinier/72F

Surface Resistivity 10e5 ~ 10e6 ohm/unit DIN 54345
Friction charges
Electrication Potential
180 V JIS L1094-B
Decay time ± 0.01 Sec NFPA-99
Air Permeability 6.4 c.c. / cm² / Sec JIS L1096-A
Tear Strength Warp : 2.8 kgs
Weft : 1.7 kgs
ISO 5082 :1982-1"
Grab test
Tensile Strength Warp : 57.8 kgs
Weft : 52.7 kgs
ISO 9290:1990-falling
Pendulum method B
Color retention After water washing 4-5 grad
After wet friction 4-5 grad
Light fastness 4-5 grad
After dry friction 4-5 grad
ISO 105 C03-30min
ISO 105 D01: 1993
ISO 105 E01:1994
ISO 105 B02:1994
Half-Life 5 Sec JIS L1094-A

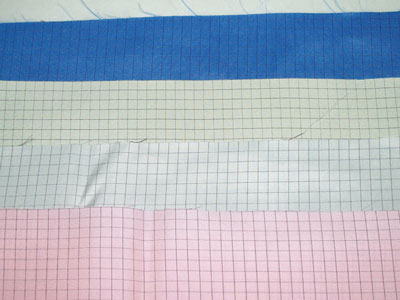

CLG Fabric: WF-5505A [ Grid type ]

Item Specification Test Method
Composition Polyester filament yarn with
Carbon compound filament yarn
ASTM-D-629
Weave 2/1 twill, 5mm grid
Weight 95g/m²
Width 60 inch
Density Warp – 150 ends/inch
Weft – 109 ends/inch

Yarn Type Warp – Polyester 75 denier/36F; conductive 70 dinier/25F
Weft – Polyester 75 dinier/72F; conductive 70 dinier/25F

Surface Resistivity 10e5 ~ 10e6 ohm/unit DIN 54345
Friction charges
Electrication Potential
35 V JIS L1094-B
Decay time ± 0.01 Sec NFPA-99
Air Permeability 6.0 c.c. / cm² / Sec JIS L1096-A
Tear Strength Warp : 3 kgs
Weft : 1.9 kgs
ISO 5082 :1982-1"
Grab test
Tensile Strength Warp : 58 kgs
Weft : 49.6 kgs
ISO 9290:1990-falling
Pendulum method B
Color retention After water washing 4-5 grad
After wet friction 4-5 grad
Light fastness 4-5 grad
After dry friction 4-5 grad
ISO 105 C03-30min
ISO 105 D01: 1993
ISO 105 E01:1994
ISO 105 B02:1994
Half-Life 4 Sec JIS L1094-A

  |  Print page



Order Now Part Number Description Price
USD
A-NoStat-CLGB -S No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with snap fasteners Size: S
Qty1 - 1011 +
Price$18.99$17.99
A-NoStat-CLGB -M No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with snap fasteners Size: M
Qty1 - 1011 - 4950 +
Price$18.99$17.99$15.99
A-NoStat-CLGB -L No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with snap fasteners Size: L
Qty1 - -10 - -10 +
Price$18.99$17.99$15.99
A-NoStat-CLGB -XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with snap fasteners Size: XL
Qty1 - 1011 - -10 +
Price$18.99$17.99$15.99
A-NoStat-CLGB -2XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with snap fasteners Size: 2XL
Qty1 - 1011 +
Price$18.99$17.99
A-NoStat-CLGB -3XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with snap fasteners Size: 3XL
Qty1 - 1011 +
Price$19.99$18.99
A-NoStat-CLGB -4XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with snap fasteners Size: 4XL
Qty1 - 1011 +
Price$20.99$19.99
A-NoStat-CLGZ -S No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with zipper Size: S
Qty1 - 1011 +
Price$19.99$18.99
A-NoStat-CLGZ -M No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with zipper Size: M
Qty1 - 1011 +
Price$19.99$18.99
A-NoStat-CLGZ -L No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with zipper Size: L
Qty1 - 1011 +
Price$19.99$18.99
A-NoStat-CLGZ -XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with zipper Size: XL
Qty1 - 1011 +
Price$19.99$18.99
A-NoStat-CLGZ -2XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with zipper Size: 2XL
Qty1 - 1011 +
Price$19.99$18.99
A-NoStat-CLGZ -3XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with zipper Size: 3XL
Qty1 - 1011 +
Price$21.99$20.99
A-NoStat-CLGZ -4XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Grid Type, with zipper Size: 4XL
Qty1 - 1011 +
Price$22.99$21.99
A-NoStat-CLSB -S No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Stripes Type, with snap fasteners Size: S
Qty1 - 1011 +
Price$17.99$16.99
A-NoStat-CLSB -M No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Stripes Type, with snap fasteners Size: M
Qty1 - 1011 +
Price$17.99$16.99
A-NoStat-CLSB -L No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Stripes Type, with snap fasteners Size: L
Qty1 - 1011 +
Price$17.99$16.99
A-NoStat-CLSB -XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Stripes Type, with snap fasteners Size: XL
Qty1 - 1011 +
Price$17.99$16.99
A-NoStat-CLSB -2XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Stripes Type, with snap fasteners Size: 2XL
Qty1 - 1011 +
Price$17.99$16.99
A-NoStat-CLSB -3XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Stripes Type, with snap fasteners Size: 3XL
Qty1 - 1011 +
Price$20.99$19.99
A-NoStat-CLSB -4XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric Stripes Type, with snap fasteners Size: 4XL
Qty1 - 1011 +
Price$21.99$20.99
A-NoStat-CLSZ -S No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric stripes type, with zipper, Size: S
Qty1 - 1011 +
Price$18.99$17.99
A-NoStat-CLSZ -M No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric stripes type, with zipper, Size: M
Qty1 - 1011 +
Price$18.99$17.99
A-NoStat-CLSZ -L No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric stripes type, with zipper, Size: L
Qty1 - 1011 +
Price$18.99$17.99
A-NoStat-CLSZ -XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric stripes type, with zipper, Size: XL
Qty1 - 1011 +
Price$18.99$17.99
A-NoStat-CLSZ -2XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric stripes type, with zipper, Size: 2XL
Qty1 - 1011 +
Price$18.99$17.99
A-NoStat-CLSZ -3XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric stripes type, with zipper, Size: 3XL
Qty1 - 1011 +
Price$20.99$19.99
A-NoStat-CLSZ -4XL No-Stat CL Series ZeroCharge Clean Room Lab Coat, Fabric stripes type, with zipper, Size: 4XL
Qty1 - 1011 +
Price$21.99$20.99
