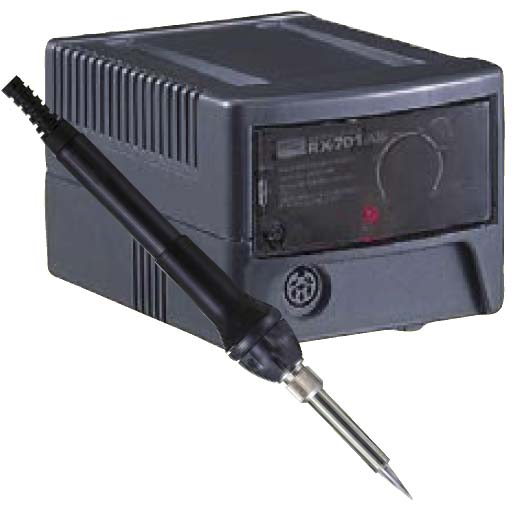

Goot BrandRX-701AS Antistatic Temperature
Controlled Soldering Station

A new design with higher power and easier operation.

Features

RX-701AS is a small foot print yet high capacity soldering station. With a wide variety of tips it offers excellent cost performance ratio. The highly dependable insulated transformer provides 24V output for the soldering unit and assures safe soldering. The RX-701AS series with its variable temperature setting range of from 200°C; to 450°C along with tip heat recovery is a low cost model. The iron handpiece is small and light weight. Silicone rubber grip assures comfort and reduces fatigue during consecutive soldering.

Available models:

  • RX-701AS M type soldering iron model
  • RX-701LAS L type soldering Iron model

M type soldering iron has normal heat capacity tip

L type soldering iron has large heat capacity tip

NEW!
HIGH INSULATION TYPE,
ERGONOMIC
AND STATIC SAFE

CE Mark

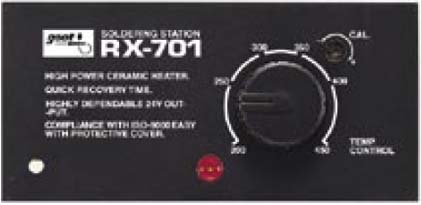

RX-701 AS Control Panel

Sensor which is integrated with the new simple ceramic heater and the control circuit designed after careful study, a 60W large heat capacity allows faster temperature recovery during heavy soldering, reducing the reaction time even at lower temperature setting.

The zero-volt switch circuit controls the heater power ON-OFF by using the temperature feedback system. This ensures low noise and keeps the tip temperature stable for IC and CMOS components.

  • EASY TO USE
    The soldering handpiece is balanced to assure comfortable operation. The heater assembly is connectorized, replacement is simple and easy.

  • HIGH INSULATION, HIGHLY RELIABLE 24V OUTPUT
    The heater is completely isolated from the input power by the transformer. This assures that the operator will be safe from electrical shock. As the heater voltage is only 24V, precision electronic components can be soldered safely. The insulation resistance between the tip and the power cord plug is over 1000MW (450°C 500V DC).
  • LEAKAGE IS GREATLY REDUCED BY PROPER GROUNDING
    The grounded tip along with the grounded plug ensures that precision components are safe from damage caused by leakage voltage when plugged into a properly grounded outlet.
  • COMPLIANCE WITH ISO 9000
    The protective cover secured with a screw prevents any accidental temperature and other setting changes.

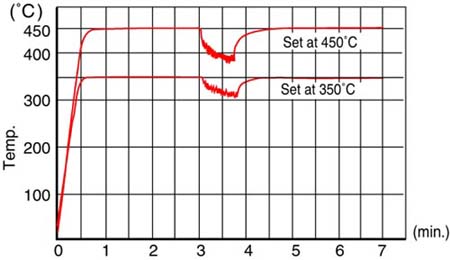

Tip / Nozzle Temperature Stability

The characteristic above was obtained by melting solder consecutively on 5 x 5mm PCB land size and simultaneously measuring tip temperature.

2 DIFFERENT TIP HEAT CAPACITIES TO COVER A WIDE RANGE OF SOLDERING APPLICATIONS

With the RX-701 series, the M type soldering iron and a variety of tips allow precision component soldering. With the RX-701L series, the L type soldering iron and tips are available for soldering of large components that require a large heat capacity. The changing between the M type soldering iron of your control unit and the L type soldering unit is quick and easy. The tips for M type soldering iron can also be used on PX-501/601 series soldering stations (Tip model designation : PX-60RT series). The RX-70LRT series tip model designation can only be used with the L type soldering iron.

Specification /
Replacement Parts

Compliant with ISO-9000, Equivalent to MIL STD.2000A

MODEL

RX-701 AS

Voltage 110-130, 220-240V AC
Power Consumption 65W
Output Voltage 24V
Temp. setting range 200-450°C
Insulation Resistance Over 1000 Mohm
Leak Voltage Under 0.5 mV
Dimensions Soldering Unit 105mm (w/o cord)
Control Unit 146(L) x 115(W) x 98 (H) mm
Weight Soldering Unit 41 g (w/o cord)
Control Unit 1.5 kg (w/o cord)
Control Unit to Soldering Unit Cord Length 1.2 m
Power Cord Length 1.3 m (3 core cable) / ground plug
Ripple temp. without load ±3°C
Ground Resistance Under 0.3 Ohm
ON/OFF Control Zero-Voltage Switch
ST-77 Soldering Iron Stand (Included)

Parts

Heater RX-701L RX-70H
Collar RX-701L RX-70LNUT
Heater Barrel RX-701L RX-70LHP

Available Tip Shapes

  |  Print page



Order Now Part Number Description Price
USD
RX-701AS
RX-701AS /12 Antistatic Temperature Controlled Soldering Station , 110-120V AC
Qty1 +
Price$129.00
RX-701AS /22-CE Antistatic Temperature Controlled Soldering Station , 220-240V AC
Qty1 +
Price$149.00
Optional accessories
RX-70GAS M type antistatic soldering iron unit for RX-701AS/711AS
Qty1 +
Price$49.90
RX-70LG L type soldering iron unit for RX-701/711
Qty1 +
Price$45.90
RX-70LGAS L type antistatic soldering iron unit for RX-701AS/711AS
Qty1 +
Price$51.90
PX-60RT Tips
PX-60RT-1.6D Replacement tip
Qty1 +
Price$3.89
PX-60RT-1C Replacement tip
Qty1 +
Price$3.89
PX-60RT-2.4D Replacement tip
Qty1 +
Price$3.89
PX-60RT-2C Replacement tip
Qty1 +
Price$3.89
PX-60RT-3.2D Replacement tip
Qty1 +
Price$3.89
PX-60RT-3C Replacement tip
Qty1 +
Price$3.89
PX-60RT-4C Replacement tip
Qty1 +
Price$3.89
PX-60RT-5K Replacement tip
Qty1 +
Price$9.75
PX-60RT-B Replacement tip
Qty1 +
Price$3.89
PX-60RT-LB Replacement tip
Qty1 +
Price$3.89
PX-60RT-SB Replacement tip
Qty1 +
Price$3.89
XRX-60LB Long, Fine Tip
Qty1 +
Price$3.89
XRX-CUP Cup Tip
Qty1 +
Price$6.45
RX-70LRT Tips
RX-70LRT-2.4D Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-2B Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-2C Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-3.2D Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-3C Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-4C Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-5C Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-5K Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$11.49
RX-70LRT-B Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
RX-70LRT-SB Soldering tip, R/part for RX-70LG/RX-70LGAS
Qty1 +
Price$5.99
