SDJ-09

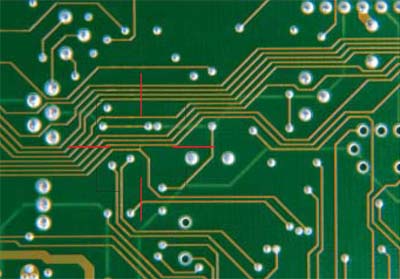

The functions of the IC and LSI are lost when electrostatic discharge (ESD) is generated toward them because ESD causes short-circuiting and damage to the joint of the semiconductor device, as well as wiring breaks and disconnections. For sensitive devices that can be damaged at several tens to several hundreds volts, systematic measures against ESD are required.
Immediate Static Elimination right after the articles taken out of the injection mould.
SDJ-02R

Sensitive parts require a high-efficiency static eliminator that can reduce static electricity to almost 0V. If proper maintenance is not done, however, the ion balance is disrupted, causing reverse charging and air pollution.

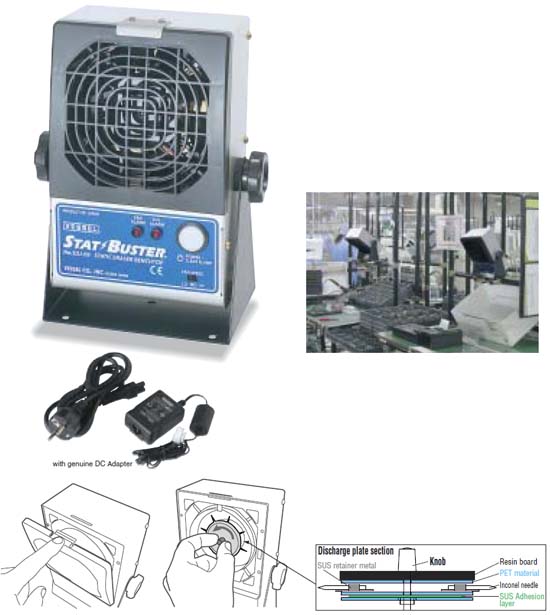

Because the SDJ-09 adopts a capacity coupling method using eight capacity coupling discharging needles, it can generate stable ionic air with an ion balance of ±5V. Also, with the help of a built-in 100-hour cumulative timer that displays and informs the need for cleaning the needle electrode, the SDJ-09 can establish control standards for needle maintenance.

Features

  • Highly reliable piezoelectric transformer AC method.
  • Because the innovative round disk-type discharge plate adopt a capacity coupling method, it can prevent the disruption of ion balance and, therefore, is ideal for the removal of electricity from electronic devices sensitive to static electricity.
  • Cleaning and replacement of the discharge plate are easy.
  • Equipped with a warning lamp that indicates troubles such as high pressure and fan stoppage.
  • 100-hour cumulative timer that displays and informs the need for cleaning the discharge plate. (Power indication light blinks.)

Applications

Static electricity removal for electronic device manufacture and assembly workstations, Static electricity removal for manufacture and assembly processes for optical devices, watches, precision parts, etc. Static erasure for processing and filling of food containers, Static erasure for film lamination and peeling of LCD panels, Prevention of adhesive stringing in gluing processes, Static erasure of molded parts on conveyors and prevention of dust adherence prior to printing and coating, Static erasure for stockers, winders and Thomson punching and cutting processes for paper, film and sheet, Static erasure of oscillating parts loaded into parts feeders.

Technical Specification

INPUT VOLTAGE DC24V±10%
POWER CONSUMPTION 340mA (typ.)
OZONE PRODUCTION HIGH VOLTAGE AC CORONA DISCHARGE
OUTPUT VOLTAGE AC 3.5KV
AIR FLOW 2.8m3/min (max)
WORKING TEMPERATURE RANGE +5 ~ +40 °C
WORKING HUMIDITY RANGE 35 ~ 65%RH
DIMENSIONS H240×W185×D102mm
WEIGHT 1.9kg
ACCESSORY AD24-IT-EX ADAPTER
STATIC CHARGE DECAY-TIME <1.6sec (±1000V→±100V, measured at 300mm in the front of unit at maximum air flow)
ION BALANCE RANGE 0V ± 5V (measured at 300mm in the front of unit at maximum air flow)
OZONE PRODUCTION <0.019ppm (1.5L/min, measured at 300mm in the front of unit at maximum air flow)
