XDP-100 Low Cost Fluid Dispenser

XDP-100 is a state of the art dispensing unit capable of dispensing fluids of very wide viscosity range (from water-like to heavy solder pastes). The unit is of modern construction and utilizes the latest achievements in semiconductor and microprocessor-control technologies.

CE Mark

XDP-100 Digital Fluid Dispensing System

XDP-100

Features

  • Digital timer.
  • Constant flow solenoid.
  • Adjustable pull-back for controlling the drip of fluid between dispense cycles
  • Foot-pedal actuated
  • Timing adjustment in 0.1 or 1 seconds increments.
  • The smallest footprint in the industry to save your bench space. Space-saving syringe holder attached to the unit.

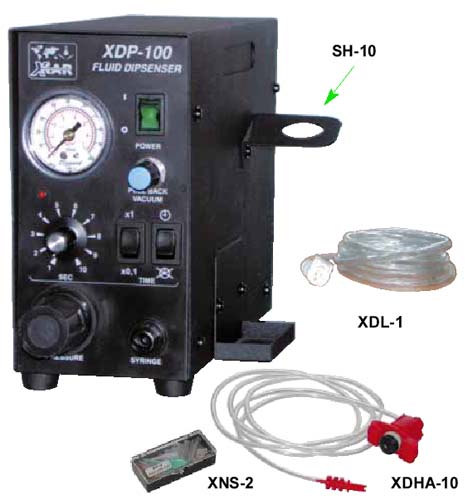

System includes

  • XDP-100 Base Unit
  • SH-10 Side mounted syringe holder for 10 cc syringe
  • XDHA-10 Dispensing Head Assembly for 10cc syringes
  • XFS-1 Foot Switch
  • XNS-2 Dispensing Tip Set
  • XDL-1 Compressed Air Connecting Hose

Specifications

Input Voltage

110-120, 220-240V AC
Power Consumption Max. 20 VA

Internal Voltage

24 V

Operating Pressure

2 to 100 psi (0,2 to 7 bar)

Air Source Shop Air or Compressor

Time Range

0.1 to 10 second

Weight 3.0 kg (6.6 lbs.)
System dimensions 225 x 166 x 88 mm
8.9" x 6.5" x 3.5"
Packaged weight 3.6 kg (8 lbs.)

Optional Equipment:

  • XDS-1 Universal Syringe Stand
  • XT Series - Tapered Dispensing Needles
  • XS Series - Stainless Steel Needles lengths 1/2" (12,7 mm) with Epoxy Hub
  • XNS-2 - Dispensing Tip Set
XDS-1 Universal Syringe Stand
XDS-1
  |  Print page



Order Now Part Number Description Price
USD
XS Premier stainless steel Dispensing Tips with plastic hub
XS-1 -14-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 14, olive, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -15-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 15, amber, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -18-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 18, green, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -20-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 20, ping, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -21-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 21, purple, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -22-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 22, blue, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -23-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 23, orange, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -25-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 25, red, bag of 250 pcs
Qty1 +
Price$26.98
XS-1 -27-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1", gauge 27, clear, bag of 250 pcs
Qty1 +
Price$26.98
XS-1/2 -14-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 14, olive, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -15-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 15, amber, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -18-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 18, green, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -20-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 20, ping, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -21-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 21, purple, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -22-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 22, blue, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -23-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 23, orange, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -25-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 25, red, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -27-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 27, clear, bag of 50 pcs
Qty1 +
Price$6.38
XS-1/2 -30-50 XS Premier stainless steel Dispensing Tips with plastic hub, length 1/2", gauge 30, lavender, bag of 50 pcs
Qty1 +
Price$9.58
XDP-100
XDP-100 -115V Precision Paste and Fluid Dispensing System (Small footprint) , 110-120V AC
Qty1 +
Price$399.90
XDP-100 -220V Precision Paste and Fluid Dispensing System (Small footprint) , 220-240V AC
Qty1 +
Price$429.90
XT Tapered Tips
XT -14-250 Tapered Tips, gauge 14, olive, bag of 250 pcs
Qty1 +
Price$23.96
XT -14-50 Tapered Tips, gauge 14, olive, bag of 50 pcs
Qty1 +
Price$5.78
XT -16-250 Tapered Tips, gauge 16, grey, bag of 250 pcs
Qty1 +
Price$23.96
XT -16-50 Tapered Tips, gauge 16, grey, bag of 50 pcs
Qty1 +
Price$5.78
XT -18-250 Tapered Tips, gauge 18, green, bag of 250 pcs
Qty1 +
Price$23.96
XT -18-50 Tapered Tips, gauge 18, green, bag of 50 pcs
Qty1 +
Price$5.78
XT -20-250 Tapered Tips, gauge 20, ping, bag of 250 pcs
Qty1 +
Price$23.96
XT -20-50 Tapered Tips, gauge 20, ping, bag of 50 pcs
Qty1 +
Price$5.78
XT -22-250 Tapered Tips, gauge 22, purple, bag of 250 pcs
Qty1 +
Price$23.96
XT -22-50 Tapered Tips, gauge 22, purple, bag of 50 pcs
Qty1 +
Price$5.78
XT -25-250 Tapered Tips, gauge 25, blue, bag of 250 pcs
Qty1 +
Price$23.96
XT -25-50 Tapered Tips, gauge 25, blue, bag of 50 pcs
Qty1 +
Price$5.78
Optional Equipment
XDS-1 Universal Syringe Stand
Qty1 +
Price$12.99
XNS-2 Dispensing Tip Set
Qty1 +
Price$12.99
