XmR Micro - Micro Rework System

CE Mark

XmR Micro - Micro Rework System

XmR Micro
Micro Rework System

XmR-Micro offers unique combination of convection and conduction tools. This digital newest system in the industry offers total process control and best performance and accuracy. It is simple and easy to use. It has a wide range of air flow (0,5 to 4.5 l/min), indestructible heater and quiet operation. XmR-Micro is very accurate and has precisely controlled and user-adjustable temperatures of both Hot Air Pencil for non-contact soldering and Iron for contact soldering. This is possible because the unit has unique, set by the user offset independent for each program setting. This is not found in any other tool in the industry. The setting may involve not only temperature, but also specific nozzle, and required for a particular task air flow. ESD safe. Both hand pieces equipped with non burn cords and air lines. A powerful controller offers functions like standby modes or individually adjustable offsets, which allow for setting exact temperatures at a working point. The temperature sensor for the soldering iron is attached directly to the tip, which guarantees accurate feedback for temperature control. PID control optimizes power delivery to the heaters, minimizing overshot and extending heaters and tools life. Desired temperature settings (up to 40 for each tool) can be stored in the internal memory for different tasks and recalled quickly to guarantee process control and repeatability.
The tool covers the full spectrum of temperatures, which can be precisely adjusted without the necessity to change cartridges.
Designed and ready for lead free soldering. ESD safe and equipped with non burn cords and air lines. Metal, indestructible housing guarantees long service for years to come. Ideal for rework, development laboratories and all places where smallest footprint in the industry and not found in other tools accuracy and repeatability is required.

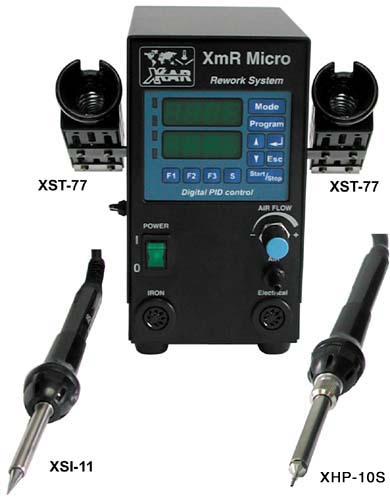

  System includes:
  • XmR - Micro Rework System Base Unit
  • XHP-10S - Hot Air Pencil
  • XHP-NS1 - Nozzle set (containing 3 nozzles XN-2, XN-3, XN-6)
  • XWR-1 - Nozzle Wrench
  • XASL-1 - Anti-seize Lubricant
  • XSI-11 - Soldering Iron
  • XST-77 - Tool Holder (2 pcs) for XSI-10S Soldering Iron and XHP-10S Hot Air Pencil
  • XSI-ST Sponge tray with sponge XSP-1
  Technical Specifications:
Input Voltage 110-120, 220-240V AC
Power consumption 160 W
Temperature Control System µP PID Control
Soldering Iron Ceramic heater 24V / 60W
Temperature Setting Range Room temp. - 842°F (450°C)
Insulation Resistance  Over 1000 MOhm
Leakage Voltage Less than 0.5 mV
Earth Resistance Less than 0.3 Ohm
Ripple Temperature Without Load  Less than ±1ºC
Hot Air Pencil  24V AC / 90W
Air Source High efficiency, long life diaphragm pump
Air Flow 0.5 to 4.5 l/min
Temperature Setting Range  392° - 788°F (200° - 420°C)
Weight 3.5 lbs. (1,5 kg)
System dimensions 3.5" x 6.5" x 6.5" (80 x 160 x 160 mm)
Packaged weight 6 lbs. (2,5 kg)

Instruction manual XmR Micro Micro Rework System

  Optional Equipment:

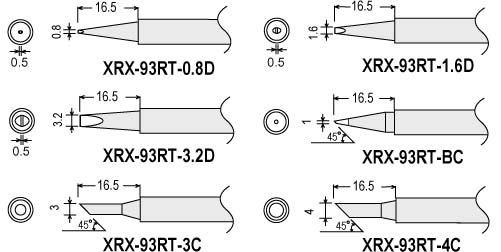

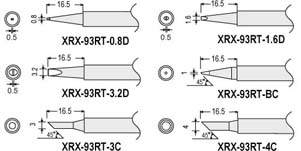

  • XRX Series - Tips for XSI-11 Soldering Iron
Click to enlarge
Click to enlarge Click to enlarge
XN-1 XN-2 XN-3
XN-1 XN-2 XN-3
XN-4 XN-5 XN-6
XN-4 XN-5 XN-6
XN-7 XN-8 XN-9
XN-7 XN-8 XN-9
    Nozzles contain in XHP-NS1 Nozzle Set
  |  Print page



Order Now Part Number Description Price
USD
XmR-Micro SMT Digital Rework/Repair Unit containing both Convection and Conduction Tools
XmR-Micro -115V XmR Micro - Micro Rework System , 110-120V AC
Qty1 +
Price$799.00
XmR-Micro -230V XmR Micro - Micro Rework System , 220-240V AC
Qty1 +
Price$799.00
XH Nozzles
XHP-NS1 Hot Air Pencil Nozzle Set (Includes nozzles: XN-2, XN-3, XN-6)
Qty1 +
Price$29.90
XN-1 Hot Air Pencil Nozzle #1
Qty1 +
Price$9.90
XN-2 Hot Air Pencil Nozzle #2
Qty1 +
Price$9.90
XN-3 Hot Air Pencil Nozzle #3
Qty1 +
Price$9.90
XN-4 Hot Air Pencil Nozzle #4
Qty1 +
Price$9.90
XN-5 Hot Air Pencil Nozzle #5
Qty1 +
Price$9.90
XN-6 Hot Air Pencil Nozzle #6
Qty1 +
Price$10.90
XN-7 Hot Air Pencil Nozzle #7
Qty1 +
Price$12.90
XN-8 Hot Air Pencil Nozzle #8
Qty1 +
Price$13.90
XN-9 Hot Air Pencil Nozzle #9
Qty1 +
Price$14.90
XRX-93RT Tips
XRX-93RT-0.8D Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-1.6D Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-1C Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-2.4D Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-2C Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-2D Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-3.2D Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-3C Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-4C Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-5K Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-B Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-BC Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-LB Tip for XSI-11
Qty1 +
Price$12.90
XRX-93RT-SB Tip for XSI-11
Qty1 +
Price$12.90
