Full Convection SuperOven. Unmatched Performance.                                Viewing windows on all sides.  PCB heting/cooling rates up to 3 deg.C/sec.  User programmable fast cooling media flow control. Built-in Data logger and Residual O2 Monitor.

MicroOven for cellular phone and tablets repair
Qty1 +
Price$799.90

X-100 MicroOven  Full Convection Oven designed for preheating cellular phones and tablets when replacing broken glass. Uniform heat with maximum setting of 90 degrees. Will preheat the cell phone in a matter of single minutes. Easy to use. Can operate continuously to maintain constant temperature at all times.

Other applications:

1. Preheating solder paste before use with stencils or dispensers after taking it from cold storage,

2. Curing epoxies, board coatings etc.


Full Convection Mini Oven with N2 input for reflow of small boards and Re-balling. Has built-in accelerated cooling by shop air or N2.

Especially designed for Re-Balling and LEAD FREE Soldering of boards up to size 6”x 4.7”.



Full Convection, Bench Top  SuperOven.

The most advanced Convection Batch Oven ever made for all heating/cooling tasks demanding the highest level of process control.

MANUAL

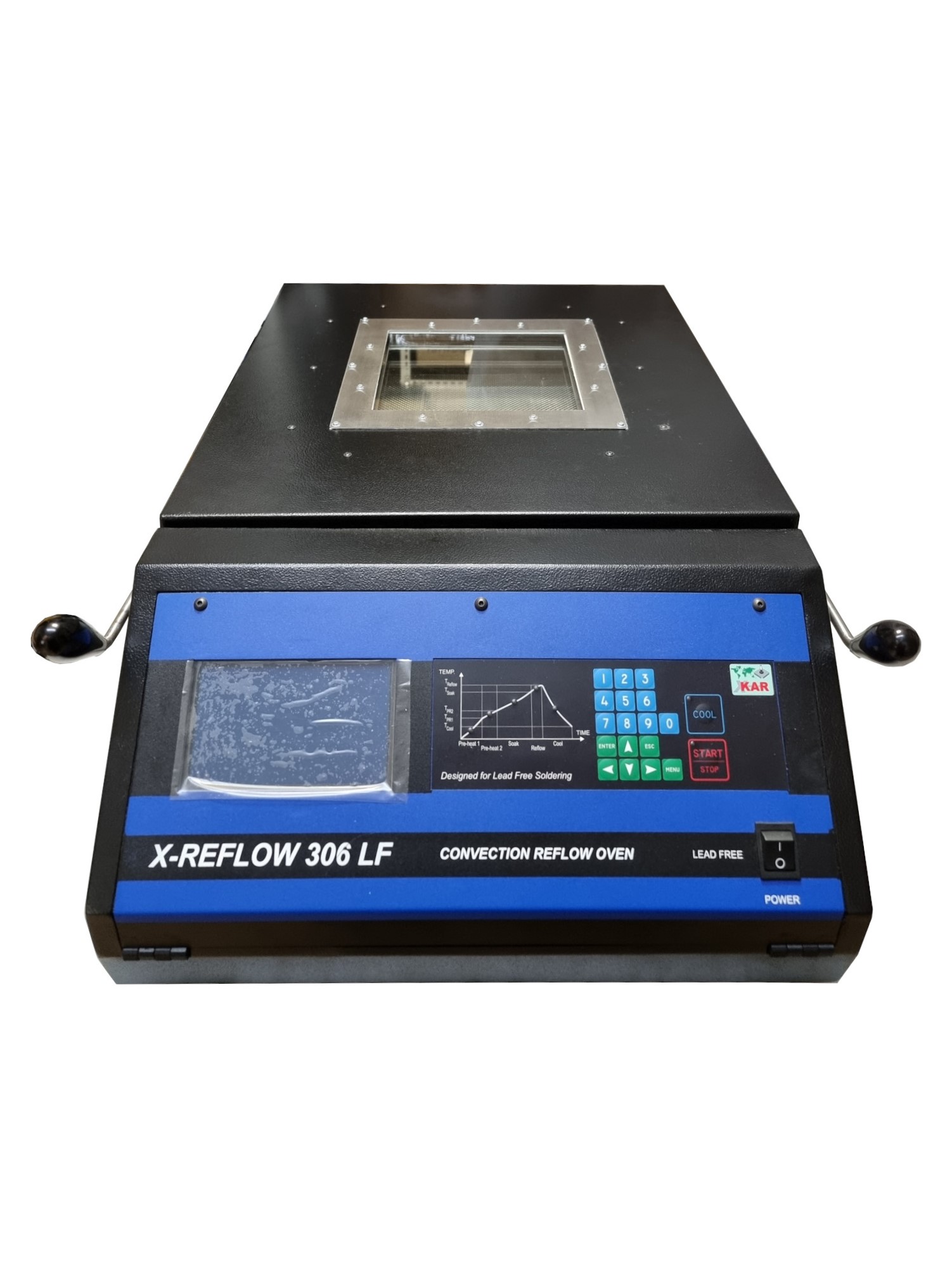

Full Convection, Bench Top, Batch oven Nitrogen Ready. Powerful, Accurate, Reliable.

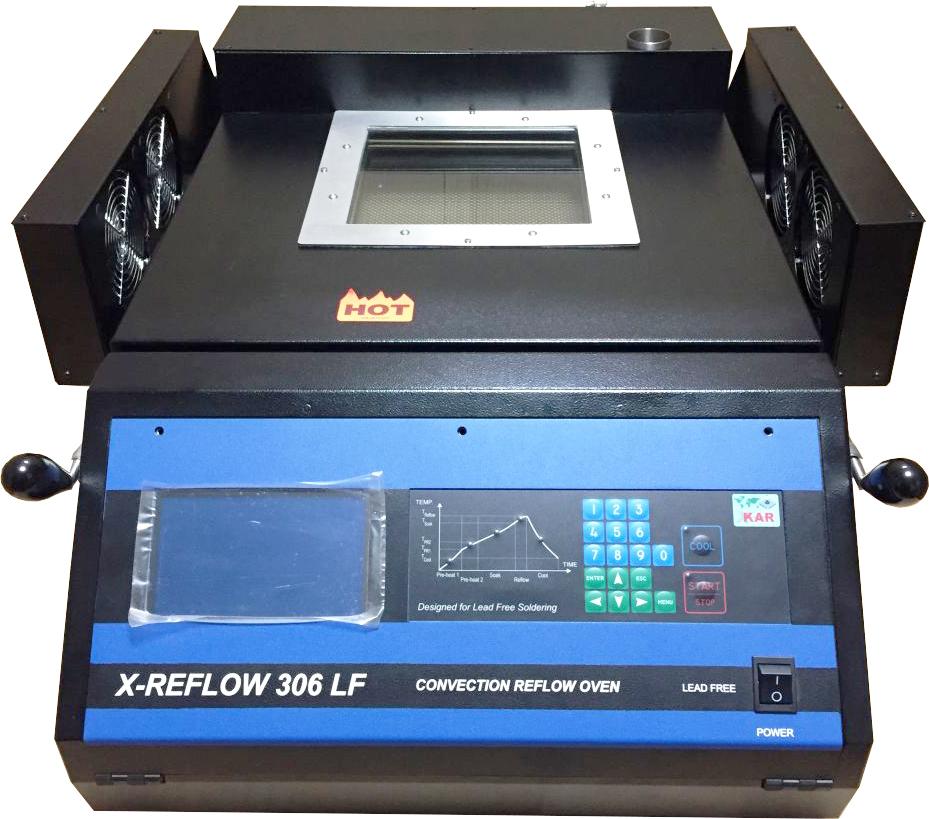

Full Convection, Bench Top, Batch oven Nitrogen Ready and with proprietary Advanced Fast  Cooling System. Note: One demo unit Rev 0 available at the price of $ 4000.00

Each X-Reflow306 Oven, like no other in the industry, is equipped with the exhaust shut-off valve which maintains the fumes inside the oven during the heating cycle.

Upon the entrance of the cooling air the exhaust valve opens and the oven is flashed with fresh cold air. The exhaust port can be connected to the factory ventilation system exhaust,

If it is desired to return this air to the room, the oven exhaust port needs to be connected to the HEPA filtration unit X-306A FumeExtract offered by the X-KAR Brand

The Advanced Cooling System in the model X-Reflow306 LF-AC, when connected to pressurized airline (known as shop air) cools the soldered PCB's at much quicker rate than it is possible in regular ovens. This provides better reliability of soldering connections, and better safety for the Operators handling the boards.

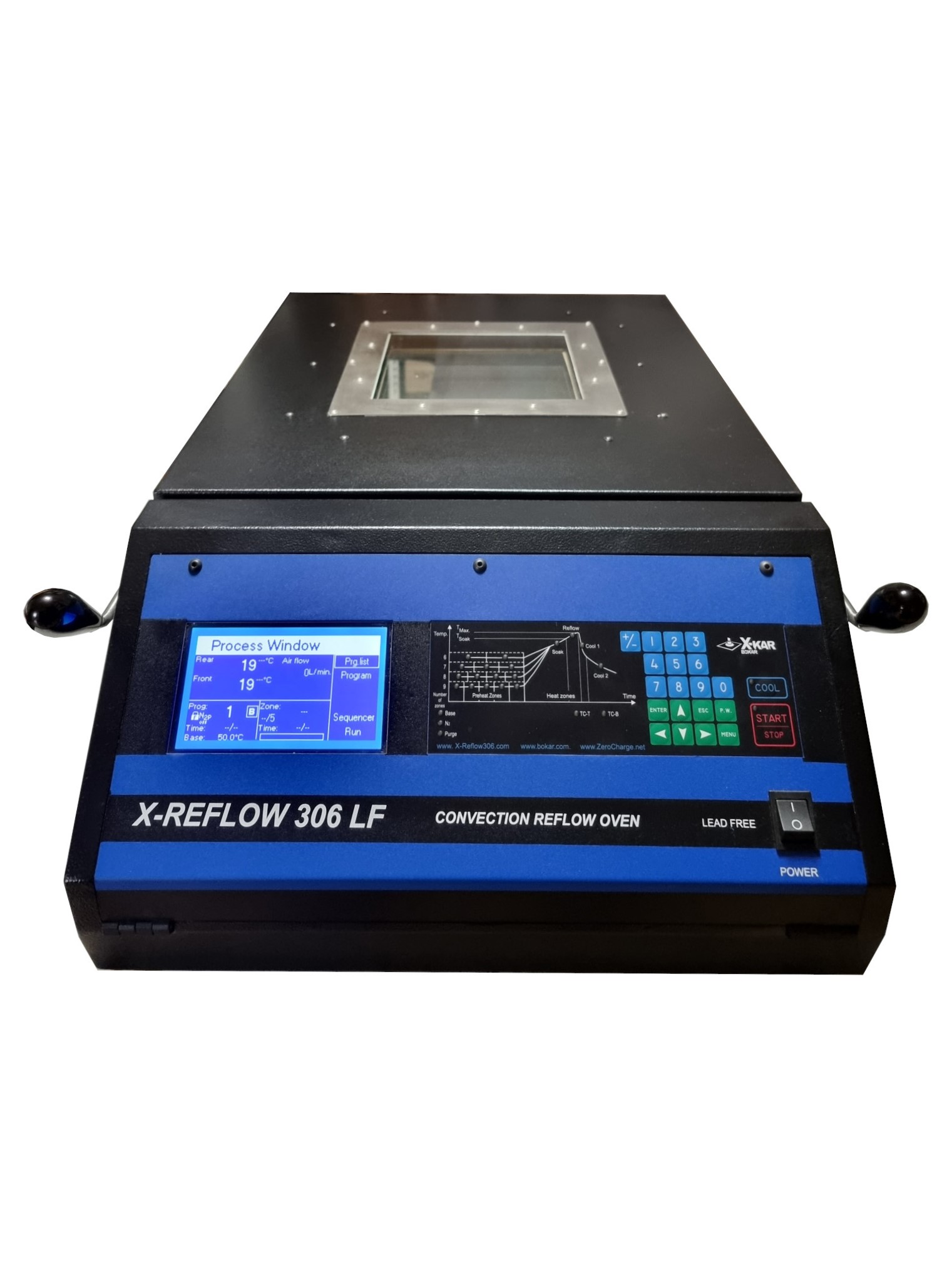

Full Convection, Bench Top, Batch oven, Nitrogen Ready and with proprietary Advanced Fast Cooling System

MANUAL

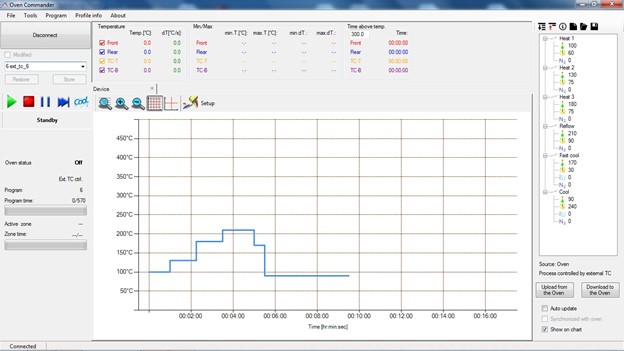

Process Monitoring Software which displays on a PC or Laptop the graphs of  temperature versus time

Residual O2 Monitor
Qty1 +
Price$1,799.80

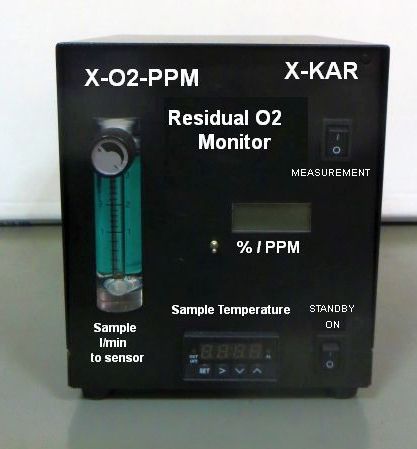

X-O2 PPM Residual O2 Monitor

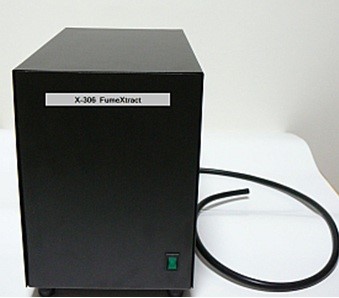

Exhaust Fume Extractor with HEPA Filtration for X-Reflow306 LF-AC and X-Reflow306/S..

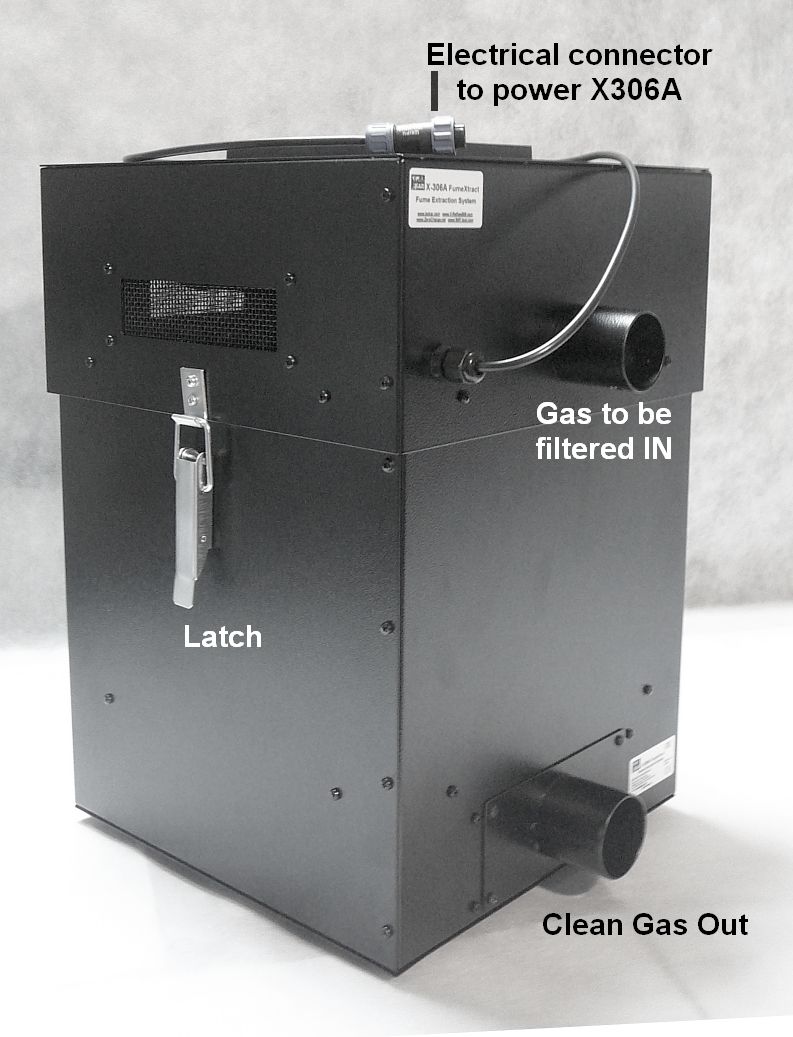

Exhaust Fume Extractor with HEPA Filtration for  X-Reflow306 LF-AC and X-Reflow306/S.

ESD Cart for X-Reflow 306 Ovens.  Conductive, no marking wheels. Top shelve: ESD, two layer non burn rubber mat. Extended top shelf with an overhang at the back. Middle shelf to accomodate oven accessories, profilers etc. Grounding wire included.

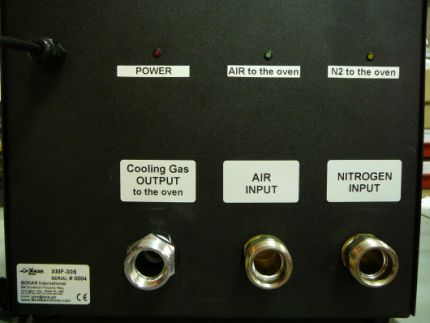

XFM-306 Advanced Cooling Controller -Mass Flowmeter for electronic control or cooling media in X-Reflow306S Scientific Ovens

The complete set of hardware and instructions to install on X-Reflow306 LF to change this oven to X-Reflow LF-AC and be able to cool the PCB's after reflow to close to room temperatures in approx. 300 to 400 sec.


Front Heater for X-Reflow306 ovens specified for input voltage 208V AC

Rear Heater for X-Reflow306 ovens specified for input voltage 208V AC

Front Heater for X-Reflow306 ovens specified for input voltage 230V AC

Rear Heater for X-Reflow306 ovens specified for input voltage 220-230V AC

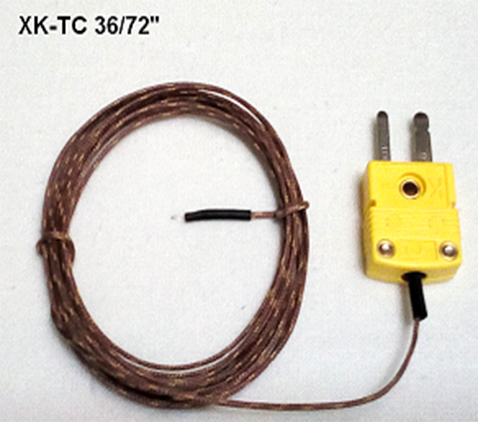

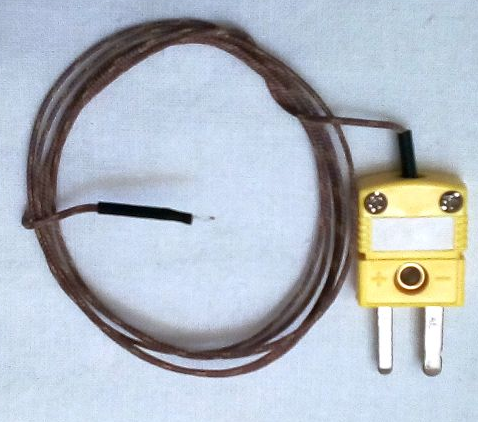

Replacement  “K” type, isolated thermocouple for X-Reflow306 Ovens

Replacement  Seal for X-Reflow306 Ovens Top Clam-Shell

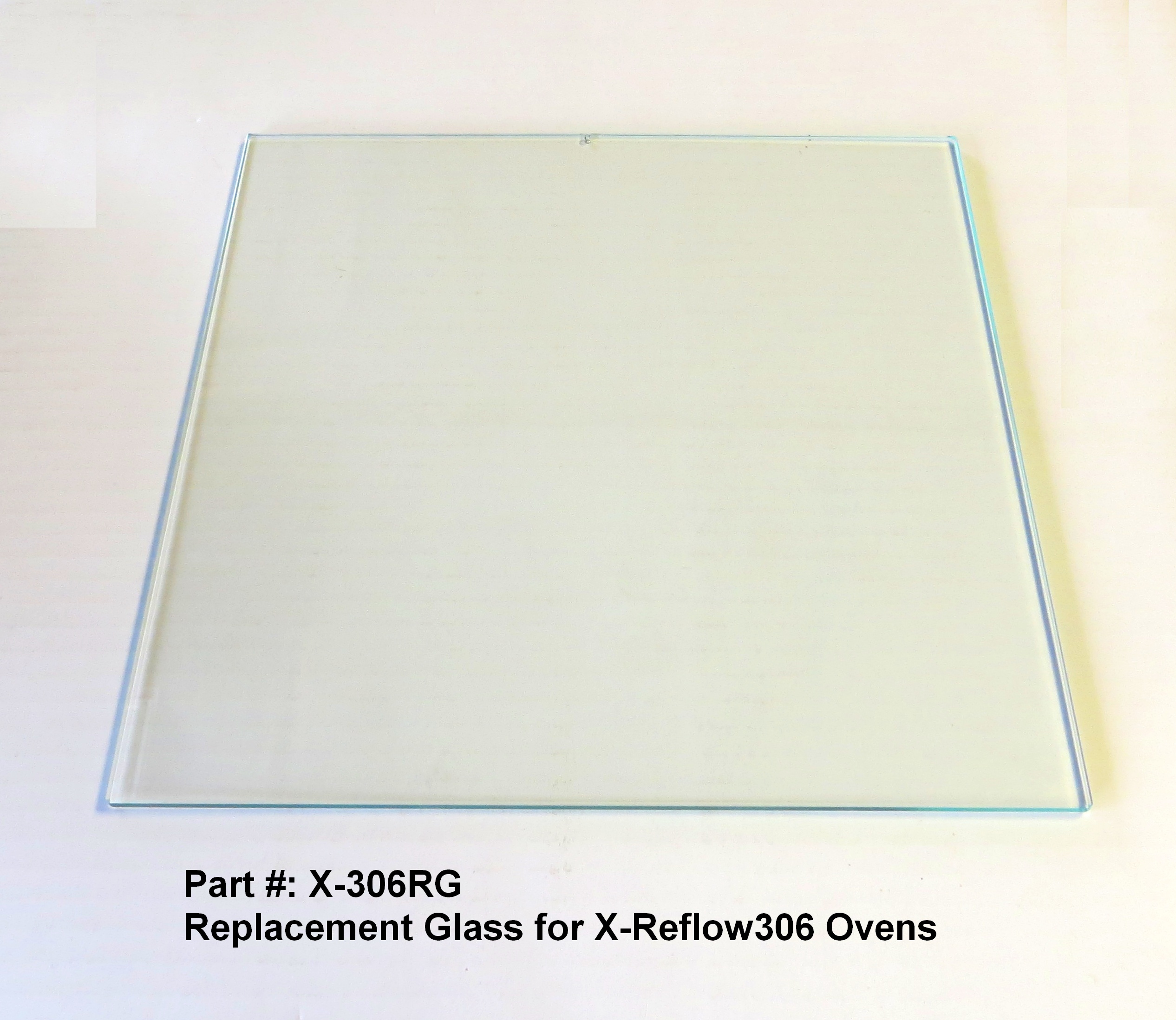

Replacement  Glass  for X-Reflow306 Ovens Top Clam-Shell window

Low Cost unit . Run only few times. Has, not effecting operation, chipped corner of top panel.  Great value for prototyping, pre-heating boards which are 8

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
