Programmable SMT Rework/Repair Unit / Rework Systems Controller

FOCUS "X" Digital SMT Convection Rework System has been designed to perform safe and efficient rework of SMD and BGA components. Microprocessor Profile Controller allows the operator to select or pre-program the appropriate removal or placement profile and start the rework sequence. Removal and placement profiles can be stored, recalled and edited with the touch of a button to guarantee process control. The profiles can be locked to eliminate operator adjustment. Programming is user friendly and can be learned in a matter of minutes.

FOCUS "X" offers 3 modes of operations: Lift Mode with 1 pre-programmed removal profile and 40 user programmable profiles, Placement Mode with 1 pre-programmed profile and 40 user programmable profiles and Hand Mode with pre-programmed maximum temperature and 40 user programmable pre-set maximum temperatures.

Lift and Place Modes offer five (5) time/temperature zone control and also pre-programming of temperature settings of the bottom pre-heater in each of the 5 zones.

The system has several unique features, which makes rework more accurate, safer and consuming less of valuable time.

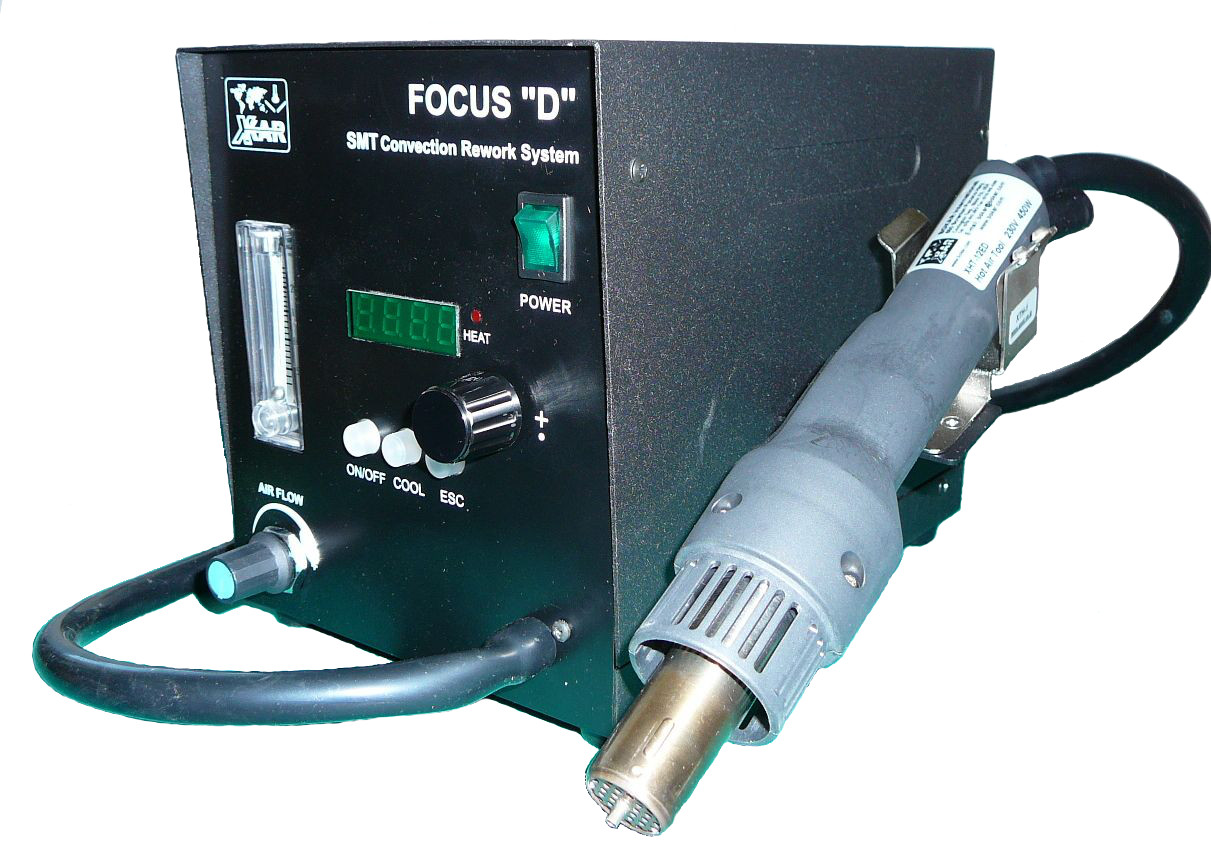

Convenient convection rework system with digital display.

Features:

  • Removes and replaces discrete, SOIC, PLCC, QFP  and other SMD components
  • Closed-loop, variable temperature control
  • Fully grounded and static-safe system
  • Optical isolation with zero voltage switching
  • Over 50 nozzles available

SMT Convection Rework System with Nitrogen Connections and vacuum pick-up

Features

  • Removes and replaces Discrete, SOIC, PLCC and QFP components
  • Closed-loop, variable temperature control
  • Fully grounded and static-safe system
  • Optical isolation with zero voltage switching
  • Over 50 standard nozzles available

SMT Convection Rework System with vacuum pick-up

Features

  • Removes and replaces Discrete, SOIC, PLCC and QFP components
  • Closed-loop, variable temperature control
  • Fully grounded and static-safe system
  • Optical isolation with zero voltage switching
  • Over 50 standard nozzles available

SMT Convection Rework System

Features

  • Removes and replaces Discrete, SOIC, PLCC and QFP components
  • Closed-loop, variable temperature control
  • Fully grounded and static-safe system
  • Optical isolation with zero voltage switching
  • Over 50 standard nozzles available

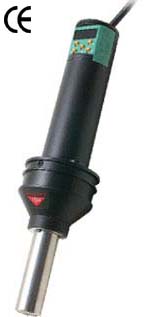

HOT AIR REWORK BASIC

This Basic Tool will allow anyone to solder and de-solder most of SMD components from variety of PCB's. It was designed to be a low cost solution for companies which do SMT Rework occasionally.

The B-HAB Hot Air Tool is portable and can be easily used in the field.


Mini Convection Rework Systems with small grip handle and for smaller components sizes

Features

  • Removes and replaces Discrete, SOIC, PLCC and QFP components
  • Closed-loop, variable temperature control
  • Fully grounded and static-safe system
  • Optical isolation with zero voltage switching
  • Over 10 standard nozzles available

  • Foot Switch
  • Nozzle Insertion/Removal Tool
  • Vacuum Cup Insertion/Removal Tool
  • Nozzles holders
  • Vacuum Cup Set

  • BGA, QFP, PLCC, SOIC, SOJ and Discrete
  • Best Performers in the industry
  • Low flow resistance, low mass with quick connect and competitively priced

  • BGA/CSP, QFP/BQFP, SO/SOL and Discrete
  • Best Performers in the industry
  • Low flow resistance, low mass
