Solder Pots

POT-11C, POT-21C, POT-22C

Enable to have temperature setting freely within a range of approximately 270~530°C.
Noise free temperature control circuit incorporates zero-crossing switching system.
LED pilot lamp during heater in operation.
Adopted new designed heater enables long lasting.
Used anti-corrosion and durable solder bath.
Built-in stainless steel waste solder tray for excellent convenience.
Applicable wide range of pre-soldering work. (e.g. Urethane wire, Large terminals, connector, big lead wires.).
Optimum working temperature within approx. 260 - 520°C.
Diameter 36mm inner bath enables pre-soldering of urethane wire, large terminal and etc.

PERFECT SOLDERING WORK
WITHIN ±1.25% OF SET TEMPERATURE

POT-11C	POT-21C	POT-22C	POT-23C
For preparational solder-dipping of lead wires etc.	Suitable for preparational solder-dipping of large terminals, urethane wires, connectors, and big lead wires.	Fitted with specially processed lead-free applicable solder bath. Suitable for preparatory soldering of relatively large parts. (PAT.P)	Stable solder composition is maintainable because the elements of the bath do not contaminate the solder, compared to metallic baths.

Technical Specifications

Model	POT-11C	POT-21C	POT-22C	POT-23C
Voltage	110, 120, 130, 220, 240V AC 50/60Hz
Power Consumption	90W	130W
Unit Dimensions	90x150x90mm	90x150x95mm
Solder Bath Material	Stainless Steel	Stainless Steel	Stainless Steel (Specially processed)	Ceramic
Bath Temperature	260-520°C	270-530°C
Melting Time	Approx. 10 mins. (at max. setting)
Solder Capacity	100g	300g
Internal Pot Dimensions	φ25x25(H) mm	φ36x36(H) mm		φ31x39(H) mm
Weight	670g	720g
Power Cord	1.5m (3 core cable) ground plug

Replacement Parts

	POT-11C Heater	POT-11CH
	POT-21C Heater	POT-21CH
	POT-22C Heater	POT-22CH
	POT-11C Batch	POT11CP
	POT-21C Batch	POT21CP
	POT-22C Batch	POT22CP
	POT-23C Batch	POT23CP

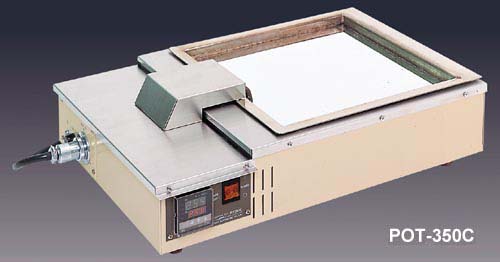

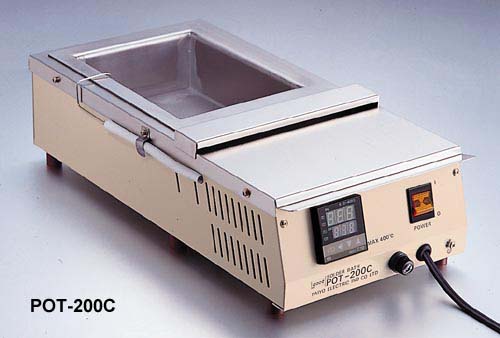

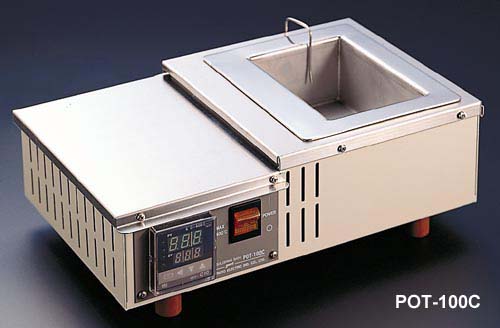

POT-100C/200C/350C

Durable stainless made Baths. Quick response to match the setting temperature with P.I.D. control circuit (POT-100C, 200C, 350C). Built-in Alarm Lamps for temperature abnormality and open circuit of looped heater elements (POT-100C, 200C, 350C).

Dual digital display provides set and measured temperature values.
PID control system minimizes deviation between solder temperature and set temperature values.
Excellent accuracy of set and measured values Minimal tolerance is ±{(displayed value x 1.25%) + 1^oC}
Built-in warning indicator to detect beyond the upper and lower limit temperature range.
Durable sheathed heater. (POT-350C)
Stainless steel solder pot with superior durability and corrosion resistance.
Separated structure of solder pot and heater allow for simple replacement of each part. (POT-100C, POT-200C)
Replacement parts: Heater, Solder Pot, Sensor and Heat insulation board.

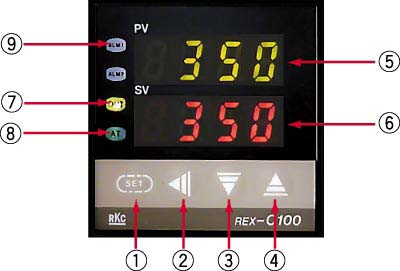

Parts names and functions of control panel (Common to all models)

1. SET key

Registration of set value
Changing modes and parameters
Changing PV. SV. display mode or setting mode of parameters

2. SHIFT key

Changing set value, move the cursor to a digit to be changed.

3. DECREMENT key

For decreasing value when changing set value

4. INCREMENT key

For increasing value when changing set value.

5. Measured value (PV) display unit [Green]

Display measured value (PV)
Display parameter symbol at parameter setting mode

6. Set value (SV) display unit [Orange]

Display set value (SV)

Indicate set value of parameter symbol displayed on (PV) display unit at parameter setting mode.

7. Control output (OUT) Lamp [Green]

Lights up when control output is ON

8. Auto-tuning (AT) Lamp [Green]

Blinks in auto tuning mode

9. Alarm (ALM) Lamp [Red]

Lights up when alarm is ON

Technical Specifications

MODEL	POT-100C	POT-200C	POT-350C
Voltage	110-130V AC, 220-240V AC	110-130V AC, 220-240V AC	220-240V AC
Power Consumption	440W	720W	2.5kW
Max. Temperature	350°C	400°C	350°C
Control System	PID Control
Dimensions / mm Dimensions / inch	220(L) x 350(W) x 127(H) 8.7(L) x 13.8(W) x 5(H)	210(L) x 446(W) x 127(H) 8.3(L) x 17.5(W) x 5(H)	568(L) x 370(W) x 160(H) 22.4(L) x 14.6(W) x 6.3(H)
Solder Pot Dimension / mm Solder Pot Dimension / inch	91(L) x 135(W) x 60(H) 3.6(L) x 5.3(W) x 2.4 (H)	130(L) x 180(W) x 60(H) 5.1(L) x 7(W) x 2.4(H)	300(L) x 300(W) x 82(H) 11.8(L) x 11.8(W) x 3.2(H)
Weight	About 4kg (8.8 lb)	About 5.5kg (12.1 lb)	About 13kg (28.6 lb)
Max. Solder Volume	About 5.5kg (12.1 lb)	About 9.5kg (21 lb)	About 50kg (110 lb)
Cover	Stainless Steel Sheet
Solder Pot	Stainless Steel
Set Accuracy	±[(1.25% of display temperature) + 1^oC]
Power Cord	3 conductors with grounded plug		3 conductors without plug

Replacement Parts

	POT-100C Heater	POT-100CH
	POT-200C Heater	POT-200CHS
	POT-350C Heater	POT-350CH
	Ground Plug Adapter	P-10

Solder Bars, Chunks and Pure Wire

SN100C is a lead-free solder alloy developed by Nihon Superior in Japan that is comprised of tin, copper, and a small amount of nickel
SAC305 is a lead-free alloy that contains 96.5 % tin, 3% silver, and 0.5% copper.
Sn63/Pb37 Solder

P.C.B. Holder For Dipping

PCB-1

Hold P.C.B. Firmly.
Best matched to GOOT SLM-1 SOLDERING MASTER.

Available solder bar or ingot for soldering bath, inquire to regional distributor.

PCB-1

Previous page | Print page

Part Number

Description

Price
USD

Low Cost Professional Solder Pots

POT-11C/12

Solder Pot, Dim. /mm dia.25x25 , 120V

Qty	1 +
Price	$94.99

POT-21C/12

Solder Pot, Dim. /mm dia.36x36 , 120V

Qty	1 +
Price	$129.13

POT-21C/22

Solder Pot, Dim. /mm dia.36x36 , 220V

Qty	1 +
Price	$129.99

POT-21C/22-CE

Solder Pot, Dim. /mm dia.36x36 , 220V, CE

Qty	1 +
Price	$129.99

POT-22C/22-CE

Ceramic coat Solder Pot, Dim. /mm dia.36x36 , 220V, CE

Qty	1 +
Price	$201.99

POT-22C/12

Ceramic coat Solder Pot, Dim. /mm dia.36x36 , 120V

Qty	1 +
Price	$193.99

POT-23C

Ceramic Solder Pot, Dim. /mm dia.31x39

Get quote

POT-100C/12

Solder Bath, Dim. /mm 91X135X60 , 120V

Qty	1 +
Price	$1,176.18

POT-100C/22-CE

Solder Bath, Dim. /mm 91X135X60 , 220V, CE

Qty	1 +
Price	$1,176.18

POT-200C/12

Solder Bath, Dim. /mm 130X180X60 , 120V

Qty	1 +
Price	$1,050.99

POT-200C/22-CE

Solder Bath, Dim. /mm 130X180X60 , 220V, CE

Qty	1 +
Price	$1,041.99

POT-350C/22-CE

Solder Bath, Dim. /mm 300X300X82 , 220V, CE

Qty	1 +
Price	$1,799.90

Bar Solder

B-SAC-0.5b

SAC305 Lead Free Bar Solder, bar dimension 6 1/2" x 1" side Triangle, 1/2 bar, 1.25 lb

Qty	1 +
Price	$35.99

B-SAC-1b

SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar, 2.5 lb

Qty	1 +
Price	$69.90

B-SAC-2b

SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 2 bars, 5 lb

Qty	1 +
Price	$134.90

B-SAC-10b

SAC305 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars, 25 lb

Qty	1 +
Price	$669.90

B-SN100-1b

SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 1 bar, 2.5 lb

Qty	1 +
Price	$42.90

B-SN100-2b

SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 2 bars, 5 lb

Qty	1 +
Price	$84.90

B-SN100-10b

SN-100 Lead Free Bar Solder, bar dimension 13" x 1" side Triangle, 10 bars, 25 lb

Qty	1 +
Price	$419.90

C-CH-1

Sn63/Pb37 Solder in Chunks, 14 chunks, 1 package = 1lb

Qty	1 +
Price	$16.90

C-CH-10

Sn63/Pb37 Solder in Chunks, 140 chunks, 1 package = 10lb

Qty	1 +
Price	$149.00

Replacement Parts

POT-21CP

Stainless steel solder pot, R/part for POT-21C

Qty	1 +
Price	$22.99

POT-22CH

Spare Heater

Qty	1 +
Price	$39.00

POT-22CP

Titanium coat solder pot, R/part for POT22C

Qty	1 +
Price	$102.99

POT-23CH

Spare Heater

Qty	1 +
Price	$59.00

POT-23CP

Spare Solder Bath

Qty	1 +
Price	$99.90

POT-350C-BATH

Solder Bath, R/part for POT-350C

Qty	1 +
Price	$219.90

Optional Equipment

PCB-1

PCB Hanger for dip soldering

Qty	1 +
Price	$24.90

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
