ASFF-9 Free Standing, One Touch Wrist Strap and Dual
Footwear Test System |
- Two in one instrument to check both wrist straps and footwear.
- Extremely easy to use. Just touch one Test Button to complete the test.
- Built using SMT technology for reliability.
- Microprocessor controlled for accuracy.
- Dependable and simple.
- Pass tone is easy to hear.
- Visual indicators to show pass, low or high fail and low battery
condition.
|
The wrist strap and independent footwear tester system was created to fill a
growing demand for a dependable, low cost and easy-to-use test mechanism for
personnel grounding devices. It is available as ASFF-9U Tester, (U.S. standards)
a 750-kohms to 10-Mohms range for wrist straps and 750kohms to 100Mohms range
for footwear and ASFF-9E Tester (European standards) a 750-kohms to 35-Mohms
range for both wrist straps and footwear
- AR-9 One Touch Wrist and Footwear Tester with 9V battery
- AR-9-SP - Post, Connecting wire and Plate with test
instructions for ASFF-9 Unit
- A FP2 - Dual Foot plate
- Manual
|
ASFF-9U (U.S.A. Parameters) |
ASFF-9E (European Parameters)
For both wrist straps and foot wear |
|
Wrist Straps |
Foot wear |
| Pass Level |
750 kohm-10 Mohm;
green light and audible tone |
750 kohm-100 Mohm;
green light and audible tone |
750 kohm-35 Mohm;
green light and audible tone |
| Low Fail |
< 750 kohm;
yellow light no tone |
< 750 kohm;
yellow light no tone |
< 750 kohm;
yellow light no tone |
| High Fail |
> 10 Mohm;
red light no tone |
> 100 Mohm;
red light no tone |
> 35 Mohm;
red light no tone |
|

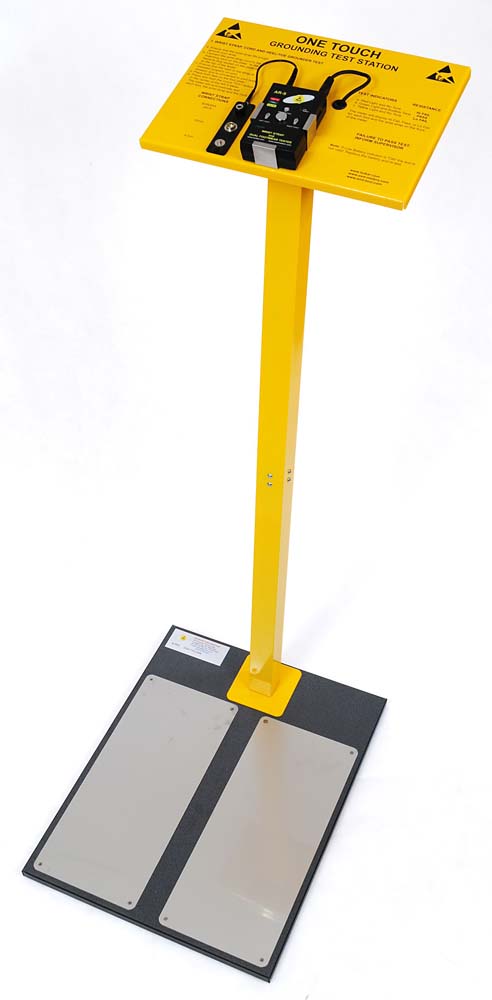

ASFF-9
Plate with test instructions
and One Touch Wrist
and Footwear Tester |
 |
Part Number |
Description |
Price
USD |
|
|
ASFF-9U |
Free Standing, One Touch Wrist Strap and Dual Footwear Tester , (U.S.A. Parameters) |
| Qty |
1 - 9 |
10 - 19 |
20 + |
| Price |
$649.90 |
$629.90 |
$619.90 |
|
|
|
ASFF-9E |
Free Standing, One Touch Wrist Strap and Dual Footwear Tester , (European Parameters) |
|
