Product Brands > Bomir Low Cost
Bomir Brand of Tools

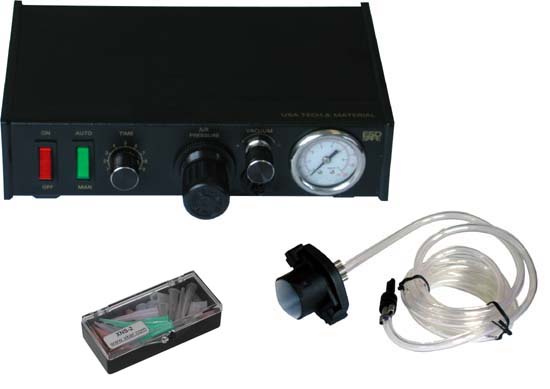

BM-100 - Dispensing Controller
|
|
BM-100 is a state of the art dispensing unit capable of dispensing fluids of very wide viscosity range (from water-like to heavy solder pastes).
Automatic Liquid Dispenser with time control, to push the liquid
pneumatically, controlled by timer, to be sure the same dispensing drops
and dispensing cycle time, regulated the air pressure with suitable tip at
your equipment of the different liquids as glues, greases, solder pastes.
Features:
- Constant flow solenoid.
- Adjustable pull-back for controlling the drip of fluid between dispense cycles
- Timing adjustment in 0.01, 0.06, 0.16 or 0.26 seconds increments.
System includes
- Base Unit
- Dispensing Head Assembly for 10cc syringes
- Dispensing needle set
|
 |
Technical Specifications
|
Input Voltage
|
110-130V AC
220-240V AC |
|
Internal Voltage
|
24 V
|
|
Operating Pressure
|
2 to 100 psi (0,2 to 7 bar)
|
|
Time Range
|
0.01 to 30 second
|
| Cycle Initiation |
Maintained or Momentary |
| Repeat Tolerance |
± 0.5% |
| Air Source |
Shop Air or Compressor
2.5 - 7 bar (25-100 psi) |
| Air Output |
0.1-5.5 bar (1-78 psi) |
| Weight |
2.20 kg (6.6 lbs.) |
| System dimensions |
235 x 225 x 63 mm
8.9" x 6.5" x 3.5" |
|
B-MAGLIGHT
ECONO ILLUMINATED MAGNIFIER
|
Features:
- Table top magnifying lamp with clamp
- Input voltage: 110V 60Hz or 220V 50Hz
- Power: 22W (Fluorescent Light Bulb)
- Magnification: 3X
- Lens diameter: 4.92" (125mm)
- Color: light grey
Applications:
- Bench top additional light source for assembly, rework or inspection
- Office use
|
 |
| This is a low cost unit to provide an additional light,
where is needed. Adjustable arm with springs allows positioning of the
lamp head with magnifier at desired location. |
B-SST-5 - SOLDER REEL STAND
|
 |
Features:
- Allows to keep your bench neat
- Wire is drawn from the roll smoothly
- Has heavy base to stay firmly on the bench
- Max. 2.2 lbs. (1 kg.) roll of solder wire can be
used
Technical specification
| Shaft Diameter |
0.59" (15mm) |
| Dimensions |
3.39" x
4.49" x 3.07"
(86 x 114 x 78 mm) |
| Wight |
1.21 lbs. (550g) |
|
BMV-1 Mini Vise
|
 |
Friendly Universal Holder helpful in testing or
assembly
No screws. Lever-operated suction cup holds tightly
and instantly on non-porous smooth surfaces such as
glass, metal or laminated surfaces such as Formica. Max
opening: 1-1/4"
|
 |
Part Number |
Description |
Price
USD |
| Bomir Low Cost |
|
|
B-LT |
NON CONTACT LASER THERMOMETER |
|
|
|
BM-100-115 |
Fluid Dispensing System, 110-120V AC |
|
|
|
BM-100-230 |
Fluid Dispensing System, 220-240V AC |
|
|
|
B-MAGLIGHT-115V |
ECONO ILLUMINATED MAGNIFIER, 110-120V AC, 60Hz |
|
|
|
B-MAGLIGHT-230V |
ECONO ILLUMINATED MAGNIFIER, 220-240V AC, 50Hz |
|
|
|
B-SST-5 |
Solder reel stand |
|
|
|
BMV-1 |
Mini Vise |
|
