  1. Fictures & Production Accessories
  2. Axial, radial and DIP lead forming equipment
Axial and Radial Lead Forming

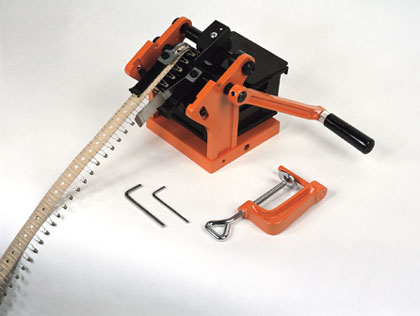

Axial Lead Former Model SLB400
  • Produce up to 25,000 taped or 1,200 loose components per hour
  • Protect components from mechanical stress and tension
  • Several models for different pitch and material thickness
  • Optional motor, loose-parts feeder and reel holder
    Click here for schematics.
MODEL - Adjustable
A

max.
B

 min.
C		 min.
D		 min.
E		 min.
F		 Adjustable
max. G		 max.
0 d
SLB400

mm

 6-40 15 3.6 1.2 20 1.2 15 0.8
in 0.236-1.575 0.59 0.142 0.047 0.787 0.047 0.59 0.031
SLB400S mm 5-40 15 3.6 0.7 20 1.2 15 0.5
in 0.197-1.575 0.59 0.142 0.027 0.787 0.047 0.59 0.02
SLB400T mm 5-40 15 3.6 0.7 20 1.2 15 1.2
in 0.197-1.575 0.59 0.142 0.027 0.787 0.047 0.59 0.047
SLB400L mm (Same specifications as SLB400 but comes with special feed gear with 18 teeth for use with loose-parts feeder.)
in

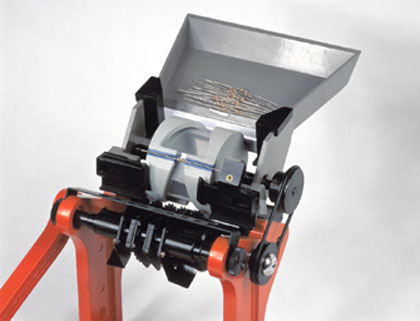

Loose Parts Feeder SLB403
Attach the feeder to the SLB400 for feeding loose components

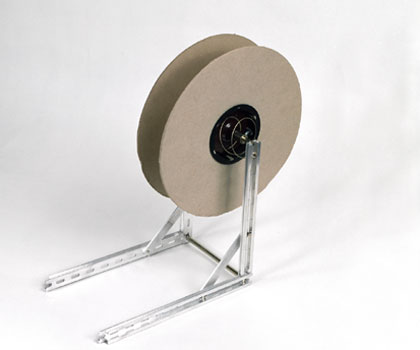

Reel Holder SLB404
Use for fully automatic operation with the motor drive

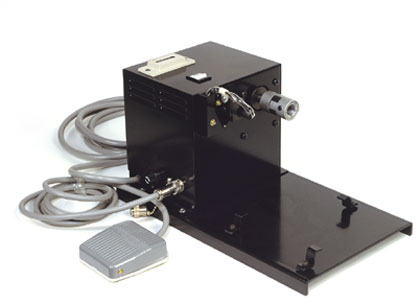

Electric Drive Unit SLB402
  • SLB400 and SLB401 can be installed on the electric drive for fully automatic processing
  • Foot-pedal switch or continuous operation
  • Installed counter for use with kitting parts
  • Model SLB402 for 110V, SLB402S for 220V
Radial Component Cutter Model SLB401
  • Cut components from single bandoliers
  • Fully adjustable leg length of 1.5mm to 12.5mm
  • Process up to 12,000 parts per hour

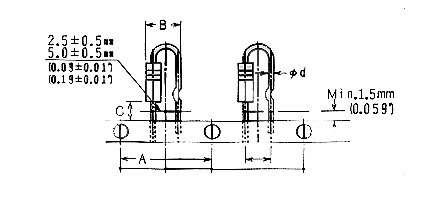

    Click here for a schematic.
MODEL

A

B

C

max 0 d

Production Rate
SLB401 mm 12.7 13.0 1.5-12.5 1.2 12,000 / hr
in 0.50 0.51 0.06-0.49 0.04
SLB401S mm 15.0 16.0 1.5-12.5 1.2 12,000 / hr
in 0.59 0.63 0.06-0.49 0.04
DIP Lead Reformer
  • Reforms leads on .300" and .600" DIPs for easier PCB insertion
  • Optional inserts available for .750" and .900" DIPs
  • Roller bearings with gap adjustment from 0 to .060" (factory set at .017")
  • Fabricated in hard-coat anodized aluminum
  • ESD safe - will not generate static; snap for attaching ground strap is included
  • Measures 5" x 3" x 1.5"; weighs 1 lb.
  • Part number DLS-360; inserts are DLS-750 and DLS-900
Set 'n Bend


The Set 'n Bend is an easy-to-use tool for measuring printed circuit board hole spacings and accurately bending jumper wires or axial lead components to that identical spacing.

  • Bend leads 1/16" from the component body up to 2-1/8" center to center
  • Measure with a precision scale available in inches or millimeters to an accuracy of .050"
  • Constructed of steel and anodized aluminum
  • Bend components for horizontal or vertical mounting
  • Use to scribe PCBs
  • Ideal for bending jumper wires
  • Stainless measuring pins are 1-1/4"L x 3/32" diameter to fit the densest board
  • P/N SB-1
