Standoff Measuring Instrument |
 |

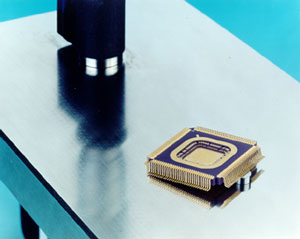

The operator zeros the digital micrometer, then places a formed part over the ground pin on the ground steel surface. The operator then turns the micrometer until the packages rotates, indicating the pin has contacted the bottom of the package. Simple and quick!
Click here to see line drawings.
Click here to download the PDF Tooling Newsletter about the Standoff Measuring Tool.
