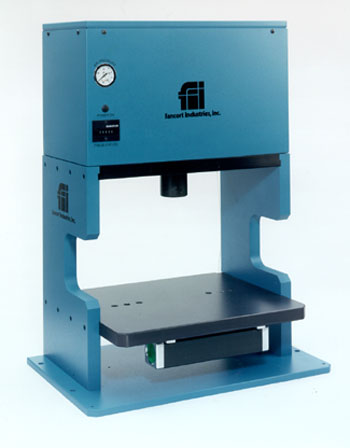

5000L Model |
- Shipped ready to run; just connect with air
- C-frame design with open sides for robotic loading
- 4" stroke with 5" or 6" bore cylinder options
- ¾ ton at 80 PSI with 5" bore
- Rigid construction of 1" thick aluminum plates
- Painted blue enamel, with anodized tool plate
- Six die mounting holes in tool plate
- Quick-change die holder in the ram
- Two-hand safety system, speed control and filter/regulator assembly
- Upper shroud with counter and front-mounted pressure gauge optional
- Measures 21"W x 16" D x 28" H and weighs 125 lbs.
- Click here for the PDF Bench Air-Press data sheet.
|
