Lead Cutters

D-2C Cutter for Through-hole parts

Precision shear cuts DIPs up to 2" long DIP tooling plate cuts devices on .300", .400" or .900" centers, #D-2CTD Universal tooling plate for various through-hole devices, #D-2CP Custom tooling plates are available for connectors or other devices Optional model can process larger packages with its 4" x 4" working area Angled shear has two sides that can be easily rotated for prolonged life Click here for schematics.

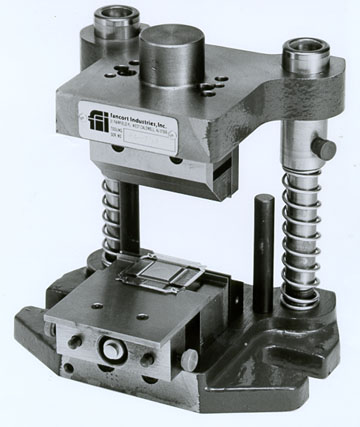

F-3A Adjustable Cutter for Flatpacks

Trim leads from .100" min to .750" max Micrometer-controlled trim length Process packages up to 3" long Leads clamped during trimming Fits Fancort 3300 hand press or 5000L air press Moveable nest to hold packages during trimming Click here for the PDF Lead Cutters data sheet.

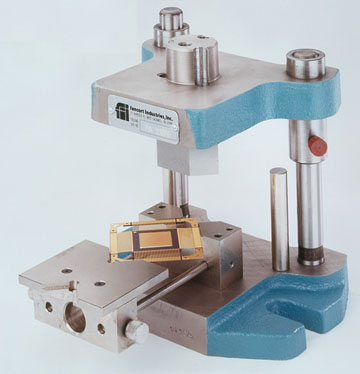

F-3C/A Adjustable Corner Cutter for Flatpacks

Trim the metal corners on packages with nonconductive tie bars Trims any size quadpack up to 2.5" square Clamps the leads to eliminate stress Easy to set up Fits Fancort 3300 hand press or 5000L air press Click here for the PDF Lead Cutters data sheet.

Dedicated Lead Cutters

Available for two- or four-sided packages of any size Shear action to reduce stress Lifter built-in for easy part removal Fits Fancort hand or air presses
