Prescored Boards

Prescored Boards

Click here for the PDF version of our Depaneling Systems Brochure. (2MB)
Click here for the PDF version of our Depaneling Equipment Selection Guide.

Model NTG Low to moderate volume

Separate boards with this simple ergonomic machine
Manual and motorized models available
Easy adjustment and positive locking of guides and knives for different thickness boards
Motorized model has infinitely adjustable speeds, forward and reverse
Maximum board length of 16"
Automatic parallel adjustment of blades
Manual Model NTG-4, Motorized Model NTG-4A

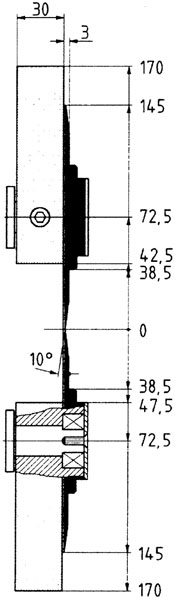

Click here for a schematic drawing of the NTG-4

Model VPD3-1M Moderate volume

Round knife, manually cutting against lower linear knife, for reduced stress
Separates boards with components 1mm from the score line
Separate board with components overlapping bottom score line by modifying the linear knife.
Wide table on either side of the linear knife measures 6.25" X 20"
Table can be raised or lowered, and angeled on one or both sides
Easy to set the round knife for different thickness boards; positive locking mechanism
Flat on one side of knives allows for separation of boards with components along one side of score line.
Sliding mechanical stops for setting the cut length, up to 18" max, optional model separates panels to 24" max, Model No. VPD3-1M/600.
Guides in front of the moveable knife for operator safety
Overall dimensions of 31"L x 17"W x 19"H
Heavy frame for stability with enamel beige paint
Click here to view a close up.

Model VPD3-1 Higher volume

Round knife, motor driven against lower linear knife, for reduced stress
Programmable cut length with two simple forward and reverse buttons and digital display: optional model separates panels to 24" max, Model VPD3-1/600.
Seperates boards with components 2mm from the score line
Flat on one side of knives allows for separation of boards with components along one side of score line.
Wide table on either side of the linear knife measures 6.25" X 20"
Table can be raised or lowered, and angeled on one or both sides
Easy to set the round knife for different thickness boards; positive locking mechanism
Optional take-away conveyor can be added in place of one table
Foot switch operated, and light curtain for operator safety
Overall dimensions of 31"L x 18"W x 22"H
Heavy frame for stability with enamel beige paint

Model VPD5 High volume

Wedge-shaped knives shear the entire groove without bending or tension
Separates boards up to 2.5mm thick
Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors.
Operator foolproof! Panels cannot be inserted into the knives except on the score line.
Pneumatically driven
Handles high components up to 1"
Bow waves that can occur with round knives are avoided
Easy adjusting of distance between knives
Two models, VPD5-250 cuts up to 10:; VPD5-330 cuts up to 13.2"
Click here to view a close up.

Routed Boards

Model NTR-1 and NTR-2 Low volume

NTR-1

NTR-2

Two models cut single tabs up to 5mm long, max thickness of 2.00mm (.080") for the NTR-1 or 3.125mm (.125") for the NTR-2
A2 tool steel knives for thousands of cuts
Pneumatically operated with safety foot switch
Cut round boards with min. radius of 3.5mm
Scrap collected in an enclosed container
Measures 4" x 4" x 7.5"
Machine P/N NTR-1; knife P/N NTR-1K-X. Specify
    knife thickness (X) when ordering, eg. NTR-1K-2mm.
    Allow .125mm clearance between knife and routed slot.
    Same ordering information for NTR-2 knife.
Double sided knives are available for the NTR-2. P/N NTR-2KT

Model NTP-1 Low volume, hard to reach tabs

Ideal for removing tabs in hard to reach areas, eg. angles, curves, very small boards, etc.
Removes tabs without waste, and with minimal stress
Two opposing knives run on ultraprecision linear ball bearing guides
Ideal for doube sided boards
Two moveable locating pins locate the tab; pins are slightly smaller than the width of the routed slot
Pneumatic with footswitch operation
Rugged construction on a C-frame with torsion resistance
Comes with one standard knife - width is 10mm; P/N NTP-1K
Comes with two standard pins - diameter is 2.5mm
Method of Operation

Custom knives P/N NTP-1K (specify width)
Custom pins P/N NTP-CP (specify diameter)

Model PS-MR-1 Moderate volume

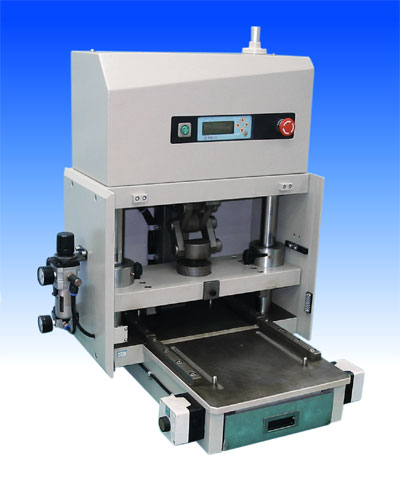

Punch Press System High volume

Pneumatic press with semi-automatic sliding base that holds the lower die for ease of loading the panel and unloading the separated boards
The operator activates the system allowing the bottom die to slide into place
Safety interlock prevents the press from cycling unless the bottom die is in position
After cycling, the base slides out for unloading of finished boards
Three different models with power ranging from 4 to 8 tons
Working areas range from 160mm x 220mm on the smallest model, to 320mm x 480mm on the largest one
Punch Press System brochure

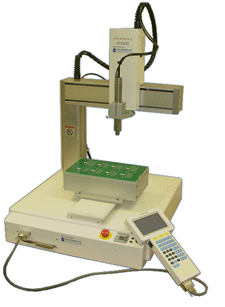

Programmable Routers High Volume, No Stress

Key Features:

Programming using a user-friendly teaching pendant with large, 7-line LCD screen. No need to learn complicated programming languages.
Alternate programming with JR Points PC software that permits programming from .dfx files. Store an infinite number of programs and download as needed, or make quick adjustments as needed.
Vacuum system sits under the board support fixture for removing debris and dust.
Ionizing air nozzle on the spindle motor reduces static in the debris area
Four models availableup to a work area of 510mm x 510mm x 50mm
Store up to 100 programs or 6000 work points on the memory card resident in the router.
For in-line applications, a SCARA routing system is available
