THE ULTIMATE SOLUTION FOR LEAD FREE SOLDERING!

Soldering SuperStation for Lead Free

Lead Free

Lead-free Applicable TEMPERATURE CONTROLLED

SOLDERING STATION

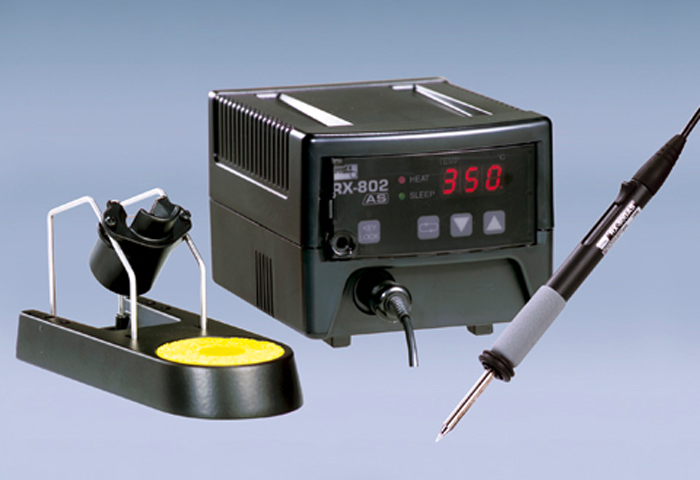

Extra long life, fast recovery time, lead-free soldering iron with built-in high output heater (72W) RX-802AS

RX-802AS

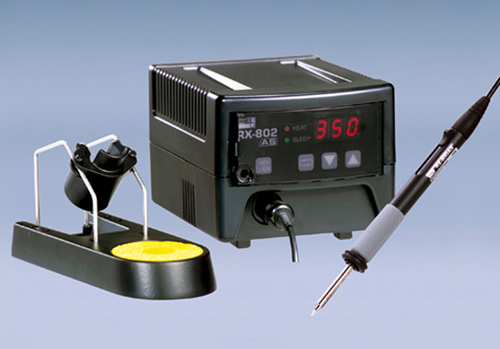

RX-802AS Lead-free Applicable TEMPERATURE CONTROLLED SOLDERING STATION
Comes equipped with standard soldering tip and special stand





Excellent Heat Recovery (Patent Pending)

Compact, high output heater (72W), integrated into tip, controlled by high sensitivity sensor. Even during continuous operation the tip temperature remains stable with minimal heat loss. Perfect for working with high melting point lead-free solders.

New Ergonomic Design Hand-piece (Patent Pending)

Comfortable usability, easy handling, soft power cord. Shorter distance from grip to tip! Perfect for micro soldering.

Fastest in its class (Patent Pending)

Reaches Set Temperature in 6 seconds!

Easy-change tip (Patent Pending)

Slide-change tip. No tools or heat resistant pads needed.

Thick iron alloy coating for lead-free soldering

Complete lineup of tips with thick iron alloy coating to prevent erosion.

Anti-oxidation tip (Patent Pending)

New addition! Fine solder coated grooves protect tip from atmospheric oxidation.

Low Heat Hand-piece (Patent Pending)

Completely new design thermal insulation hand-piece construction reduces heat transfer to the grip. Lowest possible hand-piece heat in its class. (Based on goot® measurement methods)

Lower prices!

Built-in heater replacement tips now available at surprisingly low cost!

Keypad lock function (Patent Pending)

Tamper-proof keypad lock. No need for tools to secure the keypad cover as on previous models.

Sleep function (Patent Pending)

Automatic switch off when inactive for a preset period of time, preventing any overheating.

Calibration function (Patent Pending)

Differences between tip thermometer and displayed temperature are easily corrected by inputting the offset value.

Easy maintenance

Maintenance and tip replacement is simple with integrated tip, sensor and heater.

Reliable traceability

We can provide periodic calibration of the unit if required and issue certification necessary for various purposes (Fees apply).

Technical Specification

Model number RX-802AS
Input Voltage 110—130, 220—240V AC
Power Consumption 80W
Soldering Unit Voltage / Consumption 24V AC / 70W
Temp. Setting Range Ambient Temp.—450°C
Temperature Display Digital
Dimensions Soldering Iron 158mm (Excluding Cord Armor)
Control Unit 146(L) X 115(W) X 98(H)mm
Weight Soldering Iron Approx. 25g (Excluding Cord)
Control Unit Approx. 1.8kg (Excluding Cord)
Leak Voltage Less than 2mV
Ground Resistance Less than 1Ω
Control Unit to Soldering Iron Cord Length 1.2m
Power Cord Length 1.3m (3 core cable, ground plug)
Accessories Soldering Iron Stand, Standard Soldering Tip

Replacement Tip

How to change the Soldering Iron Tip

To remove the soldering iron tip, slide the lever in the direction of the arrow. The tip will then protrude from the hand-piece and can be removed easily by holding and pulling the plastic body of the integrated tip/heater.

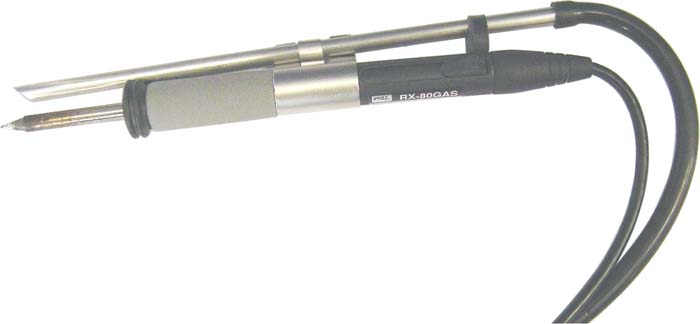

RX-EA1 Fume Extraction Attachment for RX-80GAS Iron

RX-EA1 Fume extraction Attachment has been developed to remove toxic fume from tip area during soldering. The attachment consists of the extraction stainless steel tube, front modified ring and flexible tube with 5 holders to attach soldering wire cord. It takes only 2 minutes to attach RX-EA1 to the iron. The tube ID is 5 mm to make the extraction effective with common tip fume extraction units like XTRACTOR XF-10 ro XF-VT2 High Vacuum Units.

ST-40 Tip Cleaner

ST-40 The cleaner itself is made from low-abrasive brass shavings. No water is required to use the tip cleaner, although it cleans the tip better than conventional sponges and reduces the temperature-loss that occurs when using a wetted sponge. The container is made of heat-resistant and slip-proof silicon rubber that is safe for both the soldering iron and the user.
ST-40BW - Replacement metal wool balls
BS-2 Tip Cleaner/Refresher

More documents about RX-802AS:

24-May-2005

Lead-free solders vs. Conventional Eutectic solders

Solders Solid-phase temperature (°C) Liquid-phase temperature (°C)
Conventional Eutectic Solder
Sn 60% Pb 40% 183 190
Sn 63% PB 37% 183 184
Lead-free solder
Sn-Ag 3.5 - Cu 0.7 217 218
Sn-Ag 2.5 - Cu 0.5 - Bi 1.0 214 223
Difference between Temperatures 34 34

Using Lead-free solder

Lead-free solder's melting point is 34 degrees higher than conventional solder.

Extra heat is required to bring lead-free solder to liquid phase.

Effect on soldering iron tips - shorter tip life.

Points to Note when using lead-free solder

Use of lowest possible temperatures to minimizing the tip damage

However, when using lower operating temperatures with lead-free solder which has a higher melting point, operational efficiency will decrease.

Keeping tip temperature stable during work to increase productivity and improve solder joint reliability

However, continuous use of a soldering iron over long periods brings the temperature of the tip down, and effects the quality of the finished solder joint.

Practical Points: Key elements for longer tip life

3.1 Tip temperature

Tips used at 320 degree-Celsius last three times longer than that of tips used at 380 degree-Celsius-tips.

3.2 Solder Type

For any normal solder joint, three times more Lead-free solder is required compared to eutectic solder - therefore choice and price of solder is important.

3.3 Amount of solder used in each solder joint

Cored thread solder wire has flux in the core of the solder wire. The types of flux used in current lead-free solders is especially ACTIVE in order to assist solder wettability.

Therefore, using MORE of a solder wire with MORE active flux, commensurately decreases tip life.

Merits of goot RX-802AS

  1. Superior heat recovery
    Built-in high-powered heater (72W) capable of delivering enough power to maintain stable tip temperatures, even under different soldering work conditions. Minimal heat loss means the user doesn't have to set the station at a higher set temperature. Capable of being set at lower temperatures, therefore decreasing tip degeneration when soldering with high melting point lead-free solder.

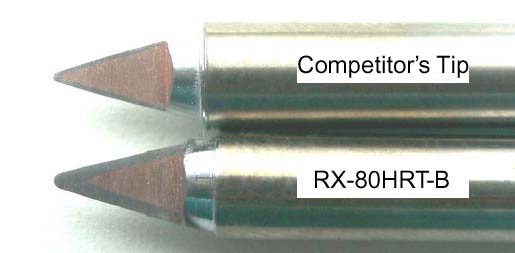

  2. Thick iron coating
    All RX-80HRT tips have a thick iron coating. For example, the thickness of the B-type iron coating is 0.5 mm or above, while the thickness of tips in competitor irons are between 0.25mm and 0.3mm. More thickness assures longer tip life. The following test report backs up this fact.



Result of tips life test

300°C 350°C 400°C 450°C
RX-80HRT-B  141372 66,780 9,648 Japan Domestic Retail Price: 1400JPN
Competitor’s Tip 35,208 Japan Domestic Retail Price: 1440JPN

While continuously supplying lead-free solder to the tip, measured time taken till a hole appeared in the tip surface.

Solder used : Senjyu M705 dia. 1.0

Amount of Solder used : 5mm of solder supplied per interval, 5 seconds intervals

  1. Fastest in its class
    Reaches tip temperature in 6 seconds. (Equivalent products amongst competitors take an average of 15 seconds)
  2. Superior sleep function (Patented)
    Automatic switch off when inactive for a preset period of time. This is easier on the tips than switching the unit OFF. This unit's sleep function can be programmed to activate at preferred inactive time periods, or can be programmed to go into sleep mode at a certain drop in tip temperature, therefore applicable to a variety of work conditions. (Competitor stations have one set mode only.) Further, before sleep mode activates, the sleep lamp flashes, warning the user that the the unit is about to enter sleep mode.
  3. Light and compact handpiece
    The soldering iron weighs 27g, the lightest in the 70W station class. (Competitor models weigh 30g.) The soldering unit cord is designed with a thin and very pliable cable with the diameter 4.0. (Competitor cable diameter - 4.6.)

    RX-802AS Handpiece compared to competitors:
    It is neglected point but, the biggest selling point of the RX-802AS is that the whole iron length of the handpiece is shorter than competitor irons. It is not enough that the distance between tip and handpiece be short. Pulling force from the cable is applied to the tip evertime the iron is moved. This has adverse effects for operation. Lessening this force is important. Shorter iron length makes this force smaller.
  4. Easy-change tip
    One-Step-Slide tip can be changed while the tips remain hot.

    RX-802AS Replacement tips compared to competitors:
    6.1. No tools needed for changing the tip, also no heat-resistance pads!

    6.2. Tips can be stored in the RX-802AS soldering iron stand which comes with the unit. The user must purchase separately with some competitor stations

    6.3. The tips are designed NOT to come in contact with the surface when placed on a workbench.
  5. Standard tip included with the station
    Standard tip is included with this unit. This is not offered with competitor’s stations.
  |  Print page



Order Now Part Number Description Price
USD
Super-Iron Lead Free RX-802AS
RX-802AS /12 Lead-free Applicable Temperature Controlled Super-Soldering Station, Superior over competition on 12 counts , 110-130V AC
Qty1 - 910 +
Price$369.90$319.90
RX-802AS /22 Lead-free Applicable Temperature Controlled Super-Soldering Station, Superior over competition on 12 counts , 220-240V AC
Qty1 - 910 +
Price$369.90$329.00
Optional accessories
BS-2 Tip Cleaner/Refresher
Qty1 +
Price$7.90
RX-80GAS-without tip RX-802 Replacement Iron Handpiece without the cartridge tip
Qty1 +
Price$79.90
RX-EA1 Fume Extraction Attachment for RX-80GAS Iron
Qty1 - 910 - 99100 +
Price$34.90$31.90$27.90
ST-40 Dry Tip Cleaner w/Metal Coil
Qty1 +
Price$9.75
ST-40BW Replacement metal wool balls for ST-40
Qty1 - 4950 +
Price$5.49$4.99
ST-53SP-5 Replacement Sponge ST-53-5 - 5 pcs
Qty1 +
Price$11.99

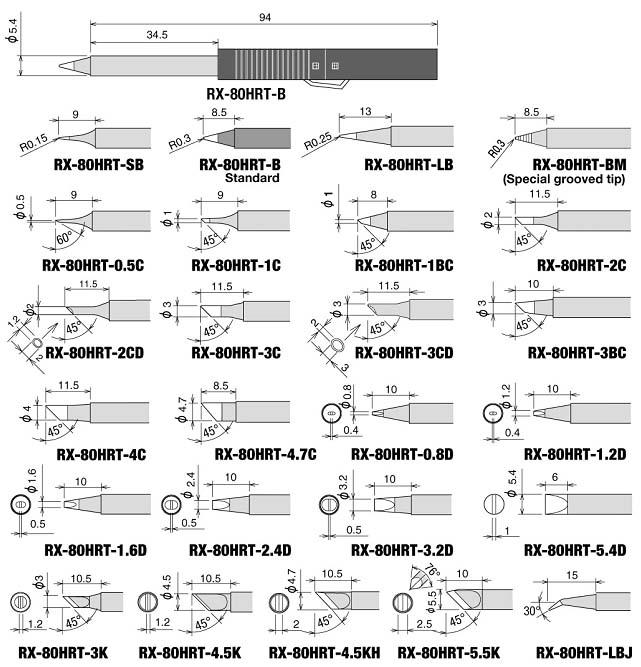

RX-80HRT Tips
RX-80HRT-SB Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-B Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-LB Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-BM Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-0.5C Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-1C Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-1BC Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-2C Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-2CD Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-3C Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-3CD Replacement Tip
Qty1 +
Price$19.50
RX-80HRT-3BC Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-4C Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-4.7C Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-0.8D Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-1.2D Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-1.6D Replacement Tip
Qty1 +
Price$18.75
RX-80HRT-2.4D Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-3.2D Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-5.4D Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-3K Replacement Tip
Qty1 +
Price$15.75
RX-80HRT-4.5K Replacement Tip
Qty1 +
Price$20.40
RX-80HRT-4.5KH Replacement Tip
Qty1 +
Price$21.90
RX-80HRT-5.5K Replacement Tip
Qty1 +
Price$22.40
RX-80HRT-LBJ Replacement Tip
Qty1 +
Price$15.75
