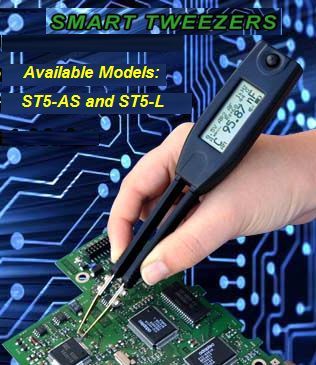

SMT SMART TWEEZERS ST5-AS
Professional Highest-Precision R-L-C Meter

SMD Pre-Calibrated Components Identifier in a Set of Tweezers

Smart Tweezers
  • New Field Replaceable Tips
  • Dual Graphics Displays
  • Analog Bar Graph
  • Fully automatic measurement of Capacitance, Inductance, Resistance, Voltage, Continuity, Diode Polarity
  • Auto range: Meter automatically selects best range
  • Continuity / Open test: Beeper sounds for resistance readings below threshold, or to indicate a momentary open circuit
  • Trace Graph: Oscilloscope-like display for AC voltage measurement.
  • Convenient one-hand operation

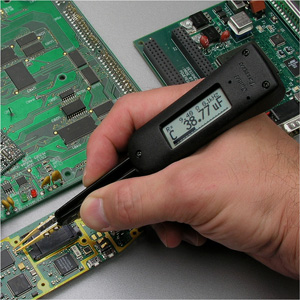

Smart Tweezers is an R-L-C meter in a set of tweezers. Smart Tweezers features a unique patented mechanical and electronic design that incorporates a built-in direct precision SMD probe designed for component evaluation on the production line, component impedance testing and sorting of SMD components. Smart Tweezers dramatically cuts the time necessary to troubleshoot and debug a complex PCB making process of locating of a faulty component a breeze.



The integrated SMD probe and graphic display, combined with automatic recognition of measurement modes (R, C, and L) and the range of measurement, allow the operator to focus on the component under test. As a result, testing, sorting and evaluation of components become more efficient and cost effective.

Inductance, Capacitance, Resistance

The primary display shows the present reading. The secondary display (on top) shows the present reading of additional parameters or measurement conditions when the primary display shows some other feature (L, C). When multiple features present, the secondary display shows one of the values. The Bar Graph provides an analog indication of the measured input.

Ergonomic Design and Convenient Controls

Smart Tweezers features a JOG DIAL button to choose modifiers for a selected function or change the setting. Rotate the JOG DIAL button to choose from a list of functions, then press to activate this function and see it appear on the display.

ST5-AS

SMT SmartTweezers ST5-AS Technical Specifications:

AC test mode Test frequency 1 kHz, 10 kHz, 120Hz, 100 Hz
Test frequency accuracy 50 PPM (0.005%)
Test signal level 0.25/0.5/1.0 +/- 5% VRMS Sine wave
Source impedance 62.5Ω/1kΩ/16kΩ +/- 1%

Measurement Range

Parameter Measurement Range Basic Measurement Accuracy*
Resistance* 5 Ω to 999 kΩ
0.1 to 9.9 MΩ
< 0.2%
< 1.0%
Capacitance* 10 pF to 100 μF
0.5 pF to 999 μF
< 0.5%
< 1.0%
Q 0.001 to 100
Inductance* 10 μH to 99 mH
0.5 μH to 999 mH
< 0.5%
< 1.0%
D 0.001 to 10

* at optimum test frequencies, ranges, without calibration offset. ** required DC voltage offset calibration

Auto mode Read-out Dominant parameter
Equivalent circuit diagram Serial/Parallel for C/R Serial for L/R
Manual Mode Read-out Dominant or secondary parameter
Equivalent circuit diagram Parallel or serial
Measurement update rate up to 4 measurements per second
Battery Type 3.7V LiPO rechargeable 150mAH
Typical charge time 2.5 hours, current <100mA
Calibration Recommended interval 1 year. NIST traceable calibration

Physical Dimensions and Weight

Size 14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in)
Weight 53 grams (0.11 lb)

Operating and Storage Conditions

Operating temperature 0°C to 50°C
Storage temperature -40°C to 70°C
Relative Humidity 0 % to 90 % (0 °C to 35 °C)
Altitude Operating 0 – 2000 meters
EMC According to CE regulation 89/336, Emission according FCC15 Class B

ACCURACY SPECIFICATION for Resistance, Capacitance and Inductance Ranges

Parameter Measurement Range Basic Measurement Accuracy*
Resistance 1Ω to 999 kΩ < 0.2%
0.1 to 9.9 MΩ < 0.5%
Capacitance 10 pF to 100 μF < 0.5%
0.5 pF to 999 μF < 1.0%
Inductance 10 μH to 99 mH < 0.5%
0.5 μH to 999 mH < 1.0%

* at optimum test frequency, ranges, without calibration offset

Typical offset

Resistance ≤ 25 mΩ
Capacitance 0.65 pF
Inductance 0.1 uH

Offset value should be subtracted from measurement result for small value components (R < 10Ω, C < 100 pF, L < 10 μH).

Parameter Measurement Range Test frequency
Resistance < 9.9 MΩ 1 kHz
Capacitance < 9999 pF 10 kHz
10000 pF to 1 μF 1 kHz
> 1 uF 100 Hz
Inductance 0.5 μH to 99 μH 10 kHz
100 μH 99 mH 1 kHz
> 100 mH 100 Hz

Maximum measurement ranges

Resistance R 0.05 Ω to 9.9 MΩ
Capacitance C 0.5 pF to 999 μF
Inductance L 0.5 μH to 999 mH
Quality factor Q 0.001 to 1000 *
Dissipation factor D 0.001 to 1000 *

Maximum resolution

Impedance/Resistance Z or RAC 10 mΩ
Capacitance C 0.1 pF
Inductance L 0.1 μH
Quality factor Q 0.001
Dissipation factor D 0.001

* indication of the parameter not implemented in some versions

www.smt-tool.com www.intelligenttweezers.com
  |  Print page



Order Now Part Number Description Price
USD
Specialty Meters and Testers
ST5-S SMT SmartTweezers/Professional Highest Precision LCR Meter with accuracies from 0.2% to 0.5% (includes a carrying case). Replaces larger ST5-AS which will not be produced and supported any longer.
Qty1 - 45 +
Price$329.90$319.90
ST5L SMT SmartTweezers/Professional Highest Precision LCR Meter Economy Model (includes charger and carrying case)
<...more info
Qty1 +
Price$299.90
ST5-AS SMT SmartTweezers/Professional Highest Precision LCR Meter with accuracies from 0.2% to 0.5% (includes charger and carrying case)
<...more info
Qty1 +
Price$319.00
LCR-Reader Low Cost Smart Tweezers Precision LCR Meter Smart Tweezers Economy Model
Qty1 - 45 +
Price$159.90$154.90
ST-R SMT Smart Tweezers Rechargeable with Charger - few units left
Qty1 +
Price$245.90
MS8910 SMT Tweezers Low Cost Bomir/Mastech RC Tester. Excellent very low cost tool for sorting AND IDENTIFYING SMD COMPONENTS
Qty1 +
Price$39.90

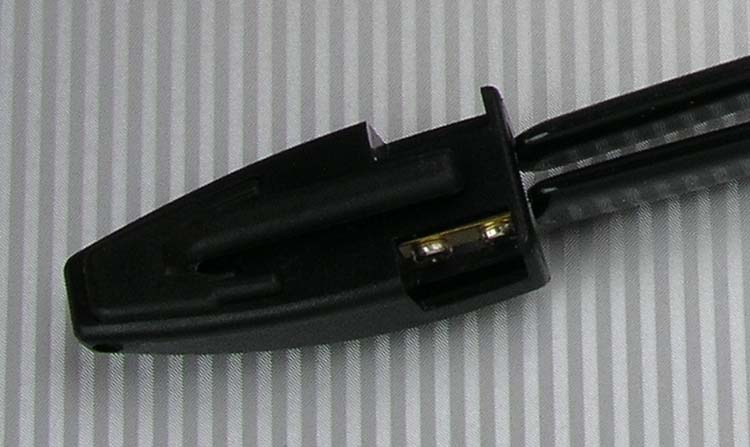

ST-AS-Pocket Spare pocket clip
Qty1 +
Price$14.90

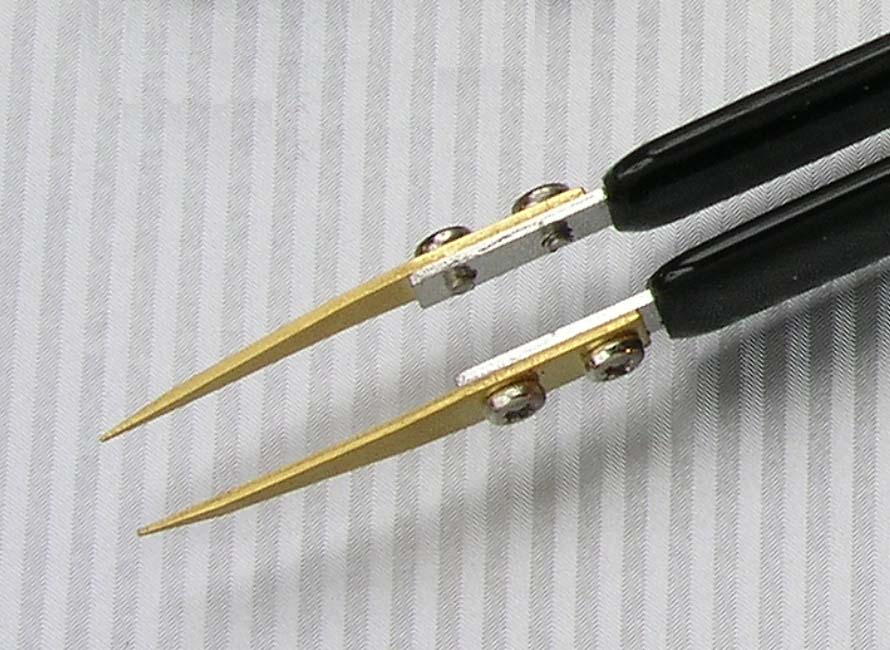

ST-AS-Tips Spare regular tweezers tips (pairs)
Qty1 +
Price$37.90
ST-CH Kit SMT Smart Tweezers Charger Assembly Kit
Qty1 +
Price$109.99
ST-RB pack Rechargable Batteries Pack
Qty1 +
Price$24.90
ST-CHB Charge Receiver Board
Qty1 +
Price$39.90

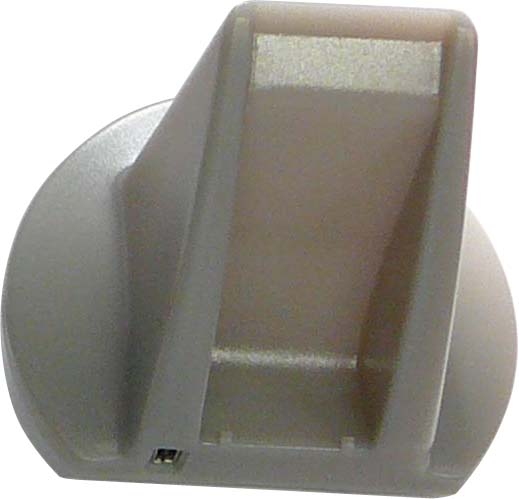

ST-CH Base ST-R Charge Base
