The most advanced and powerful pre-heater for SMT REWORK and REPAIR offering full Process Control, increased rework speed, board protection and operator’s convenience.
X-1001 Units are extremely accurate, have user adjustable off-set
and unique acceleration mode to speed-up initial warm-up from room
temperature.
Built-in "K" thermocouple type temperature meter
provides on board means for verification of actual rework process
temperatures at the point selected by the user.
The X-1000 Series Pre-heaters were designed to reduce the
workspace required for SMT Rework and Repair. This design emphasizes
on the appropriate process control for Rework and Repair. Pre-heater
Units are microprocessor controlled to maintain accuracy and to
extend heating element life.
Use of pre-heaters provides protection of the boards (and the
vias inside them) against sudden thermal shock to prevent difficult
to detect damages as well as components themselves, which are
already connected to the board. Bottom convection pre-heat of the
large area of the boards guarantees even and gradual thermal
expansion. Pre-heated board to e.g. 130 degrees C, needs much less
thermal energy to de-solder or re-solder a component on the board.
To de-solder the component only 53 degrees C are needed (183 deg.,
which is melting temperature of the solder minus 130 deg. which the
board pre-heated to by the bottom pre-heater). To achieve this
relatively low temperature differential, lower thermal capacity and
lower air temperature tool can be used which guarantees safer for
the board and the components rework process. This lower temperature
differential required to obtain solder melting point makes the
rework process much faster than the one, which is done when using
conventional rework tools.
Standard board holder XU-1 or XU-1S allows you to mount 12"
(305mm) wide x not limited in length boards. Other, optional board
holders are available to accommodate boards up to 21.5" wide.
Available models are: XU-2 and XU-3. The powerful Pre-heater will
also allow you to rework high mass boards, which have through hole
components like connectors etc. (you must use proper pre-heat
temperature which is lower than the maximum allowable value for the
plastic from which your connectors are made).
 |
Part Number |
Description |
Price
USD |

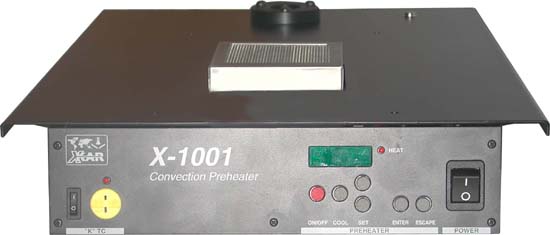

| X-1001 The most advanced and powerful pre-heater for SMT REWORK and REPAIR offering full Process Control, increased rework speed, board protection and operator’s convenience. |
|
|
X-1001-115V |
Digital, SMT High Power, Large Area Under board Pre-heater , 110-120V AC |
|
|
|
X-1001-230V |
Digital, SMT High Power, Large Area Under board Pre-heater , 220-240V AC |
|
|
|
X-1001 De-Lux-115V |
Digital SMT High Power Under board Preheater with ESD Fiberglass Top Plate , 110-120V AC |
|
|
|
X-1001 De-Lux-230V |
Digital SMT High Power Under board Preheater with ESD Fiberglass Top Plate , 220-240V AC |
|
|
|
X-1001S-115V |
Digital SMT High Power, Small Area, 500W Underboard Preheater , 110-120V AC |
|
|
|
X-1001S De-Lux-115V |
SMT High Power, Small Area, 500W Underboard Preheater with ESD Fiberglass Top Plate , 110-120V AC |
|
|
|
X-1001S De-Lux-230V |
SMT High Power, Small Area, 500W Underboard Preheater with ESD Fiberglass Top Plate , 220-240V AC |
|
| X-1000 The most advanced and powerful pre-heater for SMT REWORK and REPAIR offering full Process Control, increased rework speed, board protection and operator’s convenience. |
|
|
X-1000-115V |
SMT High Power, Large Area Under board Preheater , 110-120V AC |
|
|
|
X-1000-230V |
SMT High Power, Large Area Under board Preheater , 220-240V AC |
|
|
|
X-1000 De-Lux-115V |
SMT High Power, Large Area Under board Preheater with ESD Fiberglass Top Plates , 110-120V AC |
|
|
|
X-1000 De-Lux-230V |
SMT High Power, Large Area Under board Preheater with ESD Fiberglass Top Plates , 220-240V AC |
|
|
|
X-1000S-115V |
SMT High Power, Small Area, 500W Underboard Preheater , 110-120V AC |
|
|
|
X-1000S-230V |
SMT High Power, Small Area, 500W Underboard Preheater , 220-240V AC |
|
|
|
X-1000S De-Lux-115V |
SMT High Power, Small Area, 500W Underboard Preheater with ESD Fiberglass Top Plate , 110-120V AC |
|
|
|
X-1000S De-Lux-230V |
SMT High Power, Small Area, 500W Underboard Preheater with ESD Fiberglass Top Plate , 220-240V AC |
|
| Optional Equipment |
|
|
XOPR-1 |

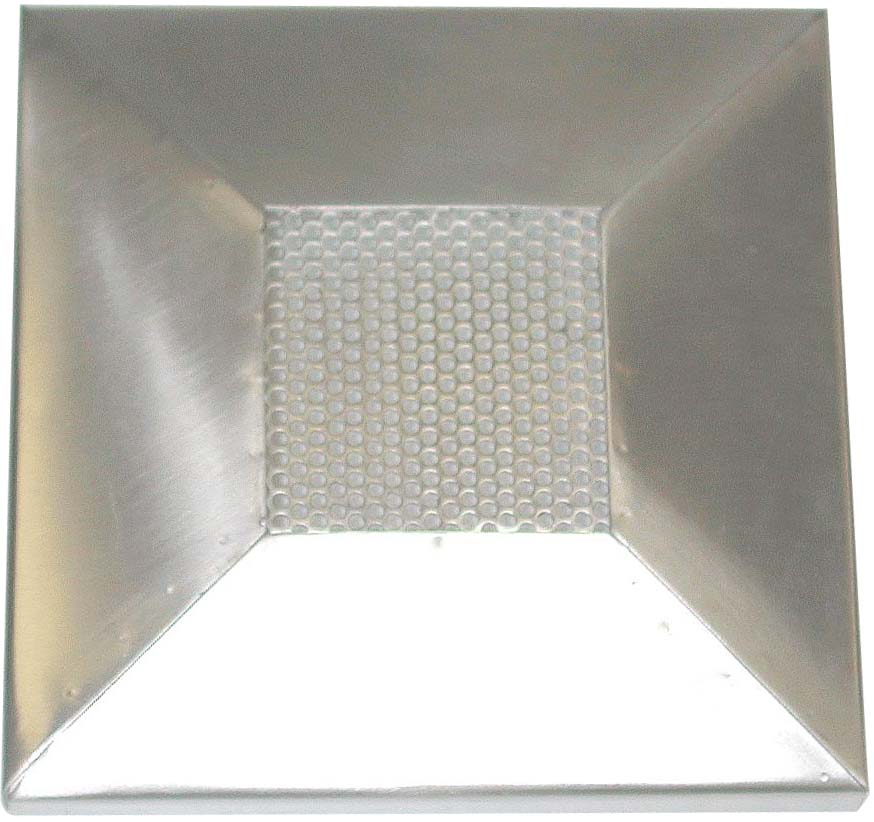

Bottom Heater Stainless Steel Opening Reducer |
|
|
|
XU-5 |
Open Frame Board Holder with X-Y micrometer positioning of PCB for fine adjustment. |
|
|
|
XU-1S |
Board Holder with small irregular board support kit |
|
|
|
XU-Mini |
Irregular Shape PCB Holder (eg. Cellular Phone) |
|
|
|
XCBH-1 |
Board Holder for Cellular Phone Boards |
| Qty |
1 - 2 |
3 - 19 |
20 + |
| Price |
$139.90 |
$119.90 |
$109.90 |
|
|
|
XU-1 |
Board Holder, 260 mm x open (12 inches x open end) |
|
|
|
XU-2 |
Board Holder, 320 mm x open (14 inches x open end) |
|
|
|
XU-3 |
Board Holder, 540 mm x open (21.2 inches x open end) |
|
|
|
XK-1 |
Tool Holders with up/down Z-axis movement (right handed knob). |
|
|
|
XK-2 |
Tool Holder with up/down Z-axis movement (dual knob, for left and right handed operators). |
|
|
|
XK-3 |
Tool Holder with precise rotation and up/down Z-axis movement (dual knob, for left and right handed operators). |
|
|
|
XK-4 |
Tool Holder with fine X-Y positioning, rotation and up/down Z-axis movement (dual knob, for left and right handed operators). |
|
|
|
XCP-01 |
Semi-automatic Unique Vacuum Pick-up Tool |
|
|
|
X-WICK |
No Clean Solder Wick 2.6 mm x 2 m in re-usable dispenser |
|
|
|
MP-10K |
Hand Dispenser Kit for Fluxes and Pastes |
|
X-1001
Series Digital, High Power board Pre-heaters
