Antistatic Summer Clothing

Silver Conductive Epoxy

Forms high strength conductive bonds

This two part silver epoxy offers high electrical conductivity and strong conductive bonding. Use in place of traditional soldering on heat sensitive components. Good for repairing defective traces and creating jumpers on boards. Can be used as an effective heat sink adhesive. This Conductive Silver Epoxy comes in two 7g syringes.

Frequently Asked Questions on this product

Q. Can I solder to Silver Conductive Epoxy?
A. No, Silver Conductive Epoxy has the temperature contraints of an epoxy and cannot be soldered to. Soldering to this product will cause it to melt.

Q. My 8331 product has a small discoloration. Is this a problem?
A. The discoloration is not a problem and will not affect the adhesive nor the conductive properties.

 Specifications

Specification Test Method Result
Minimum operating temp.   -30 °C (-22 °F )
Maximum operating temp.   90 °C (194 °F )
Cure time @ 24°C (75°F)   4 hours
Cure time @ 65°C (150°F)   10 minutes
Working time @ 22°C   10 minutes
Volume resistivity @ 25°C MIK-STD-883E Notice
3, method 5011.4,
paragraphs 3.5.8,
3.8.11.1 (Covered
Under A2LA Accreditation)
0.38 ohm · cm
Tensile strength ASTM-D-638-02A 911 psi
Elongation ASTM-D-638-02A 0.3 %
Compressive Strength ASTM-D-695-02A 1100 psi
Flexural Strength ASTM-D-790-03 2,500 psi
Shear Strength ASTM-D-732-02 234 psi
Cantilever Beam (IZOD) Impact ASTM-D-256-02 E1 0.39 ft lb ft / in
Thermal Expansion ASTM-E-831-03 79.3 mm/mm°C



Part Number Mfr. Part # Sizes Available Description

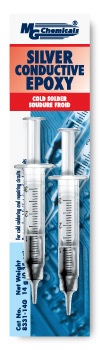

MG-8331-14G 8331-14G 14g (0.35 oz) Two 7g syringes
3ml each
Quick Links

MSDS Part A
MSDS Part B

Silver Conductive Epoxy

  |  Print page



Order Now Part Number Description Price
USD
MG-8331-14G EPOXY - ELECTRICALLY CONDUCTIVE, SILVER (RATIO 1:1), SYRINGES, 14 grams
Qty1 +
Price$42.95
  MG-8331-454G EPOXY - ELECTRICALLY CONDUCTIVE, SILVER (RATIO 1:1), 1 lb Get quote

Get quote - Special Order. Please e-mail or fax at 570.842.4290 for pricing.
