SMR Surface Mount Resistors

Surface Mount Resistors are best suited for commercial industrial and automotive applications. Chip Resistors are suitable for a wide range of solder processes, and are ideal for high-speed electronic assembly equipment. Chip Resistors body sizes range from 0201 to 2512. Seven-inch reels are standard, but eleven and thirteen inch reels sizes are available. Paper carrier tape is standard for Chip Resistors. In addition, Zero-Ohm Resistors are also available. Zero-Ohm Chip Resistors have a copper wire internally. This creates a short condition. Zero-Ohm Chip Resistors can be used to check for continuity after soldering.

Drawing Part Number Body Size Tape
Width
Tape
Pitch
Quantity
7" Reel
Quantity
Bulk Cassette
(Inches) (mm)
New! »»
0201SMR-PA .02" x 01" 0.5 x 0.25mm 8mm 2mm 10,000 50,000
 Drawing 0402SMR-PA .04" x .02" 1.0 x 0.5mm 8mm 2mm 10,000 80,000
0603SMR-PA .06" x .03" 1.5 x 0.8mm 8mm 4mm 5,000 25,000
0805SMR-PA .08" x .05" 2.0 x 1.27mm 8mm 4mm 5,000 10,000
1206SMR-PA .12" x .06" 3.0 x 1.5mm 8mm 4mm 5,000 5,000
1210SMR-PA .12" x .10" 3.0 x 2.5mm 8mm 4mm 5,000

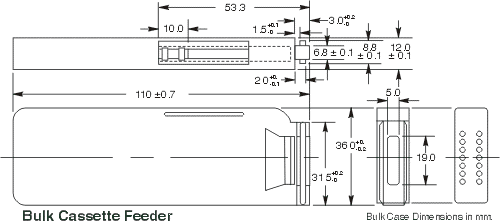

 Bulk Cassette Feeder Drawing
  • Surface mount resistors come packaged on paper carrier tape and 7" reels (larger quantities are available upon request).
  • Plastic carrier tape is non-standard for surface mount resistors.
  • PA = paper tape.
  • Add a “B” to the end of the part number for bulk.
  • Add a “C” to the end of the part number for bulk cassette feeder.
  • The numeric section of the part number refers to the physical body size (in inches) of the component. For example: Part number 0402SMR-PA has a body size of .04" length by .02" width.
