X-FineRework-L Rework System for boards up to 14" wide

X-FineRework-L is a Modular Digital PID Control SMT Rework/Repair System with a Pre-heater. The system allows pre-setting of exact temperature of air stream at the end of Hot Air Tool Nozzle. A unique feature, user-adjustable offset, which compensates for differences in nozzles and air flow settings, achieves the accuracy.
The unique, high performance of the unit is possible due to use of the newest microprocessor technology and thorough programming of all control and monitoring functions combined with PID temperature control of all heaters.

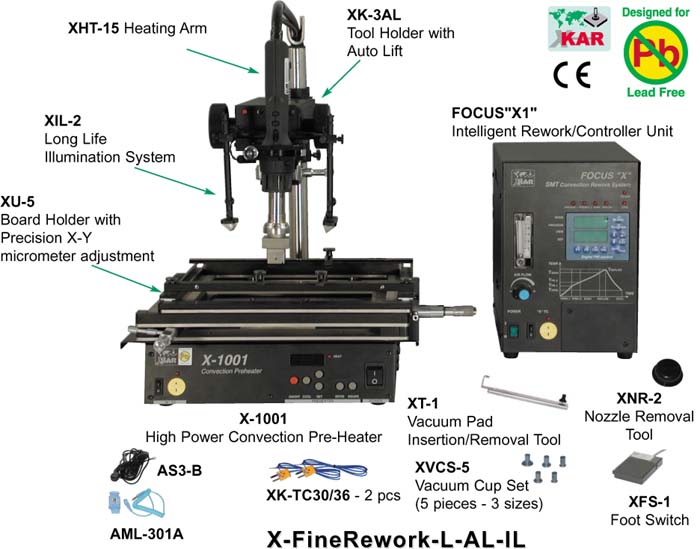

X-FineRework-L-AL-IL

  Features:
  • Profiling capabilities for time/ temperature settings and digital monitoring of the rework process.
    • State of the art microprocessor technology, thorough programming, digital compensation of sensors non-linearity's and heat loss at different temperatures.
    • PID control of all heaters (accuracy and extended heaters' life).
    • User-adjustable offset for air stream temperature at the end of the nozzle.
    • Digital display of settings and actual parameters on a front panel of Focus "X".
  • Repeatability of the process from board to board (digital storage of profiles and settings).
  • Large area board holder with precise micrometer adjustments in X and Y axis, which accommodates boards up to 14" wide
  • Enhanced alignment of a part with pads on a board with precise rotation of a top hot air/gas tool, which is mounted in a fine adjustment rotation stage.
  • Ease of use. Rework process controlled from Focus "X" control panel. Focus "X" can be used separately in hand mode.
  • Large selection of standard, lightweight nozzles. Custom nozzles are available upon request.
  • Fully antistatic. Supplied with ESD grounding wire and a wrist strap.
  • Self contained air and vacuum sources.
  • Solid and strong metal (not plastic) construction guaranteeing long service life.
  • Compatibility with all X-KAR Brand Rework Attachments and Accessories (XIL-2 High Intensity, long life Illumination System, XHT-1P Small Handle Hot Air Tool, XmP-1S Micro Print Head Set, XK-AL Series Holders with Auto Lift at the end of reflow cycle, etc.).
  X-FineRework-L includes:
X-FineRework-L Series
Please Choose base combination, which BEST suites your needs
  1. Programmable, Intelligent SMT Rework/Repair Unit. Patented in US, Japan and Europe
  2. Digital, SMT High Power, Large Area Under board Pre heater
  3. Open Frame Board Holder with X Y micrometer positioning of PCB for boards up to 14" wide
Tool Stand with up/down Z axis movement High Intensity, long life Illumination System
with precise rotation, up/down and Auto Lift with precise rotation, up/down with Auto Lift
What it Contains FOCUS"X1" X-1001 XU-5 XK-3AL XK-3 XK-2AL XK-2 XIL-2
X-FineRework-L-AL-IL X X X X       X
X-FineRework-L-AL X X X X
X-FineRework-L-IL X X X   X     X
X-FineRework-L X X X   X
X-FineRework-L2-AL-IL X X X     X   X
X-FineRework-L2-AL X X X     X
X-FineRework-L2-IL X X X       X X
X-FineRework-L2 X X X       X

All systems additionally include:

  • Nozzle #107 - Nozzle XNB-27x27 for BGA225 Component
  • XCB-1R - Cord connecting Focus "X" with Pre-heater Based Rework System SMT-SerwiCE or Preheaters X-1000.

If you need any other, not listed combination, please contact either the distributor or factory direct at: bokar@bomir.com. We will certainly accommodate you and give you what you really need.

Please note that all X-KAR Subsystems are interchangeable. You will be able to add later any other subsystem if you needed. E.g. Use XK-4 instead of XK-2 or change manual lift for Auto-lift or interchange SMT-ServiCE with X-1001 Pre-heater etc.

High Precision Adjustments (X-Y in the Board Holder and rotation of the Hot Air Tool)

High Precision Adjustments
(X-Y in the Board Holder and rotation of the Hot Air Tool)

Optional and absolutely recommended accessories:

  • XFR-Commander Control Software which brings X-FineRework to another level
  • X485-USB Converter A Converter which allows for connection of  FOCUS "X" and SMT-ServiCE to a PC (Desktop or Laptop) to upgrade Firmware (if needed) and to control and program entire system from a PC.
  Optional Equipment:
  • XIL-2 - High Intensity, long life Illumination System
XIL-2
  • XK-3AL - Tool Holder with Auto Lift. This holder will replace XK-3, and will lift XHT-15 Hot Air Tool with a component upon reflow when connected to Focus"X" or on demand by pressing either a push button on the XK-3AL or XFS-2 foot switch.
XK-3AL - Tool Holder with Auto Lift
  • XFS-2 - Foot Switch for use with either SMT-ServiCE or XK-3AL
  • XHT-1P - Small handle hot air pencil (250W) for Focus "+"
XHT-1P - Small handle hot air pencil (250W) for Focus "+" XHT-1 - Small Handle, High Power Hot Air Tool with Mini Nozzles
